Multix S165 M3

Description

Technical details

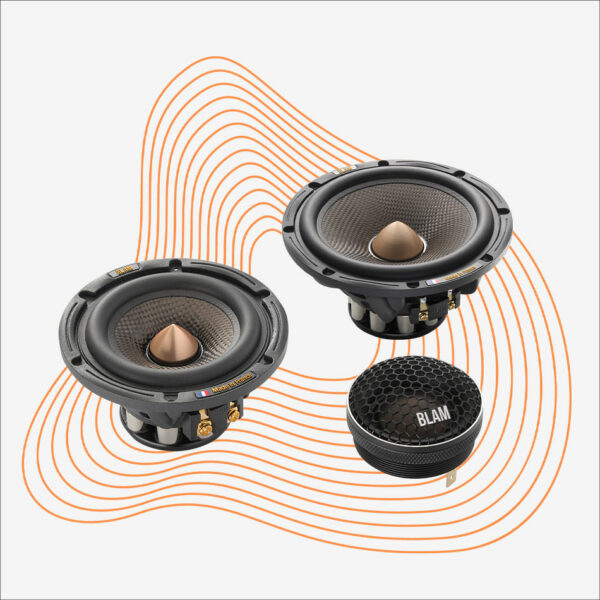

This kit consists of two 165 mm (6.5″) woofers, two 80 mm (3″) midrange drivers, two 25 mm (1″) magnesium dome tweeters and four 6/12 dB/octave external high-pass filters.

Composition

Woofer WS6 – HIGH POWER WOOFER
6-1/2” (165 mm) woofer
Maximum power : 250 W / Nominal power : 125 W
Frequency response: 80 Hz – 6 KHz
Sensitivity: 94 dB – Impedance: 2 Ω

Cast aluminum saladier – Ultra rigid 3K carbon fiber diaphragm – NBR perimeter suspension – Double spider with integrated braids – 38mm coil on fiberglass support – Oversized 10 bar neodymium magnet – Machined aluminum head – Gold plated terminal block – Paired products at +/- 1dB

Medium MS3 – EXTENDED FREQUENCY SPEAKER
3” (80 mm) full range midrange
Maximum power : 100 W / Nominal power : 25 W
Frequency response 120 Hz – 32 KHz
Impedance 3 Ω

Moulded aluminium saladier – Ultra rigid carbon fiber diaphragm – NBR perimeter suspension – Long life spider “Conex” – 38mm coil on fibreglass support – Ultra powerful 8 stick neodymium magnet – Machined aluminium head – Gold plated terminal block – Paired products at +/- 1dB

Tweeter TSM25Mg 45 HR – HIGH RESOLUTION TWEETER
25 mm (1″) pure magnesium dome tweeter
Sensitivity: 89 dB – Impedance: 6 Ω
Frequency response 1.2 KHz – 23 KHz
N38 high efficiency neodymium magnet – Precision machined aluminum faceplate – Transparent protective grille

Multix WOMID AUDIOPHILIC FILTER
Audiophile component filter
High pass filter 6/12 dB per octave
High pass adjustable in frequency from 150 to 500 Hz

BFT01 HIGH QUALITY FILTER
12 dB/octave high-pass filter
Adjustable tweeter level +3 dB, 0 dB or -3 dB

S165 M3 DATA SHEET

1 file(s) 566.83 KB
