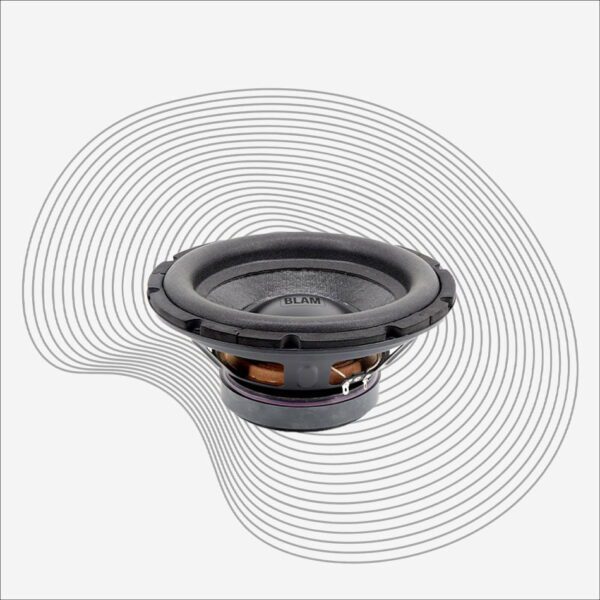

250 MM (10″) DUAL VOICE COIL SUBWOOFER R10dB
Technical specification
Max power 500 W / Nominal power 250 W
Frequency response 39 Hz to 500 Hz
Sensitivity 90.6 dB
Impedance 2 x 2 Ω
Composition
Steel basket
Treated paper membrane
Foam surround
Long life “conex” spider
Double 50 mm voice coil on aluminum former
Magnetic motor 140 mm x 20 mm
Extended T-yoke
Subwoofer optimized for 10 L to 20 L sealed enclosure
Usable as a bass reflex enclosure for high SPL
Accessories included:
User manual
Sealed enclosure recommended
| Internal Volume Vb | F -3 dB | Boost |
| 10 L | 50 Hz | 4.7 dB at 76 Hz |
| 20 L | 42 Hz | 3.1 dB at 66 Hz |
Bass reflex cabinet
| Internal volume | Internal diameter of the vent |
Vent length | Cut-off frequency | Boost |
| 30 L | 10 cm | 30 cm | 39 Hz | 8.5 dB at 63 Hz |
Looking for Blam audio products? Find our resellers and distributors around the world.
Description
250 MM (10″) DUAL VOICE COIL SUBWOOFER R10dB
Technical specification
Max power 500 W / Nominal power 250 W
Frequency response 39 Hz to 500 Hz
Sensitivity 90.6 dB
Impedance 2 x 2 Ω
Composition
Steel basket
Treated paper membrane
Foam surround
Long life “conex” spider
Double 50 mm voice coil on aluminum former
Magnetic motor 140 mm x 20 mm
Extended T-yoke
Subwoofer optimized for 10 L to 20 L sealed enclosure
Usable as a bass reflex enclosure for high SPL
Accessories included:
User manual
Sealed enclosure recommended
| Internal Volume Vb | F -3 dB | Boost |
| 10 L | 50 Hz | 4.7 dB at 76 Hz |
| 20 L | 42 Hz | 3.1 dB at 66 Hz |
Bass reflex cabinet
| Internal volume | Internal diameter of the vent |
Vent length | Cut-off frequency | Boost |
| 30 L | 10 cm | 30 cm | 39 Hz | 8.5 dB at 63 Hz |
Additional information
| GAMME | Relax |
|---|---|
| TYPE | Without box |
| TAILLE | 250mm |
