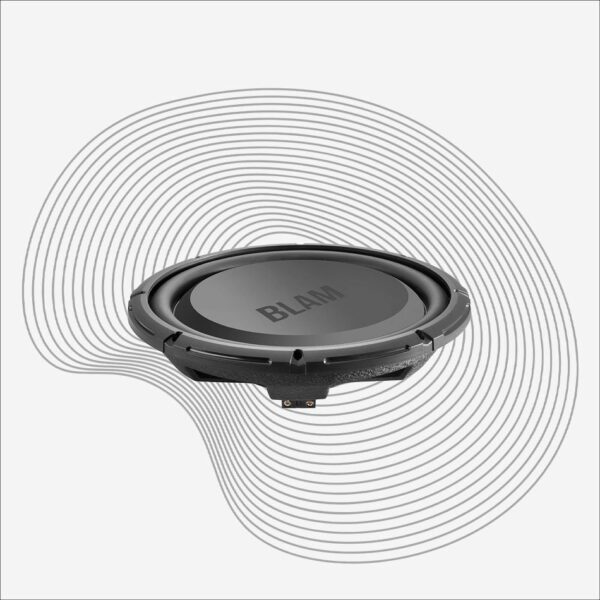

EXTRA FLAT SUBWOOFER 300 MM
Technical details
Installation depth 67 mm
Power 400 W max / 200 W nominal
Frequency response 30 Hz to 500 Hz
Sensitivity: 88.7 dB
Impedance 2 Ω
Composition
Steel salad bowl
Injected polypropylene membrane
Large all-round butyl suspension
Spider long life ” Conex
50 mm coil on aluminium support
Magnetic motor 126 mm x 15 mm
Flared fleece piece
Subwoofer optimized for 15L to 45L closed cabinets
Accessories included:
Fixing screws
Instructions for use
Recommended closed box:
| Internal Volume Vb | F -3dB | Boost |
| 15 L | 54 Hz | 4.6 dB at 86 Hz |
| 25 L | 46 Hz | 3.2 dB at 75 Hz |
| 40 L | 42 Hz | 2.2 dB at 70 Hz |
Description
EXTRA FLAT SUBWOOFER 300 MM
Technical details
Installation depth 67 mm
Power 400 W max / 200 W nominal
Frequency response 30 Hz to 500 Hz
Sensitivity: 88.7 dB
Impedance 2 Ω
Composition
Steel salad bowl
Injected polypropylene membrane
Large all-round butyl suspension
Spider long life ” Conex
50 mm coil on aluminium support
Magnetic motor 126 mm x 15 mm
Flared fleece piece
Subwoofer optimized for 15L to 45L closed cabinets
Accessories included:
Fixing screws
Instructions for use
Recommended closed box:
| Internal Volume Vb | F -3dB | Boost |
| 15 L | 54 Hz | 4.6 dB at 86 Hz |
| 25 L | 46 Hz | 3.2 dB at 75 Hz |
| 40 L | 42 Hz | 2.2 dB at 70 Hz |
Additional information
| GAMME | Relax |
|---|---|
| TYPE | Without box |
| TAILLE | 300mm |
