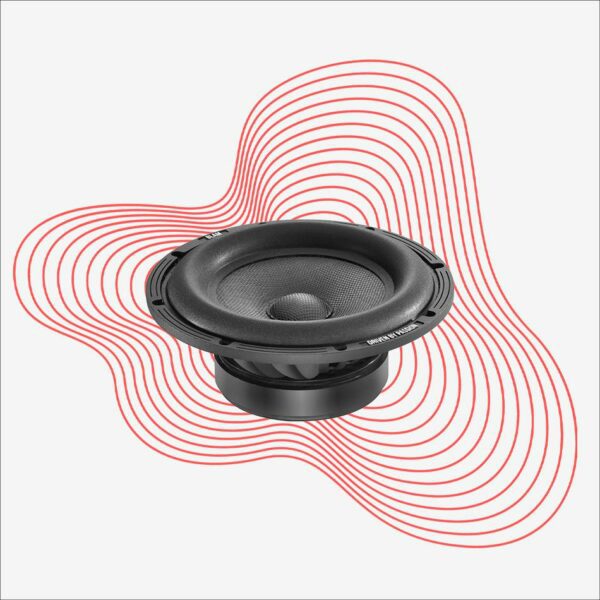

SUBWOOFER MID BASS 200 MM
Technical details
– Subwoofer 200 mm
– Maximum power 300 W / Nominal power 150 W
– Frequency response 30 Hz – 500 Hz
– Sensitivity 89 dB – Impedance 2 Ω
– Mounting depth 75 mm
Moulded aluminium saladier – Ultra rigid carbon fiber membrane
– Peripheral suspension NBR – Spider long life “conex” – Coil of
38 mm on fiberglass support – Oversized magnetic motor
120 × 20 mm – Gold-plated terminal block.
Optimized for closed and low-reflex housings from 10 L to 20 L.
Composition
Recommended closed box:
| Internal Volume Vb | F -3 dB | Boost |
| 10 L | 59 Hz | 0.6 dB at 114 Hz |
| 20 L | 56 Hz | 0.1 dB at 153 Hz |
Recommended subwoofer-reflex:
| Internal Volume Vb | Vent diameter | Vent length | F-3 dB | Boost |
| 10 L | 6 cm | 20 cm | 49 Hz | 6.2 dB at 79 Hz |
| 20L | 6 cm | 20 cm | 35 Hz | 2.7 dB at 60 Hz |
Description
SUBWOOFER MID BASS 200 MM
Technical details
– Subwoofer 200 mm
– Maximum power 300 W / Nominal power 150 W
– Frequency response 30 Hz – 500 Hz
– Sensitivity 89 dB – Impedance 2 Ω
– Mounting depth 75 mm
Moulded aluminium saladier – Ultra rigid carbon fiber membrane
– Peripheral suspension NBR – Spider long life “conex” – Coil of
38 mm on fiberglass support – Oversized magnetic motor
120 × 20 mm – Gold-plated terminal block.
Optimized for closed and low-reflex housings from 10 L to 20 L.
Composition
Recommended closed box:
| Internal Volume Vb | F -3 dB | Boost |
| 10 L | 59 Hz | 0.6 dB at 114 Hz |
| 20 L | 56 Hz | 0.1 dB at 153 Hz |
Recommended subwoofer-reflex:
| Internal Volume Vb | Vent diameter | Vent length | F-3 dB | Boost |
| 10 L | 6 cm | 20 cm | 49 Hz | 6.2 dB at 79 Hz |
| 20L | 6 cm | 20 cm | 35 Hz | 2.7 dB at 60 Hz |
Additional information
| GAMME | Signature |
|---|---|
| TYPE | Without box |
| TAILLE | 200mm |
You will like also :
-
Tweeter TSM 25 S45
Multix -
EXPRESS EX 500
Amplifier -

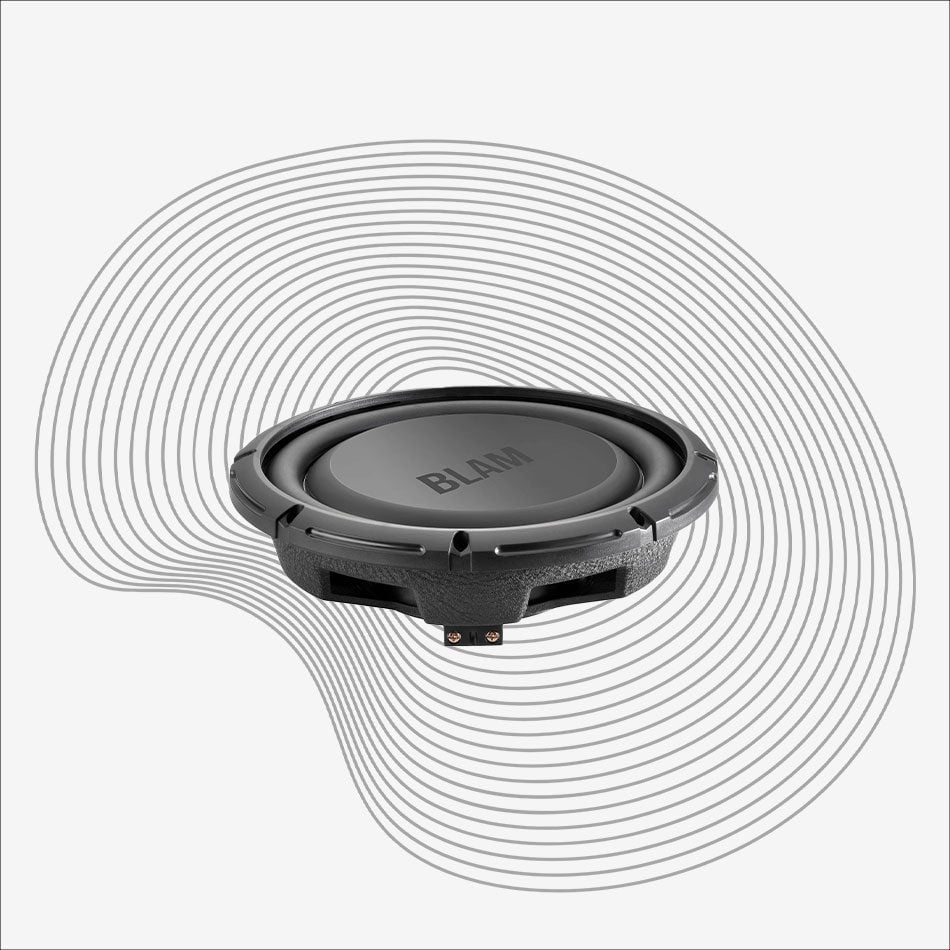

RELAX RS10.2
