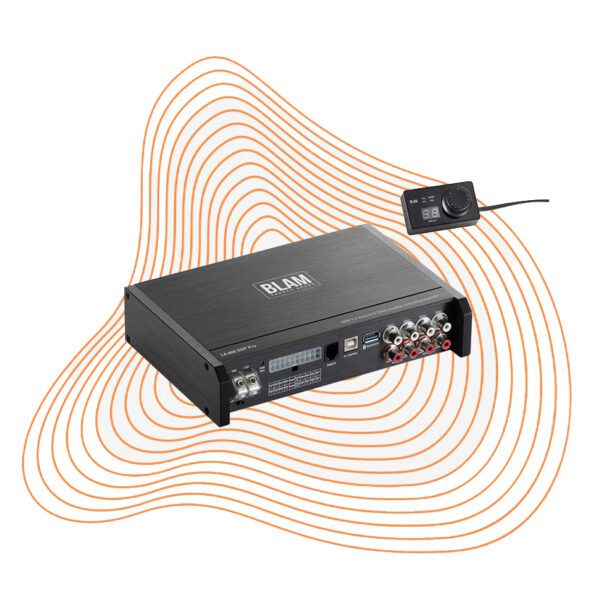

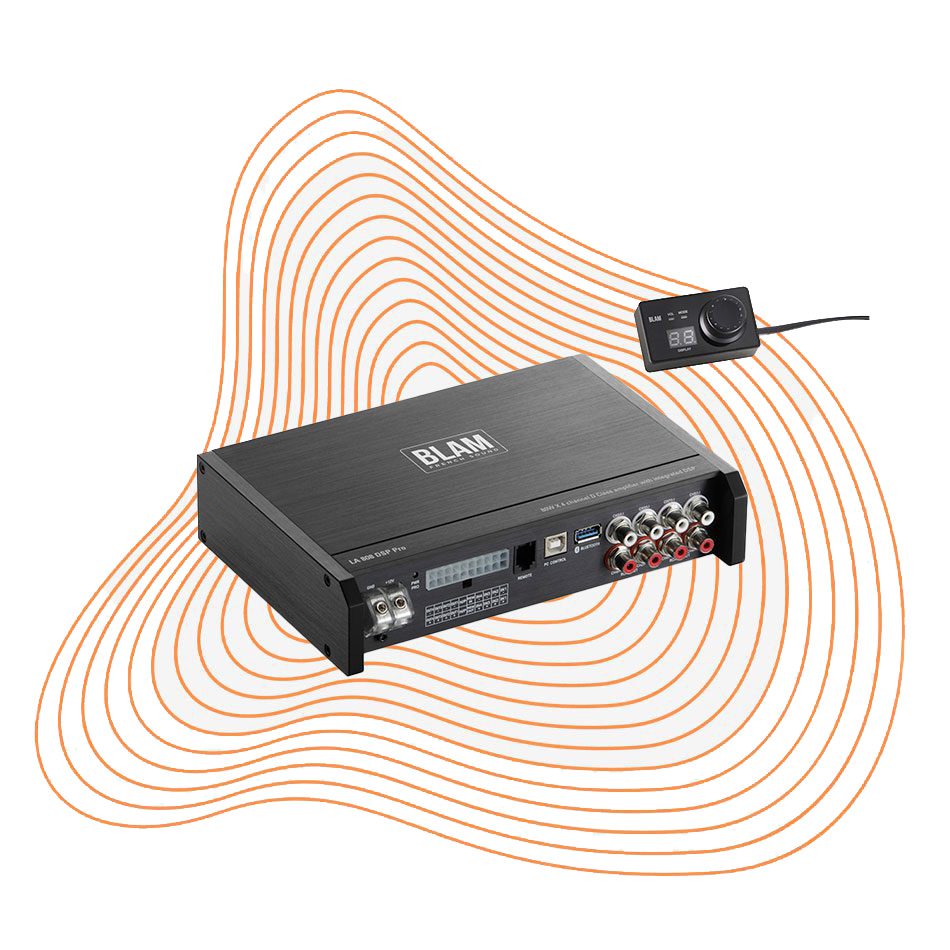

75 W X 4 CHANNEL CLASS D AMPLIFIER WITH INTEGRATED DSP
Technical details
– Automatic start-up
– 4 high level inputs and 4 low level inputs
– 4 high level and 4 low level outputs
– Low level RCA input: 0.8 V/8 V
– RMS power (4 Ω) : 4 x 50 W
– RMS power (2 Ω) : 4 x 75 W
– Bridge power RMS (4 Ω) : 2 x 150 W
– Frequency response 20 Hz – 20 kHz
• Signal to noise ratio > 100 dB
– Protections: short circuit / low impedance / reverse polarity / thermal protection
– External remote control to adjust volume and change modes
– Electronic filter 6-48 dB, Butterworth, Linkwitz or Bessel
– 10 ms delay possible on each channel
– Dimensions (L x W x H): 216 mm x 149 mm x 47 mm
– Wired remote control included
Optional BT module
Composition
Windows software: BLAM LA808 DSP Pro
Application for Android smartphone: BLAM LA808
IOS smartphone application: BLAM LA808
Looking for Blam audio products?
Find our resellers and distributors
around the world.
75 W X 4 CHANNEL CLASS D AMPLIFIER WITH INTEGRATED DSP
Technical details
– Automatic start-up
– 4 high level inputs and 4 low level inputs
– 4 high level and 4 low level outputs
– Low level RCA input: 0.8 V/8 V
– RMS power (4 Ω) : 4 x 50 W
– RMS power (2 Ω) : 4 x 75 W
– Bridge power RMS (4 Ω) : 2 x 150 W
– Frequency response 20 Hz – 20 kHz
• Signal to noise ratio > 100 dB
– Protections: short circuit / low impedance / reverse polarity / thermal protection
– External remote control to adjust volume and change modes
– Electronic filter 6-48 dB, Butterworth, Linkwitz or Bessel
– 10 ms delay possible on each channel
– Dimensions (L x W x H): 216 mm x 149 mm x 47 mm
– Wired remote control included
Optional BT module
Composition
Windows software: BLAM LA808 DSP Pro
Application for Android smartphone: BLAM LA808
IOS smartphone application: BLAM LA808
