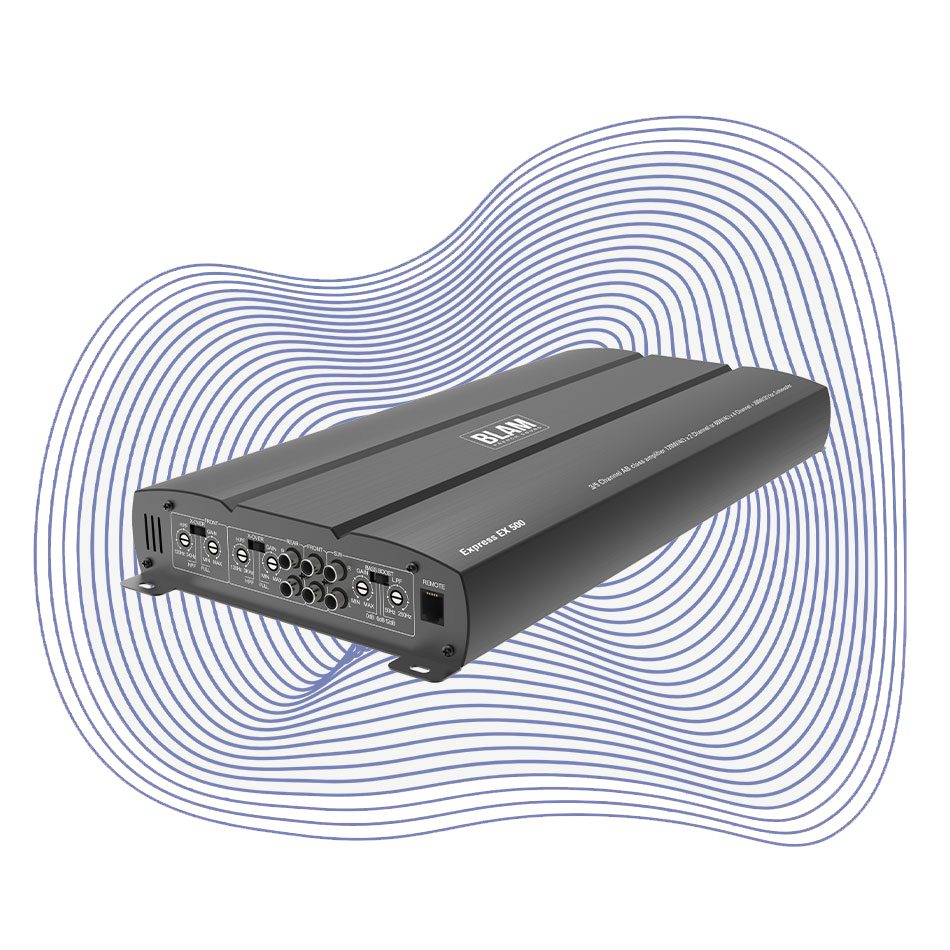

EX 500 amplifier
This 5-channel Class AB/D amplifier combines power and compatibility with factory car stereos. It offers four Class AB stereo channels for speakers and one Class D subwoofer channel for bass. Low-level and high-level RCA inputs allow for flexible installation.
● 4 speaker channels: 4 × 80W RMS @ 4Ω, 4 × 100W RMS @ 2Ω
● Bridge mode: 2 × 240W RMS @ 4Ω
● Class D subwoofer channel: 200W RMS @ 4Ω, 300W RMS @ 2Ω
● Low-pass (50Hz – 250Hz) and high-pass (50Hz – 3kHz) filters
● Signal-to-noise ratio > 90dB
● Protections: short circuits, low impedance, overheating
● Accessories: high-level cables, mounting brackets and screws, user manual
✔ Expertise developed since 2013
✔ Immersion thanks to the French Sound
5 CHANNEL AB CLASS AMPLIFIER
Compatible with OEM head units
– RCA low level inputs
– High-level inputs
– Power (4 Ω) : 4 x 80 Watts RMS
– Power (2 Ω) : 4 x 100 Watts RMS
– Bridge power (4 Ω): 2 x 240 Watts RMS
– Subwoofer channel power (Class D): 200 Watts RMS (4 Ω) / 300 Watts RMS (2 Ω)
– Low pass crossover: 50 Hz – 250 Hz
– High pass crossover: 50 Hz – 3 kHz
• Signal-to-noise ratio : > 90 dB
– Protections: short circuit / low impedance / thermal protection
– Wired remote control included
– Dimensions (L x W x H): 427.5 × 53 × 216 mm – 16.8” × 2.1”× 8.5”
Downloads
Let yourself be transported by the French Sound
Let yourself be transported by the French Sound
| GAMME | Express |
|---|---|
| PRODUIT | Amplifier |
| TYPE | 5 channels |
