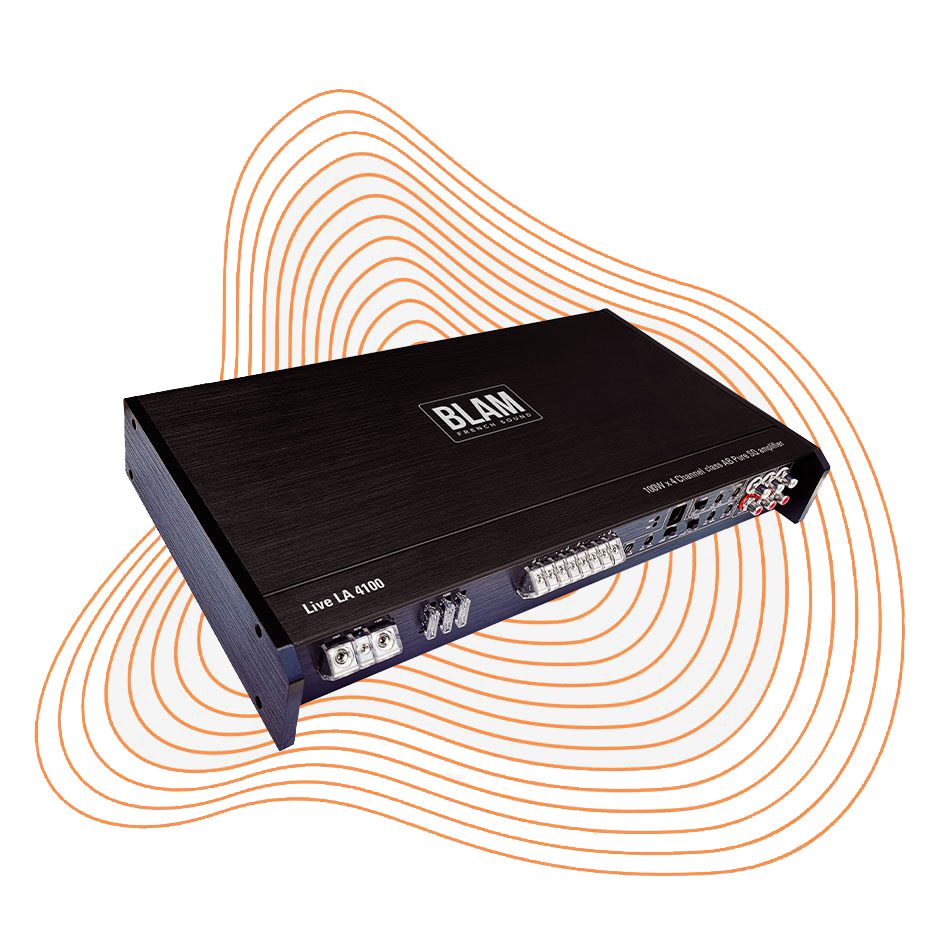

100 W X 4 CHANNEL CLASS AB PURE SQ AMPLIFIER
Technical details
We have developed the LIVE amplifiers taking into account all the parameters. We listened and compared each component until we reached our goals.
The result is a monumental reserve of energy that reproduce a natural music in its smallest details. The bass and extreme bass are faithfully reproduced with impressive strength.
Due to their large volume, they have a large dissipation surface which ensures their cooling, stability and performance. They benefit from a sober and robust design, high quality finish and are available in two colors, black and silver.
Composition
– Low level RCA input: 0.5 V
– RMS power (4 Ω) : 4 x 100 W
– RMS power (2 Ω) : 4 x 130 W
– Bridge power RMS (4 Ω) : 2 x 260 W
– Low pass crossover: 50 Hz – 3 kHz (12 dB/octave) Rear
– High pass crossover: 50 Hz – 3 kHz (12 dB/octave) (Front),
15 Hz – 500 Hz (12 dB/octave) (Rear)
– Frequency response: 10 Hz – 45 kHz
– Bass boost: 0-10 dB at 45 Hz (Rear)
• Signal to noise ratio > 90 dB
– Remote subwoofer level control: 0 – 10 dB (Rear)
– Mono/stereo selection (Rear)
– Protections: short circuit / low impedance / reverse polarity / thermal protection
– Dimensions (L x W x H): 416 mm x 217 mm x 60 mm – 16,3” x 8,5” x 2,4
This amplifier is also available in a Black edition.
The remote control is optional.
