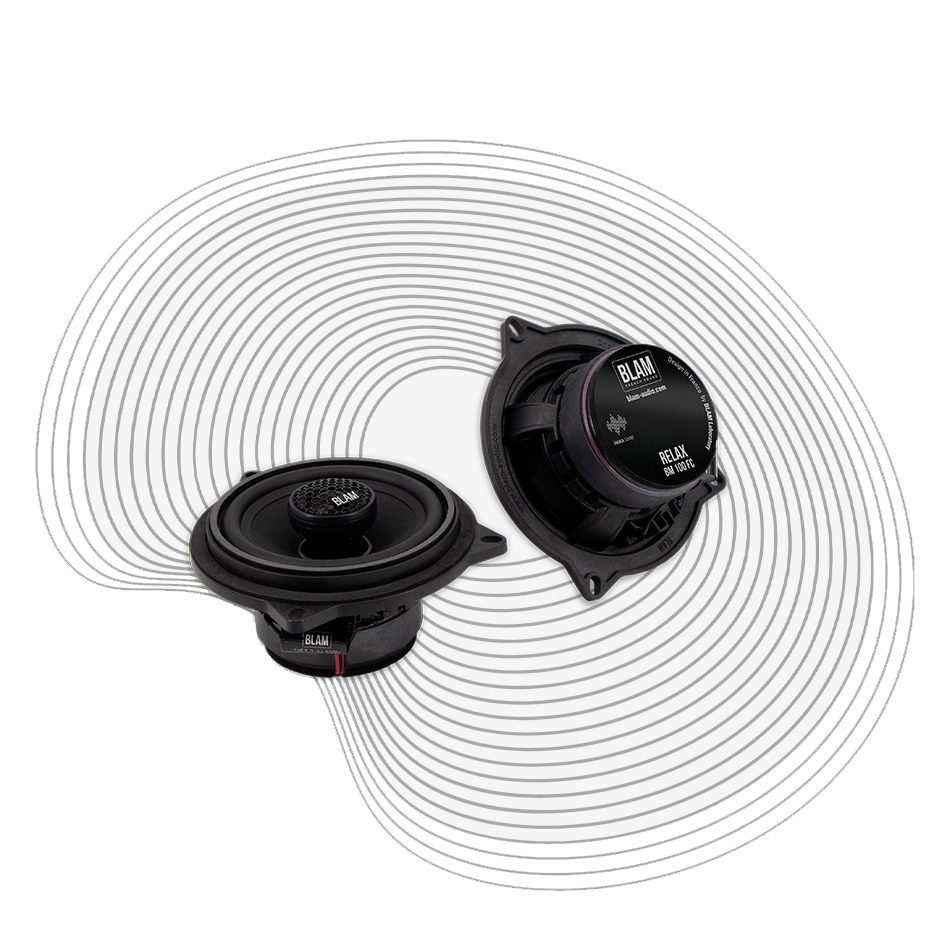

The BMW Plug & Play 2-way coaxial high-efficiency system includes two 100 mm woofers, two 20 mm coaxial soft dome tweeters, and two integrated high-pass filters. Designed specifically for BMW vehicles, it offers a maximum power of 100 W and a frequency response of 80 Hz to 30 kHz. With a sensitivity of 90.3 dB and an impedance of 2 Ω, this system guarantees clear and powerful sound. The woofers feature a glass fiber reinforced composite basket, a high-quality cellulose pulp cone, and a butyl surround. The system is Plug & Play compatible, with a dual BMW connector for easy installation.

BMW HIGH-PERFORMANCE 2-WAY COAXIAL PLUG & PLAY SYSTEM

Technical Details

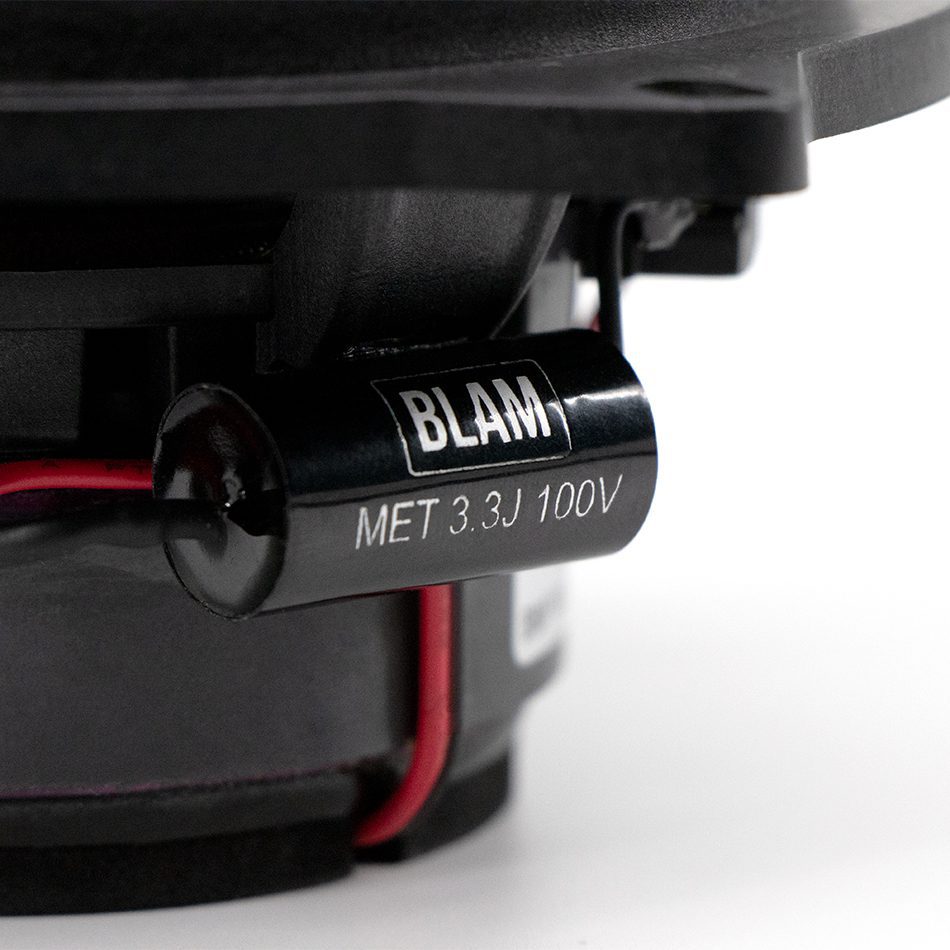

This kit consists of two 100 mm BMW plug & play woofers, two 20 mm coaxial soft dome tweeters, and two integrated 6 dB/octave high-pass filters.

100 mm Woofer
Maximum Power 100 W / Nominal Power 50 W
Frequency Response 80 Hz / 30 kHz
Sensitivity 90.3 dB – Impedance 2 Ω

Composition

Woofer:

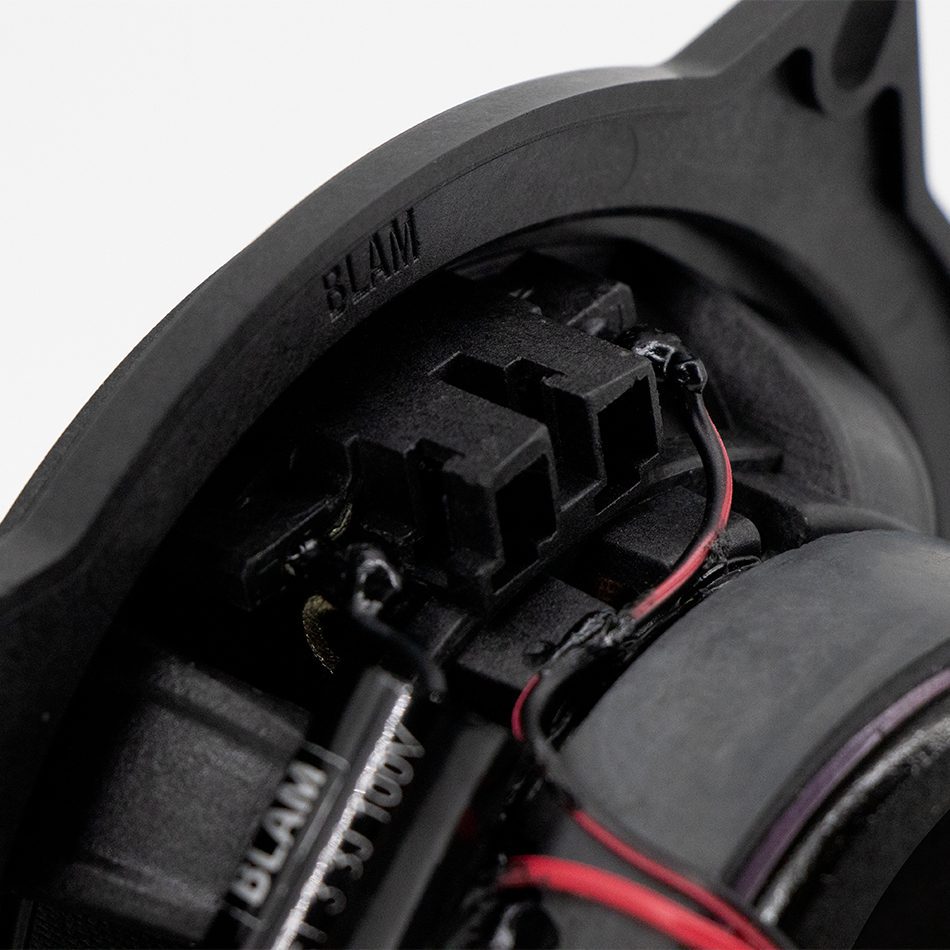

Original BLAM basket made of fiberglass-reinforced composite with dual BMW Plug & Play connector
High-quality treated cellulose pulp cone
Butyl surround
Long-life “Conex” spider
25 mm voice coil on Kapton mount
70 x 15 mm ferrite motor
Thick magnetic circuit (4 mm)

Supplied accessories:
User manual
