The BMW Plug & Play 2-way high-efficiency system includes two 100 mm woofers and two 25 mm soft dome tweeters, combined with two 6 dB/octave in-line high-pass filters. This kit is designed to offer a maximum power of 100 W and a frequency response of 80 Hz to 30 kHz, with a sensitivity of 90.3 dB and an impedance of 2 Ω. The woofers are equipped with a glass fiber reinforced composite basket, a high-quality cellulose pulp cone and a butyl suspension. The Plug & Play system allows for quick and easy installation thanks to its dual BMW connector.

BMW PLUG & PLAY 2-WAY HIGH-EFFICIENCY SYSTEM

Technical Details

This kit consists of two 100 mm BMW Plug & Play woofers, two 25 mm soft dome tweeters, and two 6 dB/octave in-line high-pass filters.

100 mm Woofer
Maximum Power 100 W / 50 W Nominal
Frequency Response 80 Hz / 30 kHz
Sensitivity 90.3 dB – Impedance 2 Ω

Composition

Woofer:

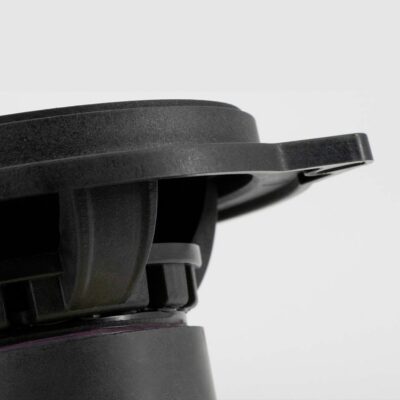

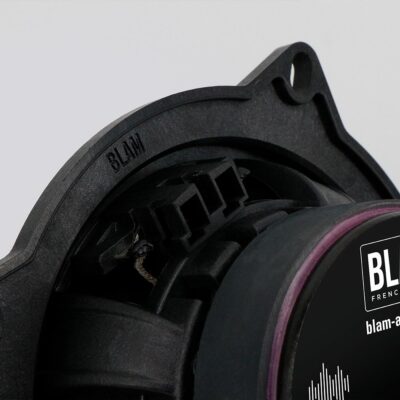

Original BLAM basket made of fiberglass-reinforced composite with dual BMW Plug & Play connector
High-quality treated cellulose pulp cone
Butyl surround
Long-life “Conex” spider
25 mm voice coil on Kapton mount
70 x 15 mm ferrite motor
Thick magnetic circuit (4 mm)

Supplied Accessories:
User Manual
