subwoofer R6EL

subwoofer R6EL

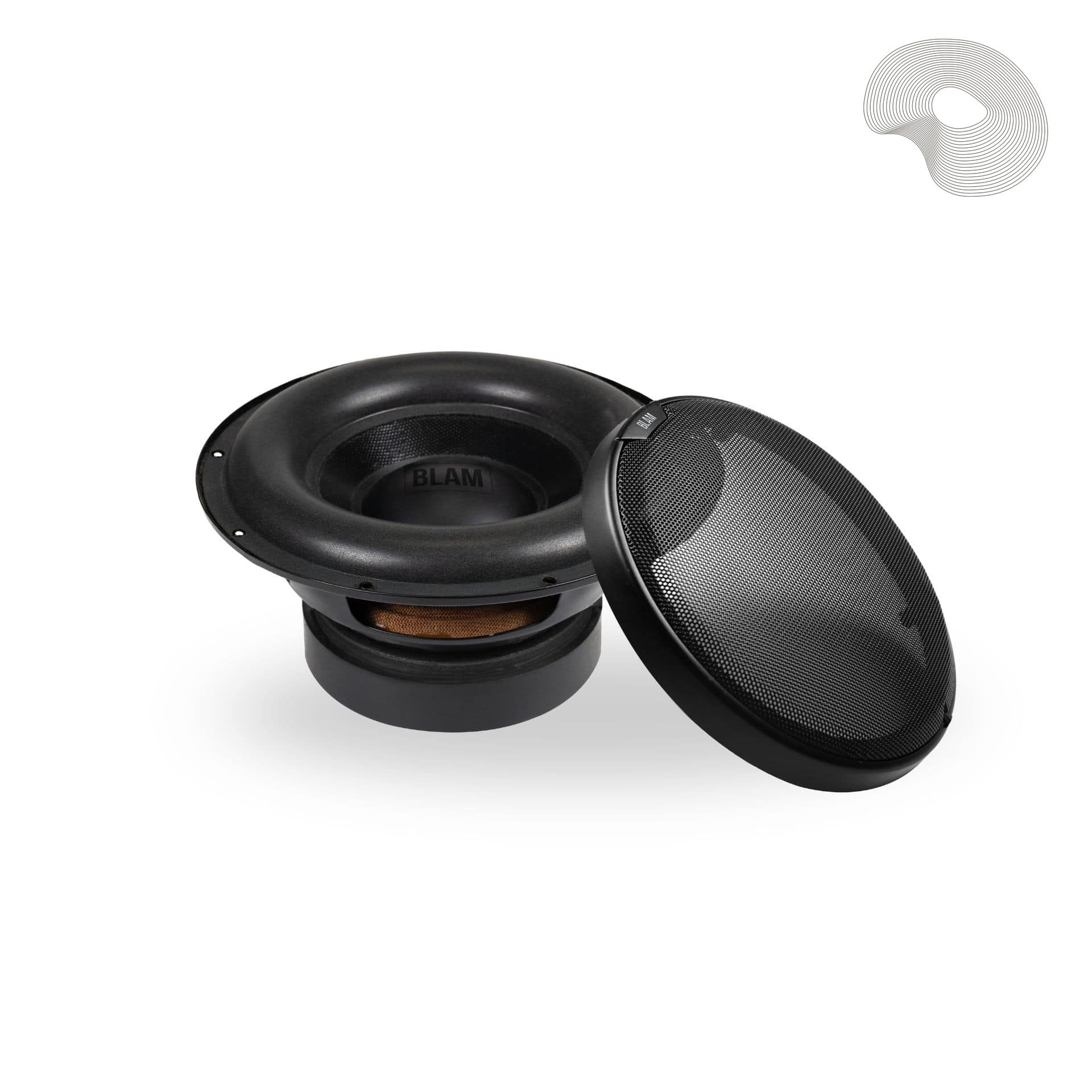

The R6EL is a high-performance subwoofer designed for bass reflex enclosures from 7 to 15 liters. With a power output of 160 W max (80 W RMS), it offers a frequency response of 50 Hz to 3 kHz. Its treated cellulose pulp cone, large foam surround and 40 mm voice coil on a fiberglass mount ensure precise and dynamic sound reproduction. Its robust magnetic motor and flared pole piece guarantee excellent performance. Comes with protective grille, mounting screws, sealing gasket and instructions.

VIEW DISTRIBUTORS

Powerful and compact R6EL 165 mm (6.5″) subwoofer



Maximum power 160 W / Nominal power 80 W

Frequency response 50 Hz – 3 kHz

Sensitivity 83 dB – Impedance 4 Ohm

Steel basket

High quality treated cellulose pulp membrane

Large foam surround

40 mm spool on fiberglass support

Magnetic motor 105 x 20 mm

Extended T-yoke

Subwoofer optimized for bass reflex speakers from 7 to 15 liters





Accessories provided

User manual

Mounting screws

Seal

Protection grill



TECHNICAL DATA SHEET :

Icon

R6EL

1 file(s) 1.43 MB
Download
