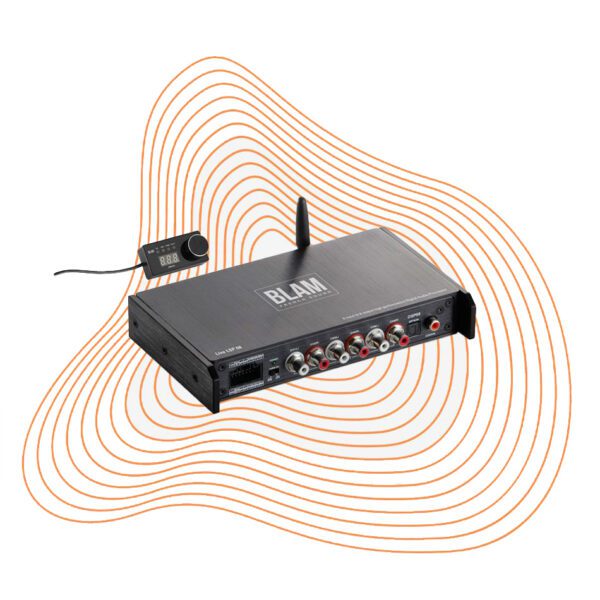

LSP 68 digital signal processor

LSP 68 digital signal processor

The high-performance digital signal processor features 6 low-level inputs, 1 optical input and 1 digital input. It offers 8 outputs and operates with a 96 kHz sampling frequency and a 64-bit processor. It features a 31-band equalizer for channels 1 to 6 and an 11-band equalizer for channels 7 to 8, with an adjustable electronic filter (6-48 dB) in Butterworth, Linkwitz or Bessel modes. Each channel can be adjusted with a 15 ms delay.

It has a frequency response of 20 Hz to 22 kHz and an input sensitivity of 4 V to 12.5 V, with a maximum output level of ≥ 4 V. Power supply is from 9.5 V to 16.5 V. Dimensions are 197 mm x 129 mm x 32 mm, and a wired remote control is included. Windows software and Android applications available for advanced control.

VIEW DISTRIBUTORS

HIGH PERFORMANCE DIGITAL SIGNAL PROCESSOR WITH 6 INPUTS AND 8 OUTPUTS



Technical details

• 64-bit digital signal processor
• 96 kHz sampling frequency
• high-level inputs
• 6 low-level inputs
• 1 optical input
• 1 digital signal input
• BT 5.0 antenna
• 8 outputs
• Variable equalizer: 31 bands (CH 1-6) and 11 bands (CH 7-8)
• Electronic filter 6 – 48 dB, Butterworth, Linkwitz or Bessel
• 15 ms delay possible on each channel
• Dimensions (L x W x H): 197 x 129 x 32 mm
• Wired remote control included

Specifications:
Power supply: 9.5 V – 16.5 V
Frequency response: 20 Hz – 22 kHz
Input sensitivity: 4 V – 12.5 V
Maximum output level: ≥ 4 V



Composition

Windows software: BLAM LSP68

Icon

LSP 68 software

1 file(s) 5.04 MB
Download

Application for Android smartphone: BLAM LSP68



Icon

LSP68+ DATA SHEET

1 file(s) 5.95 MB
Download
