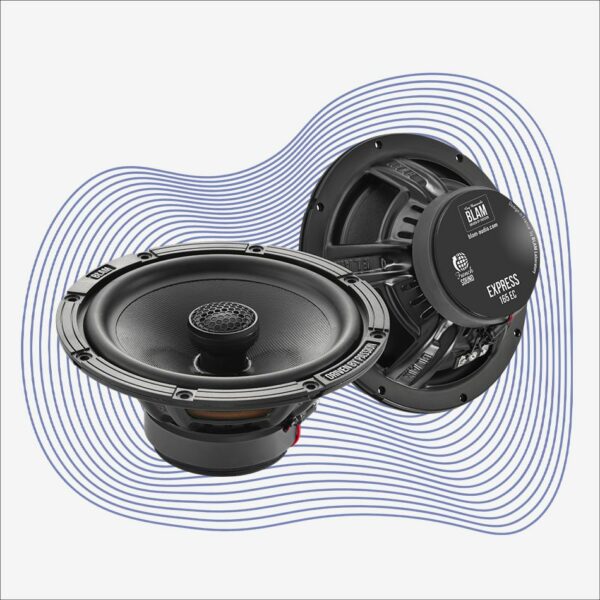

Kit 165EC

The 165EC kit is a high-end, two-way coaxial system designed for precise and dynamic sound reproduction. It combines two 165mm woofers and two 20mm coaxial soft-dome tweeters with integrated audiophile-grade 6dB/octave high-pass filters. It offers a maximum power output of 120W (60W nominal), a frequency response of 65Hz to 25kHz, an impedance of 2Ω, and a sensitivity of 93.5dB.

● Two 165mm woofers + two 20mm coaxial tweeters
● Maximum power 120 W – sensitivity 93.5 dB
● 65 Hz – 25 kHz frequency response for clear and detailed sound

FIND A DEALER

✔ Expertise developed since 2013
✔ Immersion thanks to the French Sound

CAR AUDIO SYSTEM WITH TWO SEPARATE CHANNELS

  • Max Power 120 W – Nominal Power 60 W
  • Frequency response 65 Hz – 25 kHz
  • Sensitivity 93.5 dB – Impedance 2 Ω

This kit includes

  • Specific deep-drawn steel basket
  • Treated and tropicalized cellulose pulp membrane
  • Peripheral butyl surround
  • Spider long life “Conex”
  • 25 mm voice coil on kapton former
  • Magnetic motor 80 mm x 15 mm (Y30)
  • Thick magnetic circuit (5 mm)
  • 20 mm high quality soft dome
  • N38 neodymium motor
  • Integrated high-pass 6 dB/octave crossovers

Downloads

Technical data sheet 165 EC

Let yourself be transported by the French Sound

Let yourself be transported by the French Sound

GAMME

Express

TYPE

Coaxial

TAILLE

165mm (6")

PRODUIT

Kit
