Technical specification

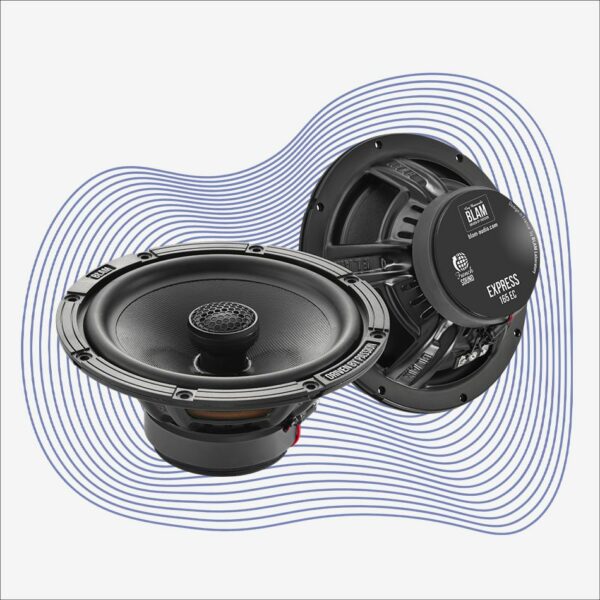

This kit is composed of two 165 mm (6,5”) woofers, with two 20 mm (3/4”) coaxial soft dome tweeters, two 6 dB/octave audiophile high-pass crossovers
2-way high-fidelity coaxial system
165 mm woofer
Max Power 120 W – Nominal Power 60 W
Frequency response 65 Hz – 25 kHz
Sensitivity 93.5 dB – Impedance 2 Ω
Composition
2 Woofers : 165EC
Specific deep-drawn steel basket
Treated and tropicalized cellulose pulp membrane
Butyl rubber surround
Spider long life “Conex”
25 mm voice coil on kapton former
Magnetic motor 80 mm x 15 mm (Y30)
Thick magnetic circuit (5 mm)
2 coaxial tweeters :
20 mm high quality soft dome
N38 neodymium motor
Integrated high-pass crossover 6 dB/octave
Supplied accessories:
Mounting screws
User manual
Looking for Blam audio products? Find our resellers and distributors around the world.
Description
Technical specification
This kit is composed of two 165 mm (6,5”) woofers, with two 20 mm (3/4”) coaxial soft dome tweeters, two 6 dB/octave audiophile high-pass crossovers
2-way high-fidelity coaxial system
165 mm woofer
Max Power 120 W – Nominal Power 60 W
Frequency response 65 Hz – 25 kHz
Sensitivity 93.5 dB – Impedance 2 Ω
Composition
2 Woofers : 165EC
Specific deep-drawn steel basket
Treated and tropicalized cellulose pulp membrane
Butyl rubber surround
Spider long life “Conex”
25 mm voice coil on kapton former
Magnetic motor 80 mm x 15 mm (Y30)
Thick magnetic circuit (5 mm)
2 coaxial tweeters :
20 mm high quality soft dome
N38 neodymium motor
Integrated high-pass crossover 6 dB/octave
Supplied accessories:
Mounting screws
User manual
Additional information
| GAMME | Express |
|---|---|
| TYPE | Coaxial |
| TAILLE | 165mm |
