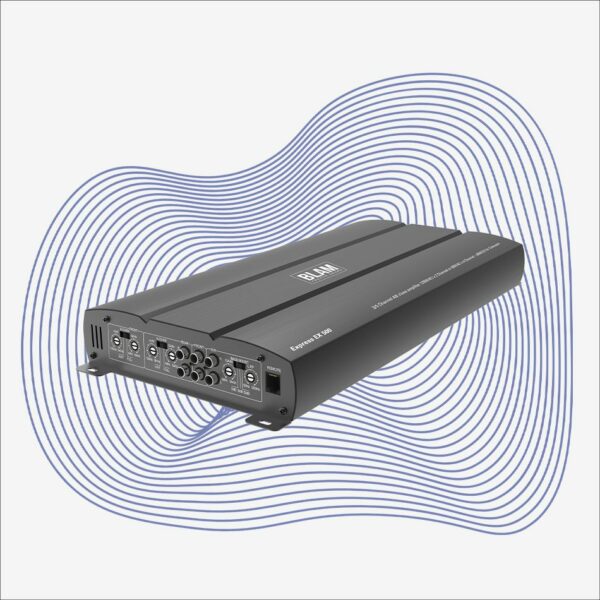

EX 500 amplifier

EX 500 amplifier

This 5-channel Class AB amplifier is compatible with factory headunits and delivers high-quality audio performance. It features low-level RCA inputs and high-level inputs to accommodate a variety of setups. With 4 x 80 Watts RMS into 4 Ω, 4 x 100 Watts RMS into 2 Ω, and in bridge configuration 2 x 240 Watts RMS into 4 Ω, it delivers powerful speaker reproduction. In addition, it features a Class D subwoofer channel delivering 200 Watts RMS into 4 Ω and 300 Watts RMS into 2 Ω.

The amplifier features low-pass (50 Hz – 250 Hz) and high-pass (50 Hz – 3 kHz) filters, as well as a signal-to-noise ratio exceeding 90 dB. It is equipped with short-circuit, low-impedance, and overheating protections. A wired remote control is included for convenient remote control.

The amplifier’s dimensions are 427.5 x 53 x 216 mm (16.8″ x 2.1″ x 8.5″), and the kit includes cables for the high-level inputs, mounting brackets and screws, and instructions for easy installation.

VIEW DISTRIBUTORS

5 CHANNEL AB CLASS AMPLIFIER



Technical specification

Compatible with OEM head units

– RCA low level inputs
– High-level inputs
– Power (4 Ω) : 4 x 80 Watts RMS
– Power (2 Ω) : 4 x 100 Watts RMS
– Bridge power (4 Ω): 2 x 240 Watts RMS
– Subwoofer channel power (Class D): 200 Watts RMS (4 Ω) / 300 Watts RMS (2 Ω)
– Low pass crossover: 50 Hz – 250 Hz
– High pass crossover: 50 Hz – 3 kHz
• Signal-to-noise ratio : > 90 dB
– Protections: short circuit / low impedance / thermal protection
– Wired remote control included
– Dimensions (L x W x H): 427.5 × 53 × 216 mm – 16.8” × 2.1”× 8.5”



Included accessories:
High-level input cables
Mounting brackets and screws
User manual
Wired remote control



Icon

EX 500 DATA SHEET

1 file(s) 123.65 KB
Download
Icon

EX 500 USERMANUAL

1 file(s) 2.51 MB
Download
