Kit 100 RFC

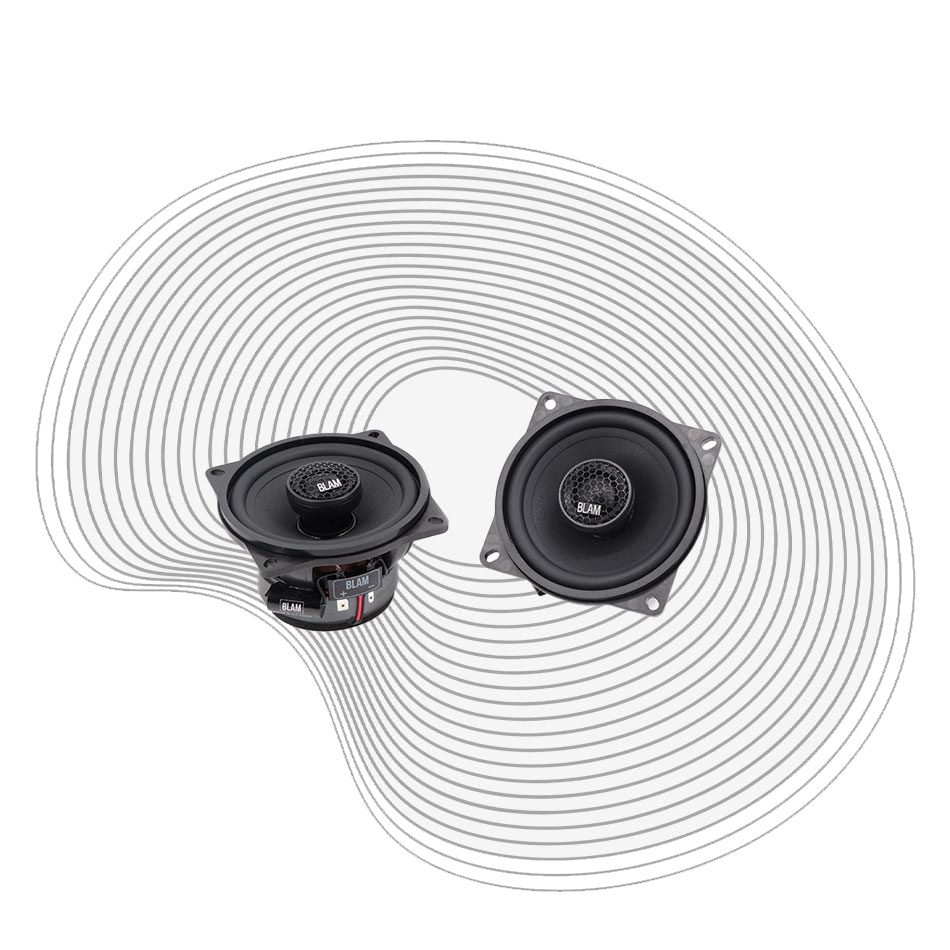

The KIT 100RFC is a 2-way coaxial system with 100mm drivers, offering precise and dynamic sound reproduction. It features woofers with integrated coaxial tweeters and a 6dB/octave crossover for clear and powerful sound. With a maximum power output of 100W, a frequency response of 80Hz to 30kHz, and a sensitivity of 90.3dB, it guarantees a high-quality audio experience.

● 100mm woofer + 20mm coaxial tweeter
● Max power 100W – sensitivity 90.3dB
● Response 80Hz – 30kHz
● Premium components: cellulose membrane, butyl suspension
● Clear and dynamic sound

FIND A RESELLER

✔ Expertise developed since 2013
✔ Immersion thanks to the French Sound

TWO-WAY COAXIAL CAR AUDIO SYSTEM

  • Max power 100 W – Nominal power 50 W
  • Frequency response 80 Hz – 30 kHz
  • Sensitivity 90.3 dB – Impedance 2 Ω

This kit includes

  • Original BLAM composite basket reinforced with fiberglass
  • High quality treated cellulose pulp membrane
  • Peripheral butyl surround
  • Long life “Conex” spider
  • 25 mm voice coil on Kapton former
  • 70 mm x 15 mm ferrite magnet
  • Thick magnetic circuit (4 mm)
  • High quality 20 mm soft dome tweeter
  • N38 noedymium motor
  • Integrated high-pass filters 6 dB/octave
  • Adjustable tweeter level 0 dB or -3dB

Downloads

Technical Data Sheet 100 RFC

Let yourself be transported by the French Sound

Let yourself be transported by the French Sound

GAMME

Relax

TYPE

Coaxial

TAILLE

100mm (4")

PRODUIT

Kit
