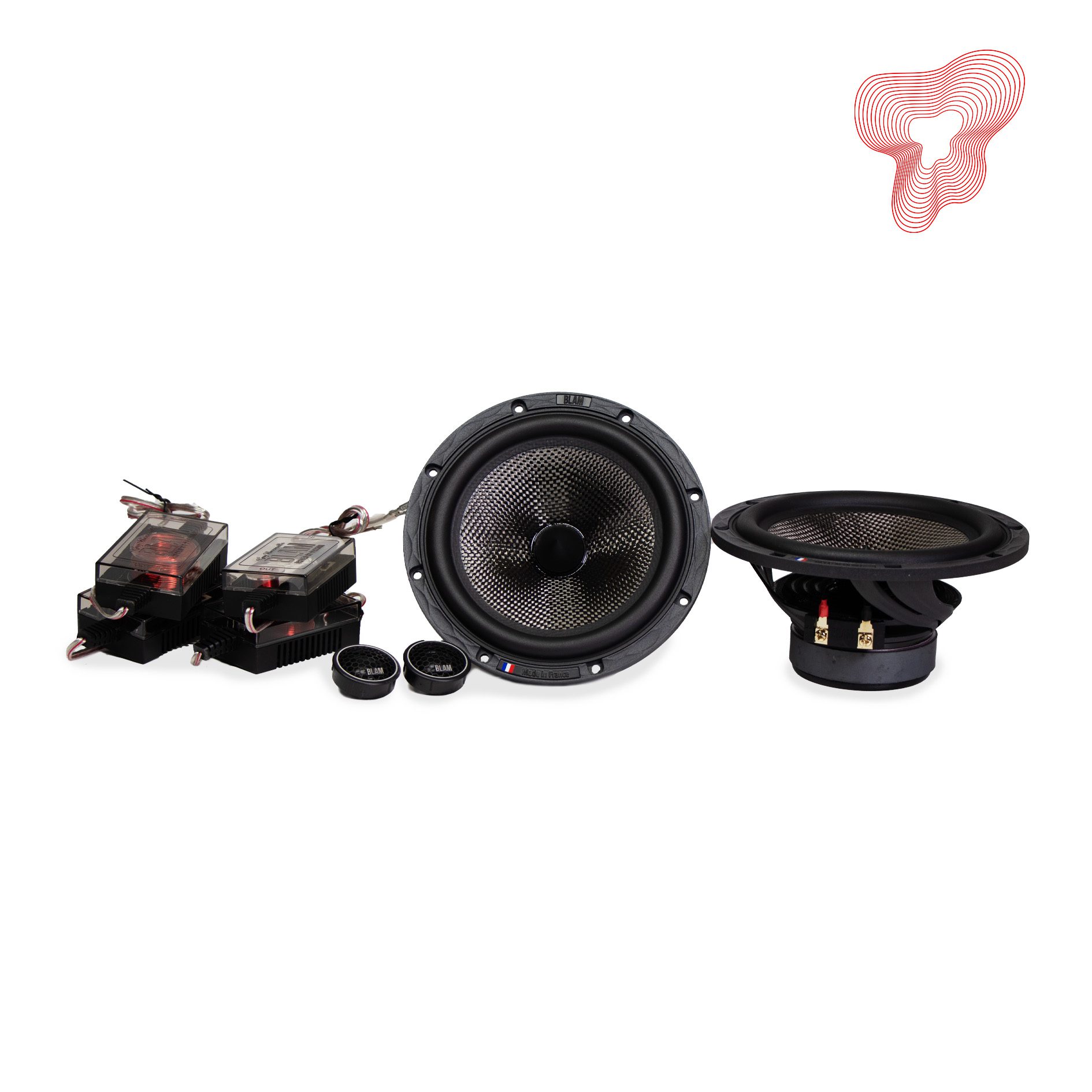

KIT 165 S80
The KIT 165 S80 is a 2-way component system designed for precise and powerful in-car sound reproduction. It features two 6.80 mm (165 mm) S woofers (120 W max., 60 Hz – 7 kHz) with carbon cones and 28 mm voice coils on fiberglass formers for dynamic bass. The 20 mm T20HR tweeters with textile domes and neodymium magnets deliver clear and detailed highs. The BFT01–BFW01 crossovers optimize the signal with a 6 dB/octave high-pass filter and tweeter level control (0 / -3 dB).
● 2 165 mm woofers – 120 W max.
● Response 60 Hz – 7 kHz

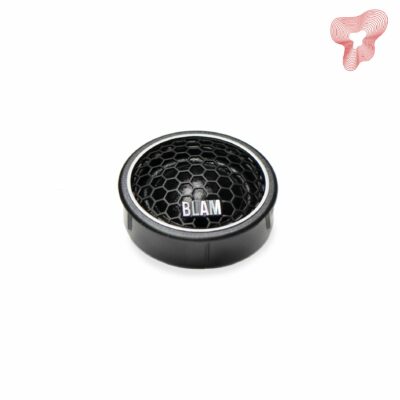

● 2 20 mm neodymium textile tweeters
● High-pass filters and tweeter adjustment 0 / -3 dB
● Precise, dynamic and immersive sound
✔ Made in France
✔ Expertise developed since 2013
✔ Immersion thanks to the French Sound
CAR AUDIO SYSTEM WITH TWO SEPARATE CHANNELS
This kit includes
- 6-1/2″ (165 mm) woofer
- Max. power 120 W / Nominal power 60 W
- Frequency response 60 Hz – 7 kHz
- Impedance 2 Ohms
Die-cast aluminum bowl – Ultra-stiff carbon fiber cone – IIR surround – Long-life “conex” spider – 28mm voice coil, fiberglass support – 80mm x 17mm magnet motor – Machined pole pieces – Gold-plated terminal block.
- 5 Ω, Neo magnet
- 20mm (3/4″) textile dome diamphragm
- Compact mounting dimensions
- High efficiency magnet (N38H neodymium)
- Ferrofluid for high power handling
- Adjustable cut-off 200 Hz to 600 Hz
- 6 dB/octave high pass crossover
- Tweeter level adjustable to 0 dB or attenuated to -3 dB
The products in this kit can be purchased à la carte.
Downloads
Let yourself be transported by the French Sound
Let yourself be transported by the French Sound
| TYPE | 2 separate lanes |
|---|---|
| GAMME | Signature |
| PRODUIT | Kit |
| TAILLE | 165mm (6") |
