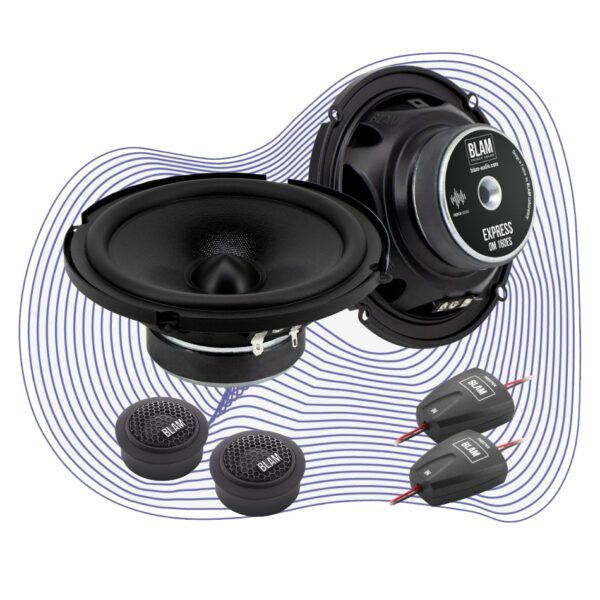

Kit OM 160 ES 20
The OM 160 ES 20 kit is a high-efficiency, two-way component system designed for precise and dynamic sound reproduction. It offers a maximum power output of 120 W (60 W nominal), a frequency response of 70 Hz to 21 kHz, an impedance of 2 Ω, and a sensitivity of 93 dB.

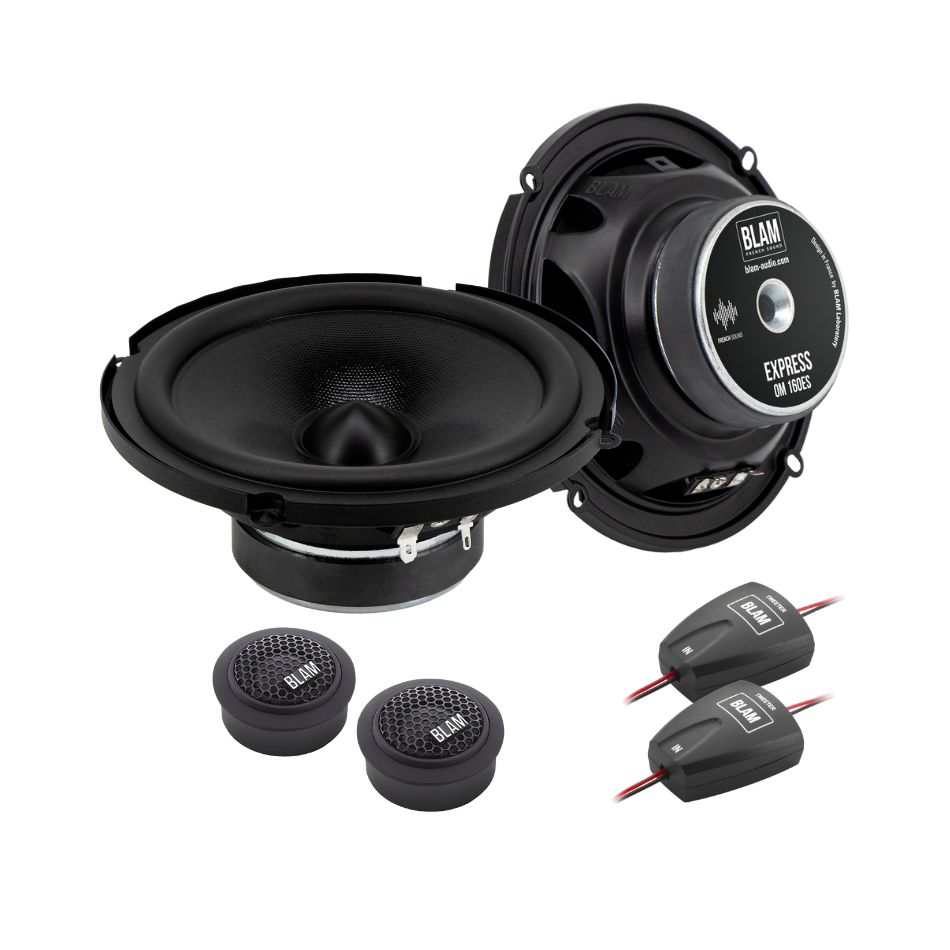

● Two 160mm woofers + two 20mm ET20 tweeters
● Maximum power 120 W – sensitivity 93 dB
● 70 Hz – 21 kHz frequency response for clear and detailed sound
● Woofer: treated cellulose membrane, butyl suspension, 25 mm voice coil on Kapton former

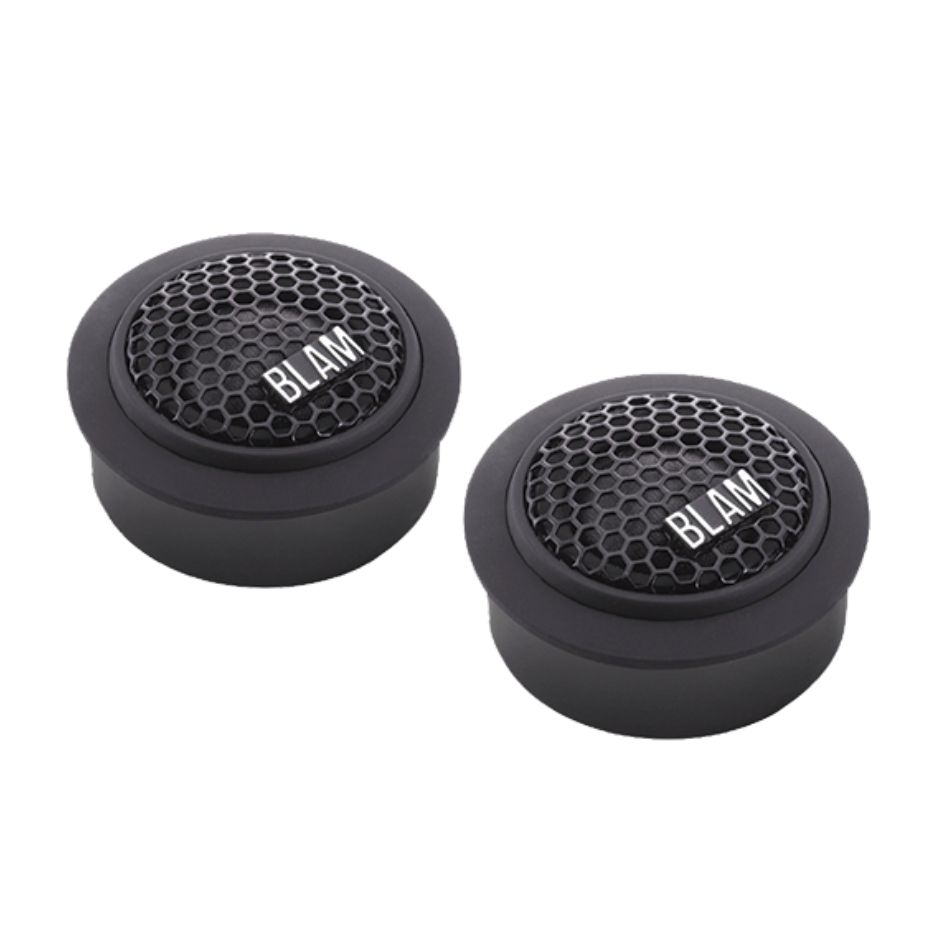

● Tweeter: Soft dome with neodymium magnet – 6 dB/octave high-pass filters, flush or angled mounting
✔ Expertise developed since 2013
✔ Immersion thanks to the French Sound
CAR AUDIO SYSTEM WITH TWO SEPARATE CHANNELS
- Maximum power 120 W – Nominal power 60 W
- Frequency response 70 Hz – 21 kHz
- Impedance 2 Ω – Sensitivity 93 dB
This kit includes
- Specific deep-drawn steel basket
- Treated cellulose pulp membrane
- Peripheral butyl surround
- Spider long life “Conex
- 25 mm coil on kapton support
- Magnetic motor 80 x 15 mm (Y30)
- 20 mm soft dome
- Neodymium motor
- Accessory for flush or inclined mounting
- 6 dB/octave high-pass filter
Downloads
Let yourself be transported by the French Sound
Let yourself be transported by the French Sound
| TYPE | 2 separate lanes |
|---|---|
| GAMME | Express |
| TAILLE | 160mm (6") |
| PRODUIT | Kit |
