Kit S165 85

Description

2-WAY SPEAKER SYSTEM

Technical specification

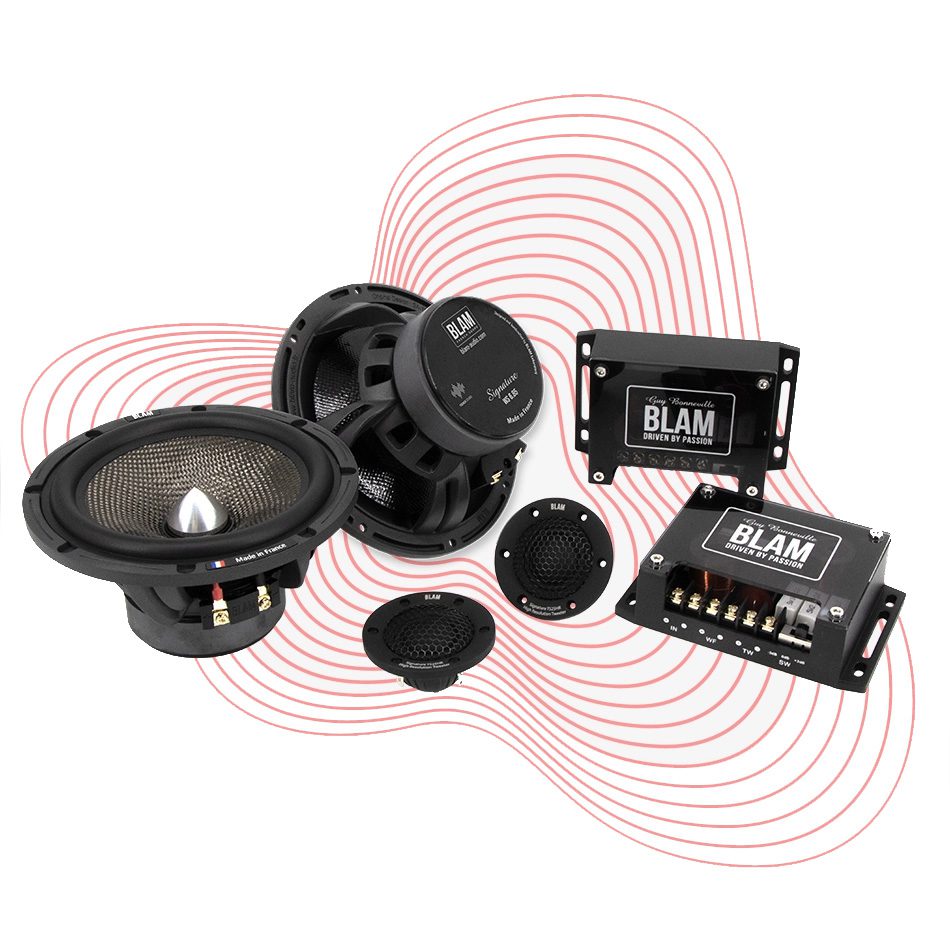

This kit contains two 165 mm (6.5″) woofers, two 25 mm (1″) high resolution soft dome tweeters and two external crossovers.

Composition

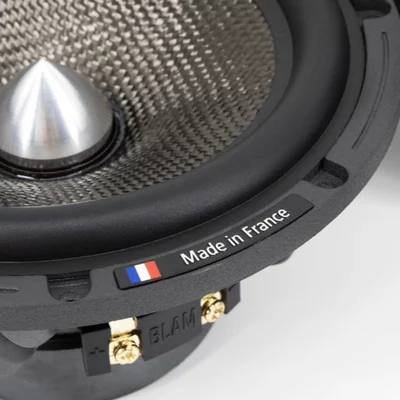

• WS 6.85 HIGH-FIDELITY WOOFER
  165 mm woofer
  Max power 200 W – Nominal power 100 W
  Frequency response 45 Hz – 40 kHz
  Sensitivity 91.7 dB – Impedance 3 Ω
  Mounting depth 76.5 mm

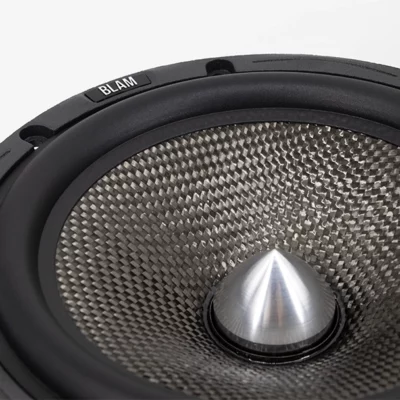

Moulded aluminium saladier – Ultra rigid carbon fiber diaphragm – NBR perimeter suspension – Long life spider “conex” – 34mm coil on fiberglass support – 85 × 20 mm magnetic motor – Machined aluminium head – Gold plated terminal block.

• TS 25 HR HIGH-RESOLUTION TWEETER
  25 mm (1”) soft dome diaphragm
  Maximum power 100 W / Nominal power 15 W
  Frequency response 1.5 kHz – 40 kHz
  Sensitivity 90.1 dB – Impedance 4 Ω
  Mounting depth 25.6 mm

High efficiency magnet (N38H neodymium) – Precision machined aluminum front plate – Low resonance rear chamber – Large suspension for wide dispersion.

• BFX 02 AUDIOPHILE COMPONENT FILTER
  2-way filter 12/12 dB / octave
  Adjustable tweeter level +3 dB 0 dB or -3 dB
  Crossover frequency: 4 kHz

High quality metallized polyester capacitors – Low resistance air coils.
