KIT L 165 PRO S

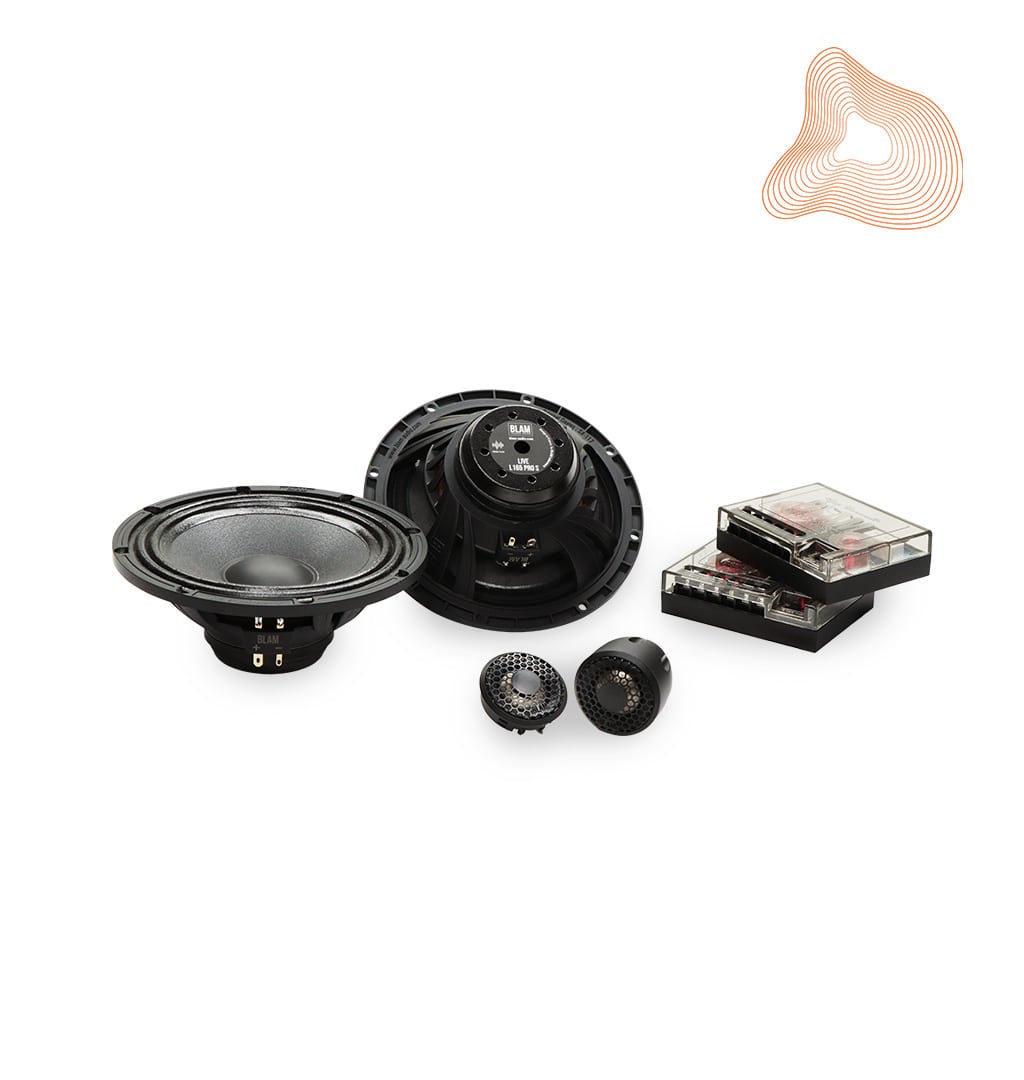

The L165 PRO S kit is a high-performance 2-way audio system, delivering up to 200 W with a sensitivity of 95 dB. It includes a 165 mm woofer with a cellulose pulp cone and a 25 mm titanium tweeter, both powered by powerful neodymium magnets. Designed for dynamic and accurate sound reproduction, it features high-quality passive crossover filtering and an adjustable tweeter level.
KIT L 165 PRO S – high-performance two-way component system
Max power 200 W – Nominal power 100 W
Frequency response 90 Hz – 25 Hz
Impedance 4 Ohms – Sensitivity 95 dB
TECHNICAL CHARACTERISTICS
- Woofer 6.5‘‘ (165 mm)
Glass fiber reinforced composite salad bowl
High quality treated cellulose pulp membrane
Peripheral butyl surround
Spider long life “Conex
39 mm coil on Kapton support
Ultra-powerful 70 x 7 mm neodymium motor
- Tweeter
25 mm titanium dome tweeter
N38 neodymium push-pull motor
- Crossovers (on passive version)
2-way 6-12 dB/octave crossover
Connection frequency 4.5 kHz
Adjustable tweeter level 0 dB or -3 dB
TECHNICAL DATA SHEET :
| TYPE | 2 separate lanes |
|---|---|
| GAMME | Live |
| PRODUIT | Kit |
| TAILLE | 165mm (6") |
