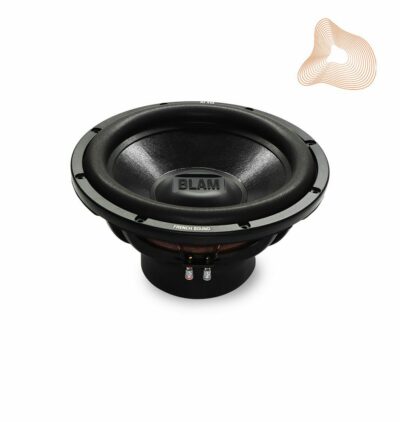

L30 DB PRO
The L30 DB PRO is a 12″ (30 cm) dual voice coil subwoofer designed for sealed enclosures from 20 to 50 liters. It offers a maximum power of 800 W, a sensitivity of 93.1 dB, and a frequency response of 45 to 500 Hz. Its aluminum basket, treated paper cone, dual 60 mm voice coils, and dual magnetic motors ensure powerful, precise, and sustained bass.
● 30 cm (12″) dual coil subwoofer
● Maximum power 800 W – sensitivity 93.1 dB
● Frequency response 45–500 Hz, ideal for 20–50 L sealed enclosures
● Treated paper membrane, aluminum bowl, double reel and double motor
● Dynamic, precise and long-lasting bass
✔ Expertise developed since 2013
✔ Immersion thanks to the French Sound
- 300 mm (12‘’) subwoofer
- Max. power 800 W / Nominal Power 400 W
- Frequency response 45 Hz – 500 Hz
- Impedance 2 x 2 Ω
- Sensitivity 93.1 dB
- Aluminum basket
- Treated paper membrane
- Foam surround
- Spider long life “Conex”
- 60 mm dual voice coil on aluminum former
- Double magnetic motor 140 x 20 mm
- Extended T-yoke
- Subwoofer optimized for 20 L to 50 L sealed enclosure
Recommended load volumes in closed box:
| Internal volumeCubic ftFbF-3dBBoost | ||||
|---|---|---|---|---|
| 20 L | 0.7 ft³ | 91 Hz | 55 Hz | 2.6 dB |
| 30 L | 1 ft³ | 86 Hz | 50 Hz | 1.8 dB |
| 50 L | 1.8 ft³ | 85 Hz | 47 Hz | 1.1 dB |
