Kit L200P – Power

Description

2-WAY COMPONENT SPEAKER SYSTEM

For those seeking the satisfaction of a speaker system with visceral impact and dynamics, the new BLAM L200P is for you.
Indeed, as its name indicates, the L200P POWER has been specially designed for those who want to fully enjoy their favorite rock or electro sounds.
Combined with a powerful amplifier, you will get a high sound level with deep but still well controlled bass that will allow you to relive the emotions of your favorite concerts.

Like all BLAM products, this line will allow you to access our “French Sound”, which not only enhances melodies and basses but also vocal melodies.

Technical specification

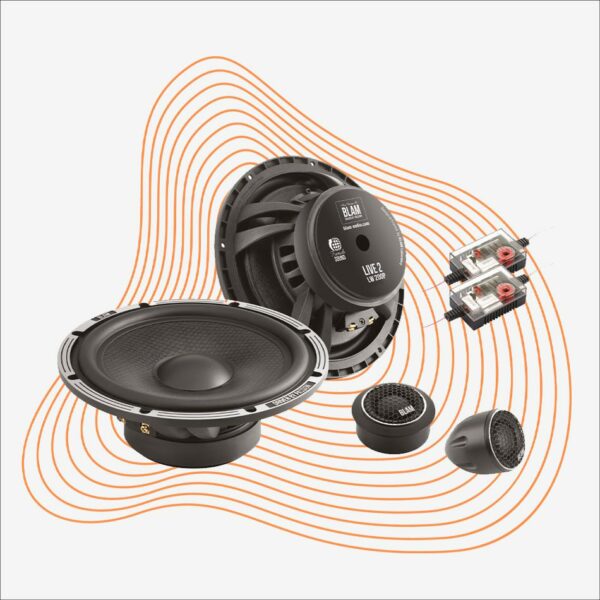

This kit is composed of two 200 mm (8″) woofers, two 25 mm (1″) soft dome tweeters and two 12 dB/octave audiophile high-pass crossovers.

High performance 2 way component speaker system
200 mm midrange woofer
Max Power 200 W – Nominal Power 100 W
Frequency response 40 Hz – 25 kHz
Sensitivity 94.4 dB – Impedance 2 Ω

Available in 2 versions:

L200P (complete kit with crossovers)
L200P Active (without crossover)

Also available in BLACK Edition (black woofers and tweeters)

Composition

L200P HIGH POWER WOOFER
200 mm (8″) woofer
Max power 200 W / Nominal power 100 W
Frequency response 40 Hz – 8 kHz
Sensitivity 94.4 dB – Impedance 2 Ω
Machined aluminium saladier – Epoxy resin and fiberglass membrane – Butyl surround – Long life “conex” spider – 38 mm voice coil on kapton former – 110 mm x 20 mm magnetic motor – 5 mm thick magnetic circuit

LT25 HIGH QUALITY TWEETER
High quality 25 mm soft dome tweeter
Maximum power 100 W – Nominal power 15 W
Frequency response 2.5 kHz – 25 kHz
Sensitivity 91.6 dB – Impedance 3 Ω
High efficiency neodymium motor N38

BFT02 HIGH QUALITY CROSSOVER
High pass 12 dB/octave crossover
Tweeter level adjustable to +3 dB, 0 dB or attenuated to -3 dB

Accessories included:
Mounting screws
Mounting accessories for tweeters
User manual

L200P DATA SHEET

1 file(s) 370.88 KB

Download
