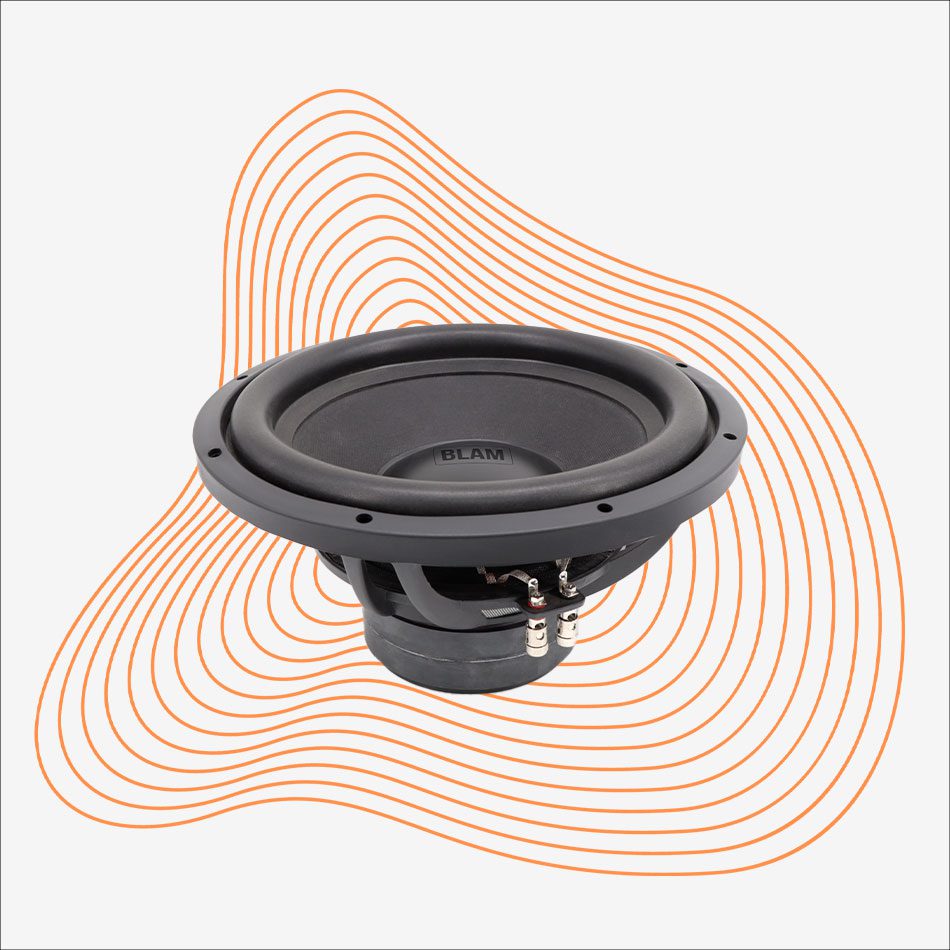

300 MM (12″) DUAL COIL SUBWOOFER
Technical specification
Power 800 W max / 400 W nominal
Frequency response 45 Hz to 500 Hz
Sensitivity 93.1 dB
Impedance 2 x 2 Ω
Composition
Aluminum basket
Treated paper membrane
Foam suspension
Long life “conex” spider
60 mm dual voice coil on aluminum former
Double magnetic motor 140 mm x 20 mm
Extended T-yoke
Subwoofer optimized for 20 L to 50 L sealed enclosure
Supplied accessories:
User manual
Recommended sealed enclosure:
| Internal Volume Vb | F -3 dB | Boost |
| 20 L | 49 Hz | 2.4 dB at 77 Hz |
| 30 L | 46 Hz | 1.7 dB at 73 Hz |
| 50 L | 43 Hz | 1.1 dB at 72 Hz |
Looking for Blam audio products? Find our resellers and distributors around the world.
Description
300 MM (12″) DUAL COIL SUBWOOFER
Technical specification
Power 800 W max / 400 W nominal
Frequency response 45 Hz to 500 Hz
Sensitivity 93.1 dB
Impedance 2 x 2 Ω
Composition
Aluminum basket
Treated paper membrane
Foam suspension
Long life “conex” spider
60 mm dual voice coil on aluminum former
Double magnetic motor 140 mm x 20 mm
Extended T-yoke
Subwoofer optimized for 20 L to 50 L sealed enclosure
Supplied accessories:
User manual
Recommended sealed enclosure:
| Internal Volume Vb | F -3 dB | Boost |
| 20 L | 49 Hz | 2.4 dB at 77 Hz |
| 30 L | 46 Hz | 1.7 dB at 73 Hz |
| 50 L | 43 Hz | 1.1 dB at 72 Hz |
Additional information
| GAMME | Live |
|---|---|
| TYPE | Without box |
| TAILLE | 300mm |
