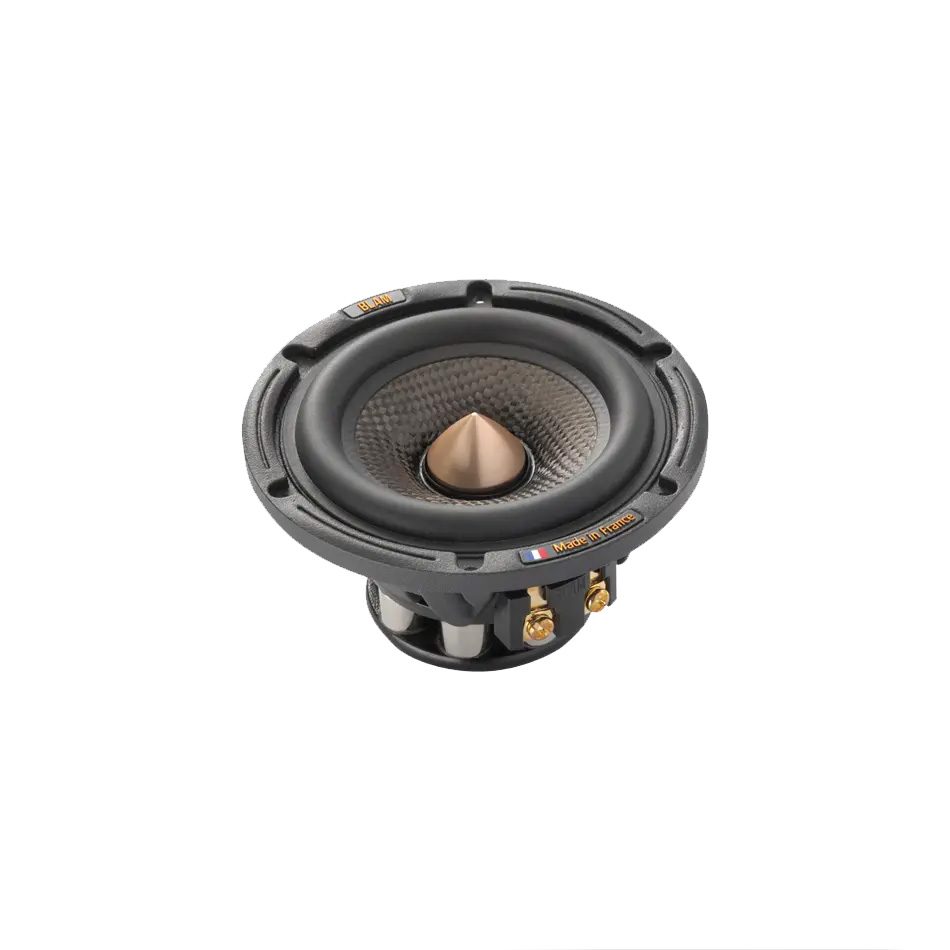

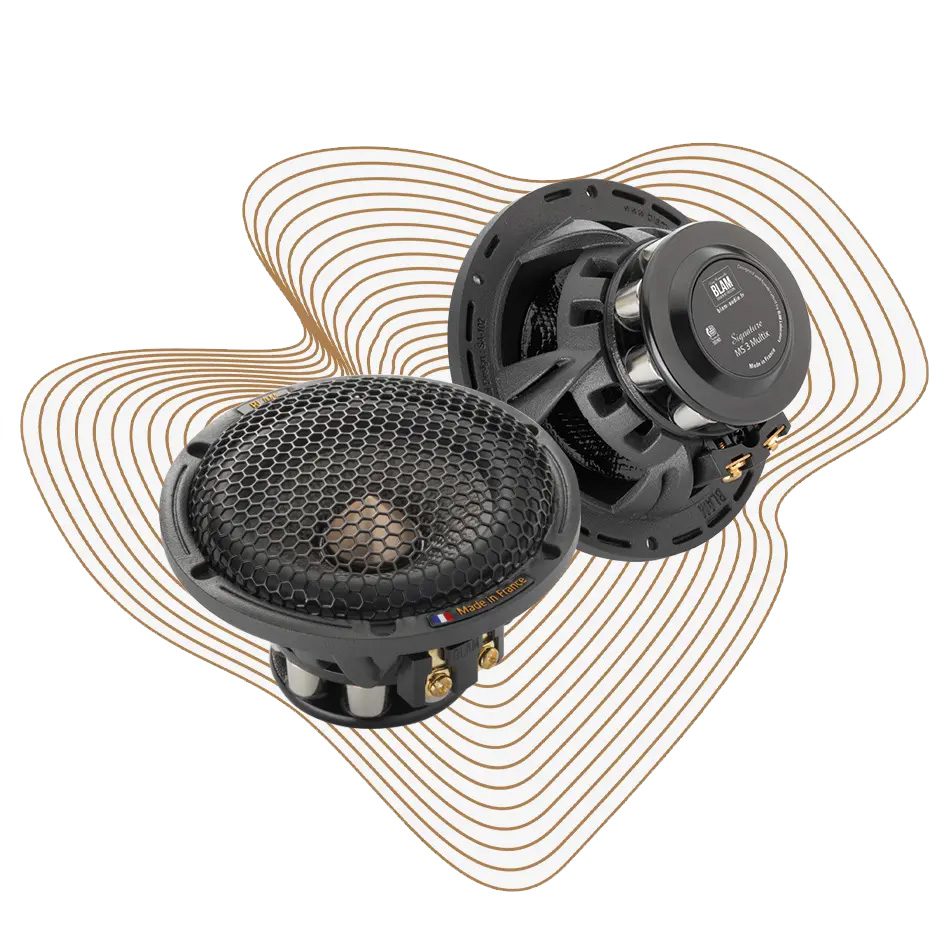

Midrange MS3
The 3-inch (80 mm) high-fidelity midrange has a maximum power of 100W and a nominal power of 50W. It offers a frequency response of 120 Hz to 32 kHz, a sensitivity of 88 dB and an impedance of 3 Ω. The mounting depth is 44.5 mm. This speaker is composed of a die-cast aluminum basket, an ultra-rigid carbon fiber membrane, a butyl NBR suspension, and a long-life “Conex” spider. It has a 20 mm voice coil on a fiberglass support, an ultra-powerful 8-stick neodymium motor, as well as a machined aluminum cone. The product is matched to +/- 1 dB to ensure sonic accuracy. It also features a copper Faraday ring on the T-yoke to limit the creation of eddy currents and is compatible with the MS 3 Multix.
High fidelity midrange with extended frequency
Technical specification
3’’ (80 mm) high fidelity speaker
Maximum power 100 W / Nominal power 50 W
Frequency response 120 Hz – 32 kHz
Sensitivity 88 dB – Impedance 3 Ω
Built-in depth 44.5 mm
Composition
Moulded aluminium basket – Ultra-rigid carbon-fibre membrane – NBR butyl surround – Long-life “Conex” spider – 20 mm voice coil on fiberglass former – Ultra-powerful 8-stick neodymium motor – Machined aluminium head – Paired products at +/-1 dB.
Copper Faraday ring on the T-yoke to limit the creation of Foucault currents
OS80 compatible with MS 3 Multix
| GAMME | Multix |
|---|---|
| TYPE | Full range |
| TAILLE | 80mm (3") |
| PRODUIT | Medium |
