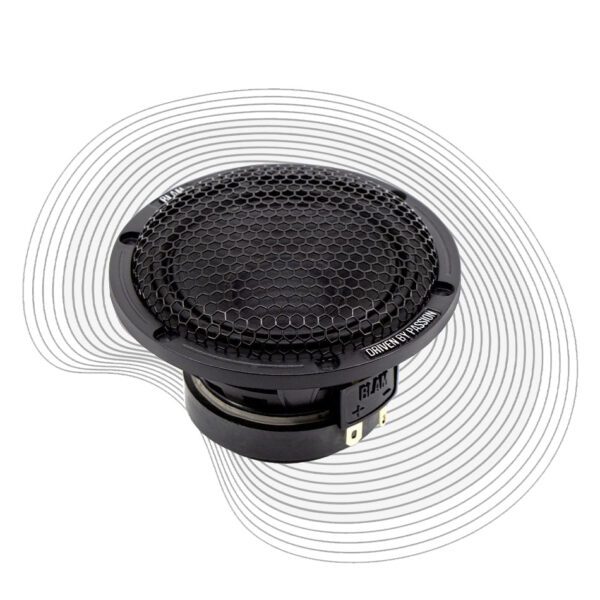

80 MM MEDIUM SPEAKER

Technical specification

This kit includes two 80 mm (3″) medium speakers

Max. power 100 W – Nominal power 25 W*.
Frequency response 150 Hz – 23 kHz
Sensitivity 86 dB – Impedance 3 Ω

*Depends on the cutoff frequency. 25 W RMS if filtered above 300 Hz at 12 dB/octave

Composition

R80 MEDIUM DRIVER 80 MM
Max. power handling 100 W – Nominal power handling 25 W* – Frequency response
Frequency response 150 Hz – 23 kHz
Sensitivity 86 dB – Impedance 3 Ω
Installation depth 45.5 mm (1.8″)

Composite basket reinforced in fiberglass – High quality treated cellulose pulp membrane – Butyl rubber surround – Long life “Conex” damper – 20 mm ‘0.8”) voice coil on fiberglass former – 55 mm x 10 mm (2.1” x 0.4”) ferrite magnet

Recommended minimum cut-off frequency 250 Hz 12 dB/octave

Supplied accessories :
Fixing screws
Protective grille
Operating instructions
