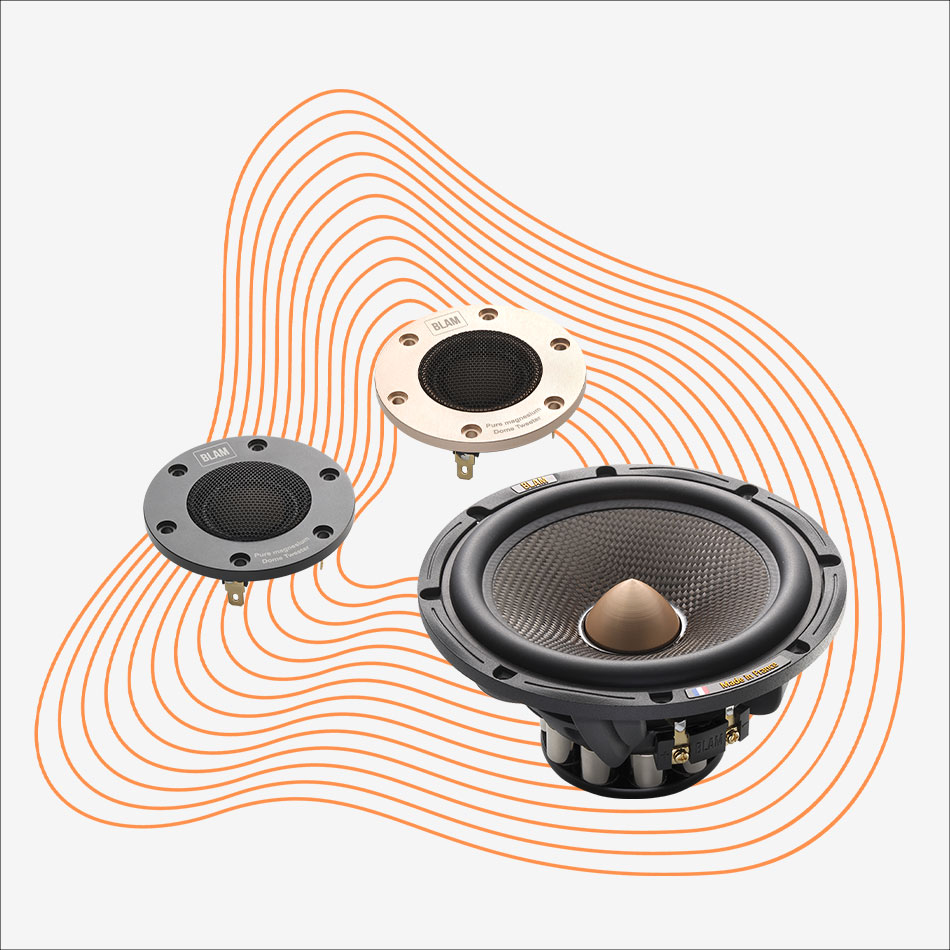

Multix S165 M2 MG

Description

Technical details

Available in two colors (gold & black).

This kit is composed of two 165 mm (6,5”) woofers, two 25 mm (1”) magnesium dome tweeters and two 12 dB/octave high-pass audiophile filters with adjustable tweeter level: +3dB, 0dB or -3dB

Composition

Woofer WS6 – HIGH POWER WOOFER
6-1/2” (165 mm) woofer
Maximum power : 250 W / Nominal power : 125 W
Frequency response: 80 Hz – 6 KHz
Sensitivity: 94 dB – Impedance: 2 Ω

Cast aluminium saladier – Ultra rigid 3K carbon fiber diaphragm – NBR perimeter suspension – Double spider with integrated braids – 38mm coil on fiberglass support – Oversized 10 bar neodymium magnet – Machined aluminium head – Gold plated terminal block – Paired products at +/- 1dB

Tweeter TSM25Mg 70 HR – HIGH RESOLUTION TWEETER
25 mm (1″) pure magnesium dome tweeter
Sensitivity: 89.8 dB – Impedance: 5 Ω
Ultra wide frequency response

Ultra-powerful neodymium ring magnet – Precision machined aluminum faceplate – Transparent protective grille – Low resonance rear chamber
Available in two colors: black and gold

Multix WT 2 Ways Filter – AUDIOPHILIC FILTER
High pass filter 12dB/octave
Adjustable tweeter level +3 dB, 0 dB and -3 dB
Audiophile components

S165 M2 MG DATA SHEET

1 file(s) 537.32 KB

Download
