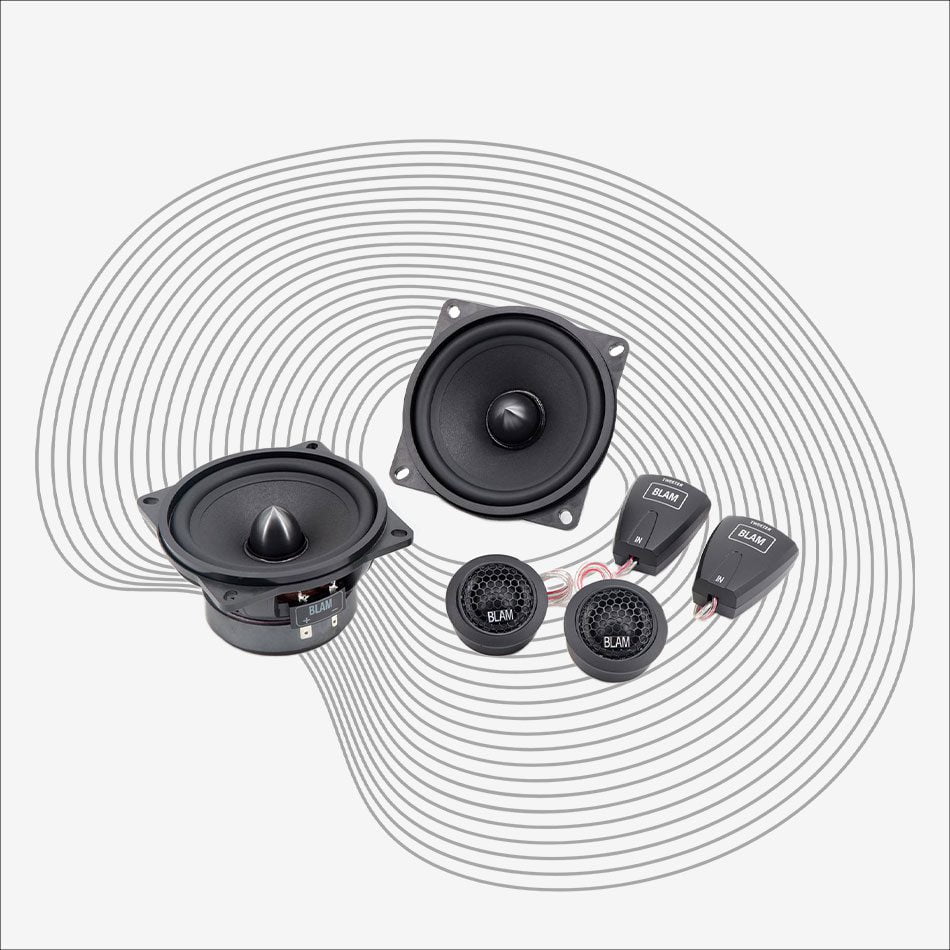

RELAX 100 RFS

Description

HIGH PERFORMANCE 2 WAY 100 MM “FRENCH SOUND” SYSTEM

Technical details

Max power 100 W – Nominal power 50 W
Frequency response 80 Hz – 30 kHz
Sensitivity 90.3 dB – Impedance 2 Ω

Composition

Woofer:
Original BLAM salad bowl made of glass fiber reinforced composite
High quality treated cellulose pulp membrane
Peripheral butyl suspension
Spider long life “Conex
25 mm coil on Kapton support
Ferrite motor 70 mm x 15 mm
Thick magnetic circuit (4 mm)

High quality 20 mm soft dome tweeter

6dB/octave high pass filter
Tweeter level adjustable to 0 dB or attenuated to -3 dB

Supplied accessories
Fixing screws
Mounting accessories for tweeters
Instructions for use

100 RFS DATA SHEET

1 file(s) 141.41 KB

Download
