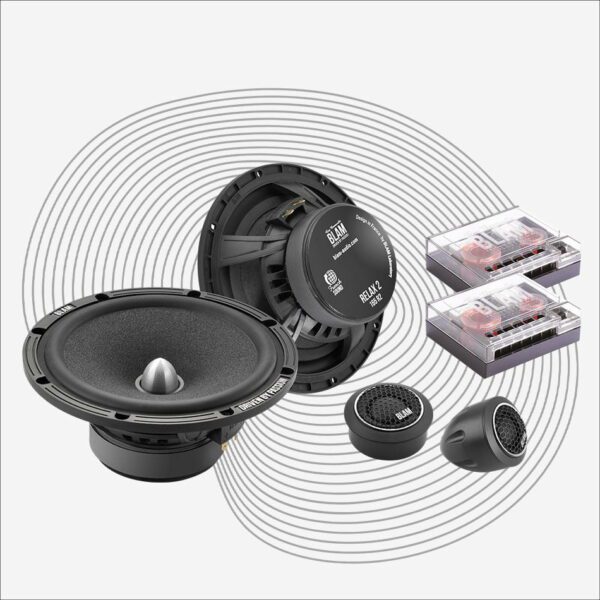

This kit is composed of two 165mm (6.5″) woofers, two 20mm (3/4″) soft dome tweeters and two 2-way crossovers: low-pass 6dB/octave and high-pass 12dB/octave with adjustable tweeter level -3dB, 0dB and +3dB.
High performance 2 way split system
165 mm woofer
Max Power 150 W – Nominal Power 75 W
Frequency response 60 Hz – 25 kHz
Sensitivity 95 dB – Impedance 2 Ω
Composition
2 Woofers :
Glass fiber reinforced composite salad bowl
High quality treated cellulose pulp membrane
Peripheral butyl suspension
Spider long life ” Conex
25 mm coil on Kapton support
Magnetic motor 85 mm x 17 mm
Thick magnetic circuit (5 mm)
2 Tweeters : RT20
High quality 20 mm soft dome tweeter
N38 neodymium motor
2-way filters: 6 dB/octave low-pass and 12 dB/octave high-pass with adjustable tweeter level -3 dB, 0 dB and +3 dB.
Accessories included:
Fixing screws
Mounting accessories for tweeters
Instructions for use
