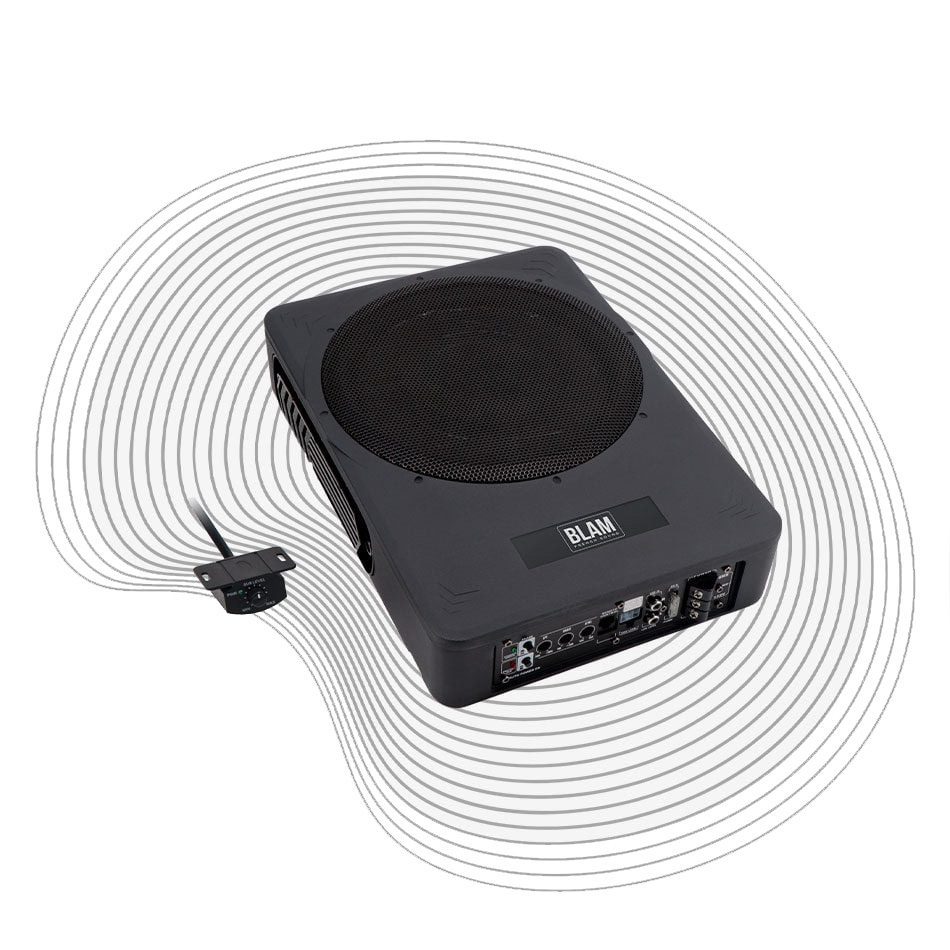

The MSA 25 P powered subwoofer is a high-performance solution for enhancing the bass in a factory audio system. It features a 25 cm die-cast aluminum subwoofer and a 360 W amplifier (180 W nominal power). Its frequency response extends from 50 Hz to 150 Hz, and it offers an adjustable Bass Boost from 0 to 12 dB. It is compatible with factory car radios thanks to high-level and RCA inputs. The subwoofer is also equipped with passive crossovers and phase control. Compact and easy to install, it comes with a wired remote control for volume adjustment.

MSA 25 P AMPLIFIED SUBWOOFER

Technical details

Extra-flat 25cm die-cast aluminum subwoofer with 360W integrated amplifier.

Composition

amplifier maximum power: 360W / nominal power 180W
compatible with most original car radios
high level inputs with automatic start-up
RCA inputs (6V compatible)
frequency response: 50 Hz – 150 Hz
bass boost (55Hz) adjustable from 0 to 12 dB
fixed subsonic filter: 20 Hz
LPF (low pass filter) 50Hz-150Hz / 12dB
phase adjustment: 0/180
supply voltage: 10.5-15.0 VDC
25 cm (10″) extra-flat subwoofer
2 Ω voice coil: 50 mm (2″)
wired volume control (5m cable)
dimensions: L 345 mm x h 245 mm x l 70 mm
weight: 5,5Kg

MSA 25 P DATA SHEET

1 file(s) 362.20 KB

Download
