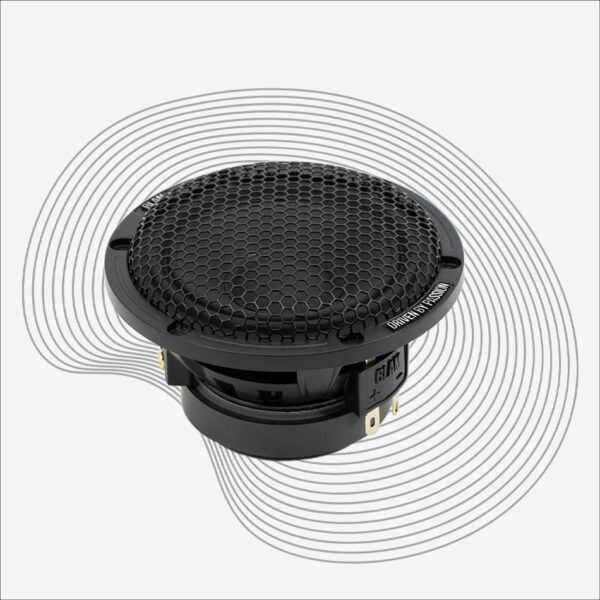

80 mm (3″) dual-coil midrange speaker
Technical details
Max Power 100 W – Nominal Power 25 W*.
Frequency response 150 Hz – 20 kHz
Sensitivity 86 dB – Impedance 2×3 Ω
*Depends on the cutoff frequency. 25 W RMS if filtered above 300 Hz at 12 dB/octave
Composition
R80 MEDIUM SPEAKER 80 MM
Max Power 100 W – Nominal Power 25 W*.
Frequency response 150 Hz – 20 kHz
Sensitivity 86 dB – Impedance 2×3 Ω
Mounting depth 45.5 mm (1.8″)
Glass fiber reinforced composite bowl – High quality cellulose pulp membrane – Peripheral butyl suspension – Long life spider “Conex” – 20 mm coil on fiberglass support – 55 mm x 10 mm ferrite motor
Recommended minimum cut-off frequency 250 Hz 12 dB/octave
Accessories included:
Fixing screws
Protection grid
Instructions for use
Description
80 mm (3″) dual-coil midrange speaker
Technical details
Max Power 100 W – Nominal Power 25 W*.
Frequency response 150 Hz – 20 kHz
Sensitivity 86 dB – Impedance 2×3 Ω
*Depends on the cutoff frequency. 25 W RMS if filtered above 300 Hz at 12 dB/octave
Composition
R80 MEDIUM SPEAKER 80 MM
Max Power 100 W – Nominal Power 25 W*.
Frequency response 150 Hz – 20 kHz
Sensitivity 86 dB – Impedance 2×3 Ω
Mounting depth 45.5 mm (1.8″)
Glass fiber reinforced composite bowl – High quality cellulose pulp membrane – Peripheral butyl suspension – Long life spider “Conex” – 20 mm coil on fiberglass support – 55 mm x 10 mm ferrite motor
Recommended minimum cut-off frequency 250 Hz 12 dB/octave
Accessories included:
Fixing screws
Protection grid
Instructions for use
Additional information
| GAMME | Relax |
|---|---|
| TYPE | Full range |
| TAILLE | 80mm |
