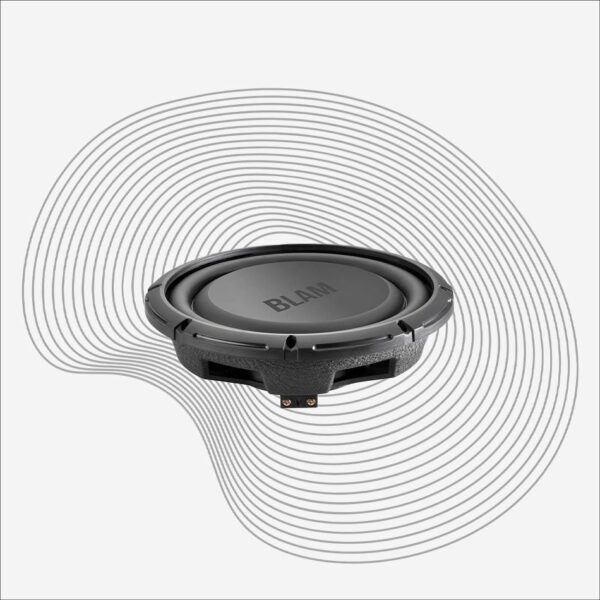

RS10.4 subwoofer
This ultra-slim RS10.4 250 mm (10″) subwoofer is ideal for installations with limited space thanks to its shallow 66 mm mounting depth. It delivers 300 W max (150 W RMS) with a frequency response of 35 Hz to 500 Hz. Its injected polypropylene cone, wide butyl surround, and 50 mm voice coil on an aluminum former ensure solid and precise bass.
● 250 mm (10″) extra-flat subwoofer – 300 W max / 150 W RMS
● Recessed depth: 66 mm
● Frequency response: 35 Hz – 500 Hz
● Impedance: 4 Ω – sensitivity 86.2 dB
● Recommended sealed enclosure: 10 L to 30 L (up to +5.0 dB at 75 Hz)
✔ Expertise developed since 2013
✔ Immersion thanks to the French Sound
SUBWOOFER EXTRA FLAT 250 MM RS10.4
- Recessed depth 66 mm
Power 300 W max / 150 W nominal - Frequency response 35 Hz to 500 Hz
- Sensitivity: 86.2 dB
- Impedance 4 Ω
- Steel basket
- Injected polypropylene membrane
- Large all-round butyl suspension
- Long life ” Conex” spider
- 50 mm coil on aluminium support
- Magnetic motor 126 mm x 15 mm
- Extended T-yoke
- Subwoofer optimized for closed cabinets from 10L to 40L
Recommended sealed enclosure:
| Internal Volume VbF -3dBBoost | ||
| 10L | 49 Hz | 5,0 dB à 75 Hz |
| 20L | 41 Hz | 3,4 dB à 65 Hz |
| 30L | 38 Hz | 2,7 dB à 61 Hz |
Downloads
Let yourself be transported by the French Sound
Let yourself be transported by the French Sound
| GAMME | Relax |
|---|---|
| TYPE | Without box |
| TAILLE | 250mm (10") |
| PRODUIT | Subwoofer |
