Driven by passion

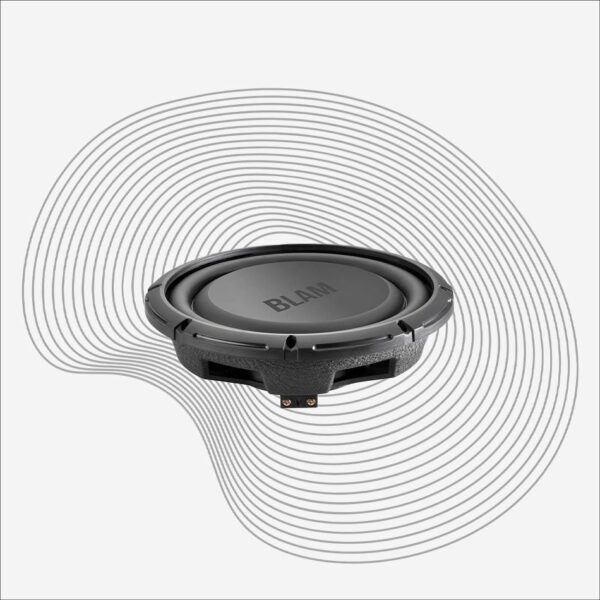

SUBWOOFER EXTRA FLAT 250 MM RS10.4
Technical details
Installation depth 66 mm
Power 300 W max / 150 W nominal
Frequency response 35 Hz to 500 Hz
Sensitivity: 86.2 dB
Impedance 4 Ω
Composition
Steel salad bowl
Injected polypropylene membrane
Large all-round butyl suspension
Spider long life ” Conex
50 mm coil on aluminium support
Magnetic motor 126 mm x 15 mm
Flared fleece piece
Subwoofer optimized for closed cabinets from 10L to 40L
Accessories included:
Fixing screws
Instructions for use
Recommended closed box:
| Internal Volume Vb | F -3dB | Boost |
| 10L | 49 Hz | 5.0 dB at 75 Hz |
| 20L | 41 Hz | 3.4 dB at 65 Hz |
| 30L | 38 Hz | 2.7 dB at 61 Hz |
Looking for Blam audio products? Find our resellers and distributors around the world.
Description
SUBWOOFER EXTRA FLAT 250 MM RS10.4
Technical details
Installation depth 66 mm
Power 300 W max / 150 W nominal
Frequency response 35 Hz to 500 Hz
Sensitivity: 86.2 dB
Impedance 4 Ω
Composition
Steel salad bowl
Injected polypropylene membrane
Large all-round butyl suspension
Spider long life ” Conex
50 mm coil on aluminium support
Magnetic motor 126 mm x 15 mm
Flared fleece piece
Subwoofer optimized for closed cabinets from 10L to 40L
Accessories included:
Fixing screws
Instructions for use
Recommended closed box:
| Internal Volume Vb | F -3dB | Boost |
| 10L | 49 Hz | 5.0 dB at 75 Hz |
| 20L | 41 Hz | 3.4 dB at 65 Hz |
| 30L | 38 Hz | 2.7 dB at 61 Hz |
Additional information
| GAMME | Relax |
|---|---|
| TYPE | Without box |
| TAILLE | 250mm |
