Signature S 100N24+

Description

TWO-WAY SYSTEM

Technical details

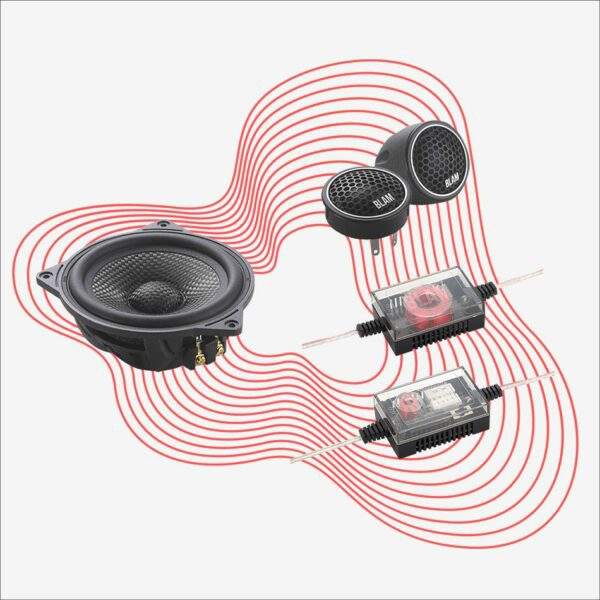

Component kit dedicated to Mercedes & BMW (with adaptor spacers) containing two 100mm (4″) midrange drivers, two 20mm (3/4″) soft dome tweeters and two capacitors.

Composition

MS 4N 24 HIGH FIDELITY MIDRANGE
Ultra flat medium 100 mm (4”)
Max power 120W/ RMS power 60W
Frequency response 95 Hz – 9kHz
Sensitivity 88dB – Impedance 3 Ω

Moulded aluminium saladier – Ultra rigid carbon fiber diaphragm – Butyl perimeter suspension – Long life “conex” spider – 25 mm spool on fiberglass support – Ultra powerful neodymium magnet (N38H) – Machined T-Yoke

TS 20 HR HIGH RESOLUTION TWEETER
20 mm (3/4”) soft dome diaphragm
Frequency response 2.5 kHz- 43 kHz
Sensitivity 88.3 dB – Impedance 5 Ω

Compact mounting dimensions – High efficiency magnet (N38H neodymium) – Ferrofluid for high power handling – Inclined mounting bracket.

BFT 01 HIGH QUALITY FILTER
12 dB/octave high-pass filter
Adjustable tweeter level +3 dB, 0 dB or -3 dB

BFW 01 HIGH QUALITY FILTER
Low pass filter 6 dB/octave
