Signature S 200.100

Description

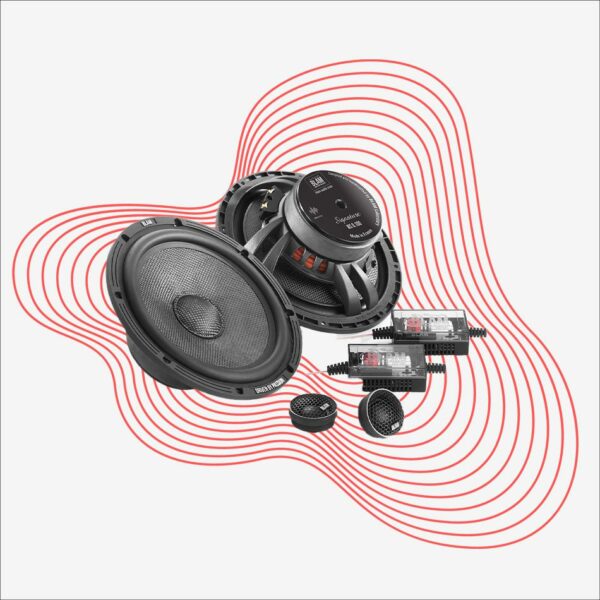

2-WAY SPEAKER SYSTEM

Technical details

The system includes two 200 mm woofers, two 25 mm tweeters
soft dome and two external 12 dB/octave crossovers with tweeter level
adjustable: +3 dB, 0 dB or -3 dB.

Composition

WS 8.100 HIGH POWER MID-WOOFER
– 200 mm woofer
– Installation depth 67 mm
– Maximum power 300 W / Nominal power 150 W
– Frequency response 50 Hz – 3.8 kHz
– Sensitivity 93.4 dB – Impedance 2 Ω
Moulded aluminium saladier – Ultra rigid carbon fiber membrane –
Peripheral suspension NBR – Spider long life “conex” – 38″ spool
mm on fiberglass support – Oversized magnetic motor 100
× 20 mm – Gold-plated terminal block.

TSM 25 S 45 HIGH DEFINITION TWEETER
– 25 mm soft dome tweeter
– Maximum power 100 W / Nominal power 15 W
– Frequency response 2.5 kHz – 30 kHz
– Sensitivity 90.7 dB – Impedance 5 Ω
– Mounting depth 14.5 mm
N38 high efficiency neodymium magnet – Aluminum faceplate
high precision machined – Transparent protection grid – Support for
inclined mounting provided – Products matched at +/- 1dB.

BFT01 HIGH QUALITY FILTER
– 12 dB/octave high-pass filter
– Tweeter level adjustable to +3 dB, 0 dB or -3 dB
– Crossover frequency: 4.5 kHz
