LFR52 speaker
The LFR52 is a 50 mm (2″) high-resolution full-range loudspeaker designed to reproduce accurate sound across a frequency range of 200 Hz to 45 kHz. It offers a maximum power handling of 50 W and a nominal power handling of 25 W, with a sensitivity of 85 dB and an impedance of 4 Ω. Its die-cast aluminum basket, fiberglass composite cone, and neodymium ring magnet ensure clear and dynamic reproduction, optimized for sealed enclosures from 50 to 500 mL. The recommended crossover frequency is 250 Hz at 12 dB/octave.
● 50 mm (2″) high-resolution wideband
● Maximum power 50 W – nominal 25 W, sensitivity 85 dB
● Frequency response 200 Hz – 45 kHz, impedance 4 Ω
● Fiberglass membrane, neodymium motor, aluminum bowl

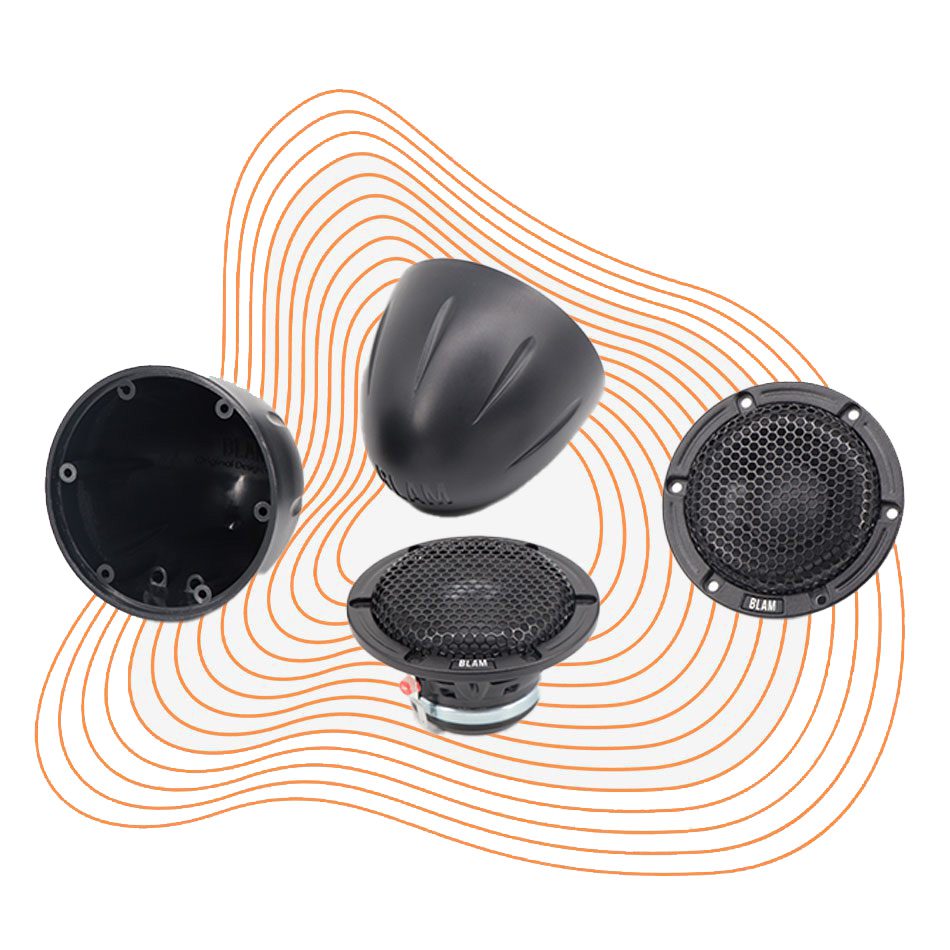

● Included accessories: screws, grille, ABS angled enclosure and 100 µF capacitor
✔ Expertise developed since 2013
✔ Immersion thanks to the French Sound
- 50 mm (2″) high resolution full range speaker
- Maximum power 50W – Nominal power 25W
- Frequency response 200 Hz – 45 kHz
- Sensitivity 85 dB – Impedance 4 Ω
- Depends on the cutoff frequency. 25W RMS if filtered above 300 Hz at 12 dB/octave
- 50 mm (2″) speaker
- Max power 50 W / Nominal power 25 W
- Frequency response 200 Hz – 45 kHz
- Sensitivity 85 dB – Impedance 4 Ω
Original BLAM cast aluminum basket – Fiberglass and epoxy resin composite membrane – Butyl perimeter surround – Long life “Nomex” spider – 20 mm voice coil on aluminum former – Ultra powerful motor with 40 mm x 5 mm neodymium ring – T-yoke equipped with a copper Faraday ring
Optimized for operation in a closed volume of 50 mL to 500 mL
Minimum recommended cutoff frequency: 250 Hz at 12 dB/octave
Downloads
Let yourself be transported by the French Sound
Let yourself be transported by the French Sound
| GAMME | Live |
|---|---|
| TYPE | Full range |
| TAILLE | 50mm (2") |
| PRODUIT | Woofer |
