KIT SR 6952

KIT SR 6952

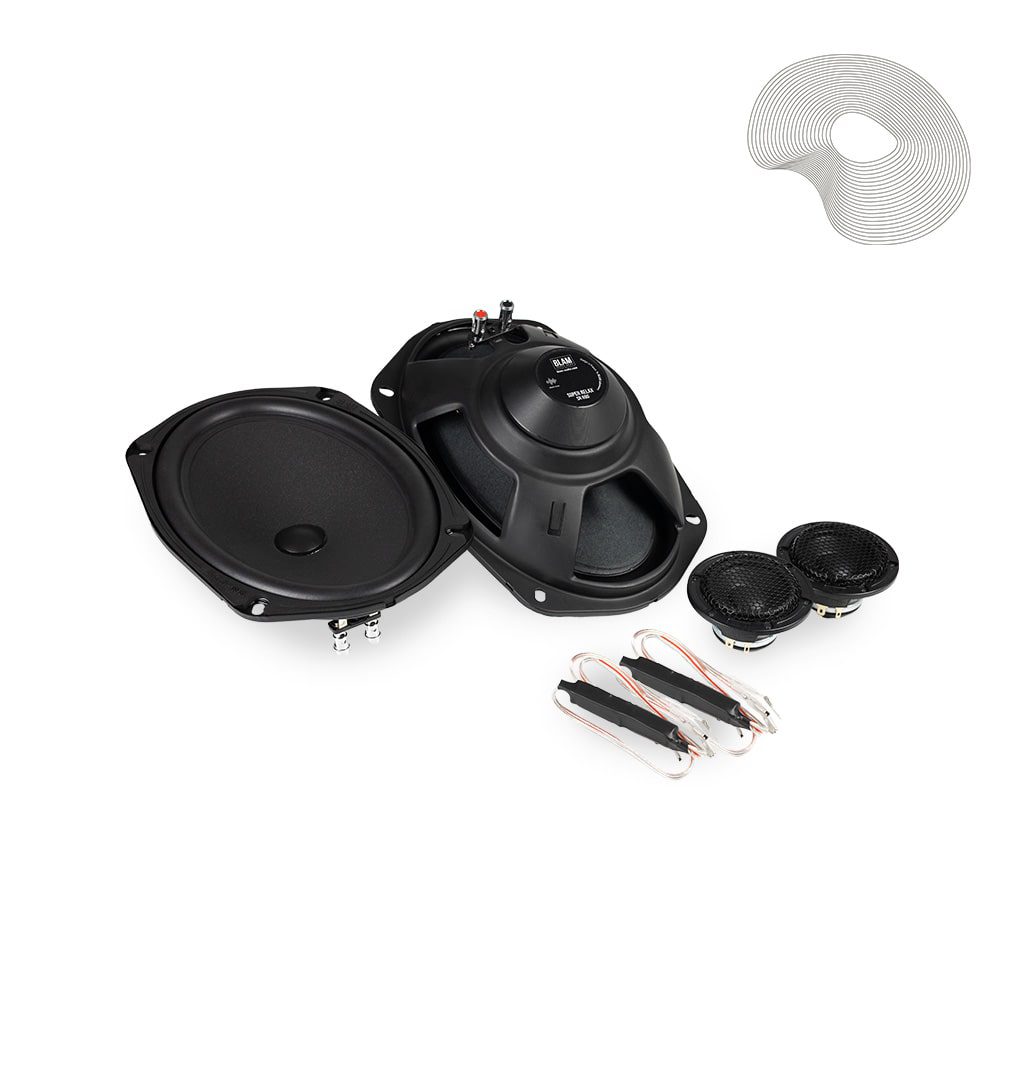

Composed of a 6″ x 9″ woofer and a 50 mm full-range speaker, the SR 6952 KIT offers a power of 150 W max, an extended frequency response (60 Hz – 25 kHz) and a high sensitivity of 91 dB. Designed with premium components (cellulose membrane, neodymium motor, integrated filters), it guarantees precise and dynamic sound reproduction.

VIEW DISTRIBUTORS

KIT SR 6952 – high-efficiency speaker system

FEATURES

Kit 2 separate ways

  • Max. power 150W – Nominal power 75W
  • Frequency response 60 Hz – 25 kHz
  • Impedance 3 Ohms
  • Sensitivity 91 dB



SR 690 6” x 9” Woofer

  • High quality treated cellulose pulp membrane
  • Peripheral butyl surround
  • Long-life Sider “Conex”
  • 25 mm voice coil on Kapton former
  • Compact neodymium motor
  • Built-in 6dB/octave low-pass filter



Medium 50mm full-range loudspeaker SR 52

  • Frequency response 250 Hz – 25 kHz
  • Sensitivity 86 dB – Impedance 3 Ohms
  • Treated cellulose pulp membrane
  • Peripheral butyl surround
  • 20 mm coil on aluminum support
  • Ultra powerful motor with neodymium ring



Crossovers

  • High-pass crossover for the wideband medium
  • High-pass crossover for an optional tweeter



TECHNICAL DATA SHEET :

Icon

SR 690

1 file(s) 608.67 KB
Download
Icon

SR 52

1 file(s) 1.85 MB
Download
