MSA 20 powered cabinet

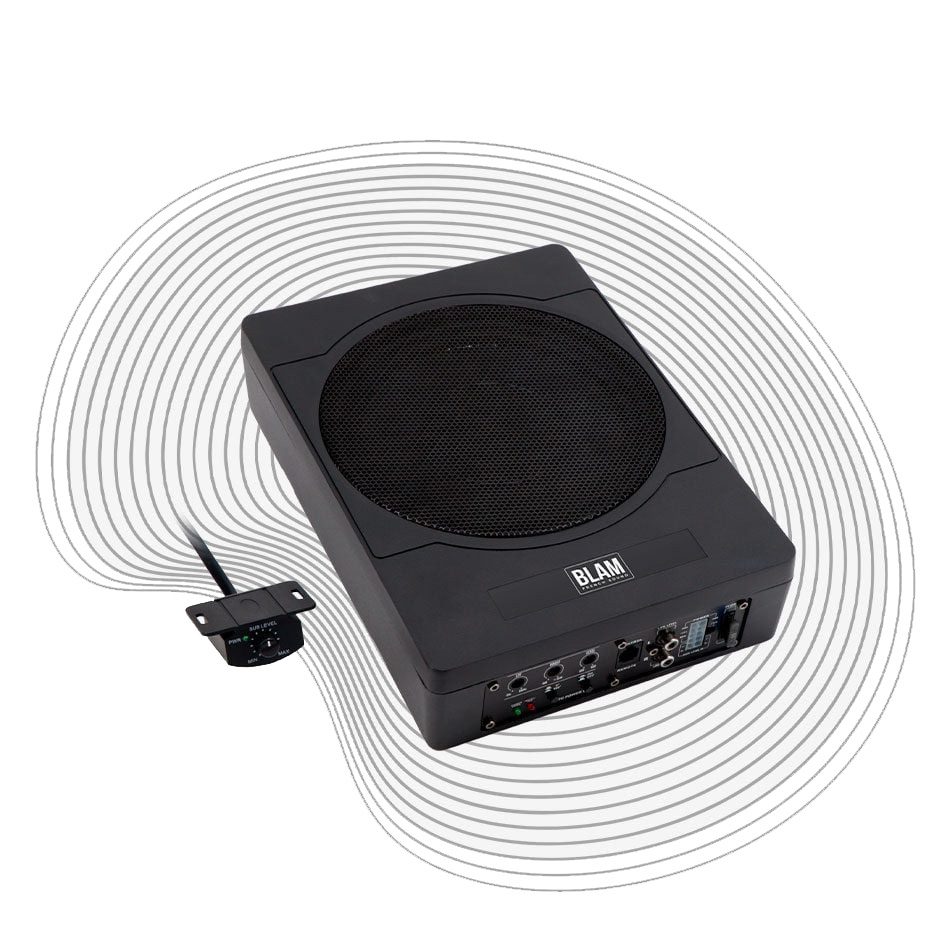

MSA 20 EXTRA-FLAT POWERED CABINET

Technical details

Complete solution to easily add bass to an original system.
20 cm extra-flat die-cast aluminum subwoofer with integrated 240 W amplifier



Composition

  • Amplifier: Maximum power 240 W / Nominal power 120 W
  • Compatible with most original car radios
  • High level inputs with automatic start-up
  • RCA inputs
  • Frequency response: 50 Hz – 150 Hz
  • Bass boost (45Hz) adjustable from 0 to 12 dB
  • Fixed subsonic filter: 20 Hz
  • LPF (low pass filter): 50 Hz- 150 Hz / 12dB
  • Phase adjustment: 0/180
  • Supply voltage: 10 – 16 VDC
  • Extra-flat 20 cm (8″) subwoofer
  • Moving coil: 2 Ω 50 mm (2”)
  • Wired volume control (5 m cable)
  • Dimensions: W 290 mm x H 210 mm x L 65 mm
  • Weight : 3.9 Kg



Supplied accessories

Instructions for use
Wired remote control
