SUPERSUB MB 812
SUPERSUB MB 812 - Image 2

SUPERSUB MB 812

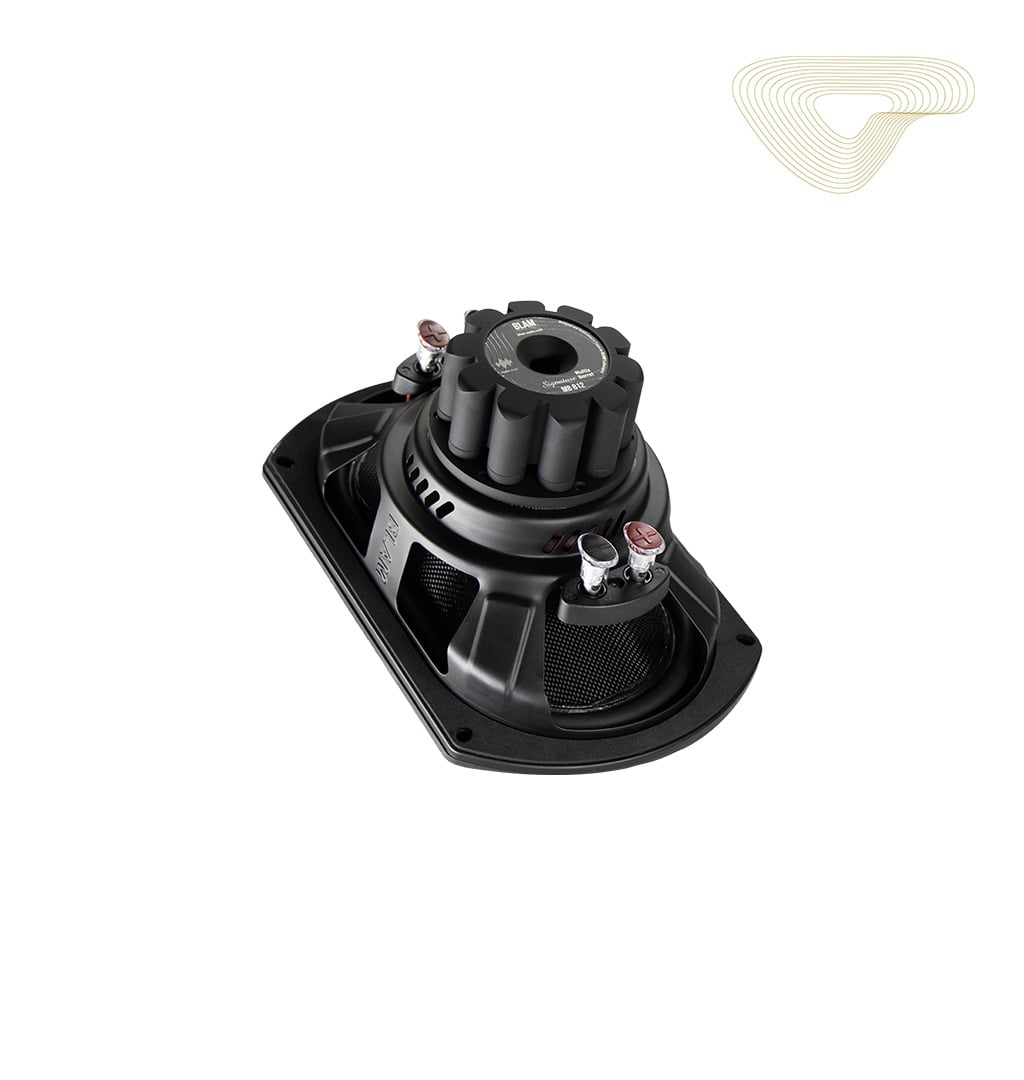

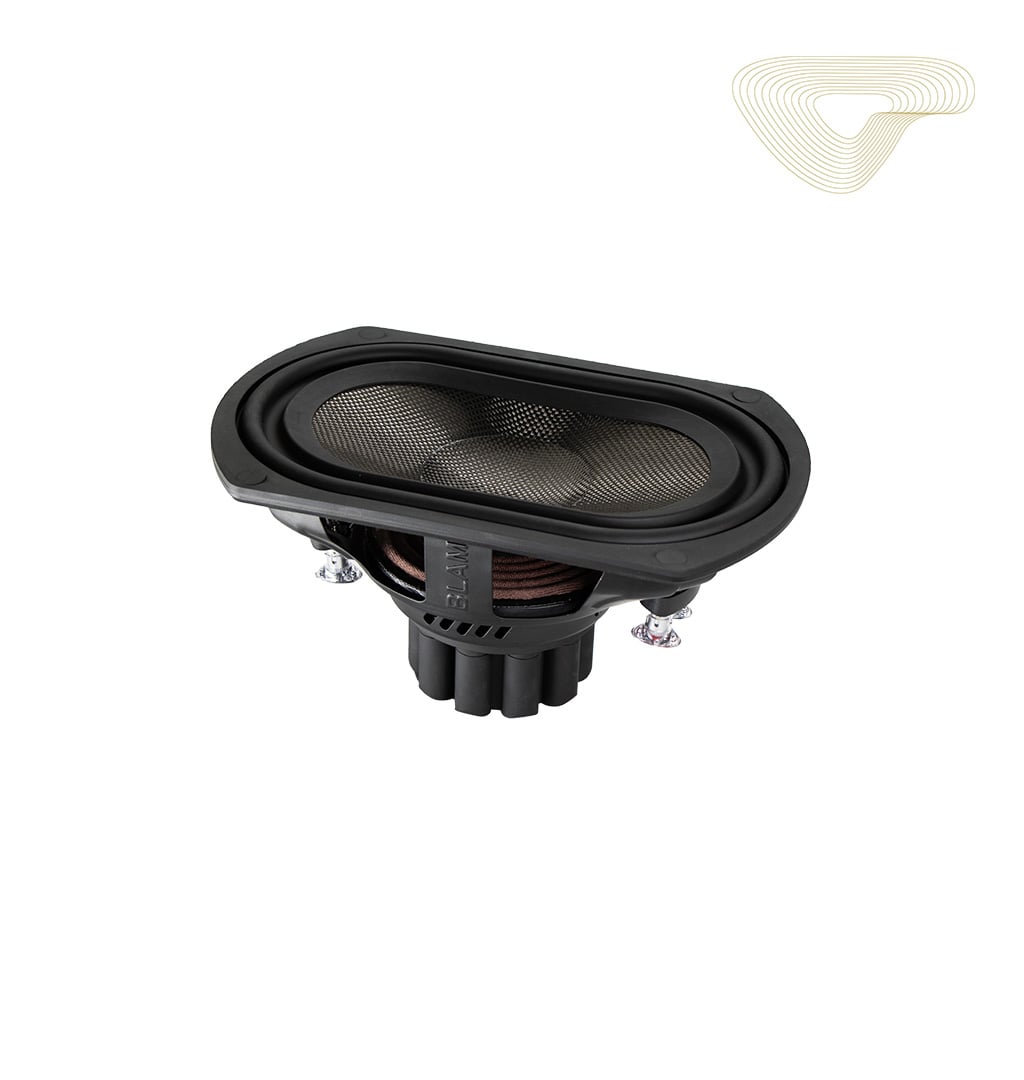

The MB 812, equipped with a Multix Barrel motor built around 10 neodymium droplet magnets, a 50 mm diameter voice coil and a height of 29 mm, allows it to reproduce deep bass, even at high volumes. Housed in a small volume sealed enclosure, it is able to reproduce each impact in a controlled and powerful manner. With 1000W maximum power and 500W nominal power, it will satisfy both audiophiles and lovers of modern sounds.

VIEW DISTRIBUTORS

SUPERSUB MB 812

FEATURES

  • Supersub 203 x 304 mm (8’’ x 12’’)
  • Max. power 1000 W / Nominal power 500 W
  • Frequency response 30 Hz – 500 Hz
  • Impedance 2 x 2 Ω
  • Neodymium magnet
  • Magnet dimensions Ø x H: 10 neodymium teardrop magnets
  • Moving coil Ø 50 mm
  • Voice coil height 29 mm



TECHNICAL DATA SHEET :

Icon

MB 812

1 file(s) 700.67 KB
Download

Looking for Blam audio products?
Find our resellers and distributors around the world.

Installers
Distributors

SUPERSUB MB 812

FEATURES

  • Supersub 203 x 304 mm (8’’ x 12’’)
  • Max. power 1000 W / Nominal power 500 W
  • Frequency response 30 Hz – 500 Hz
  • Impedance 2 x 2 Ω
  • Neodymium magnet
  • Magnet dimensions Ø x H: 10 neodymium teardrop magnets
  • Moving coil Ø 50 mm
  • Voice coil height 29 mm



TECHNICAL DATA SHEET :

Icon

MB 812

1 file(s) 700.67 KB
Download
GAMME

Multix Barrel
PRODUIT

Subwoofer
TAILLE

9'' x 12''
