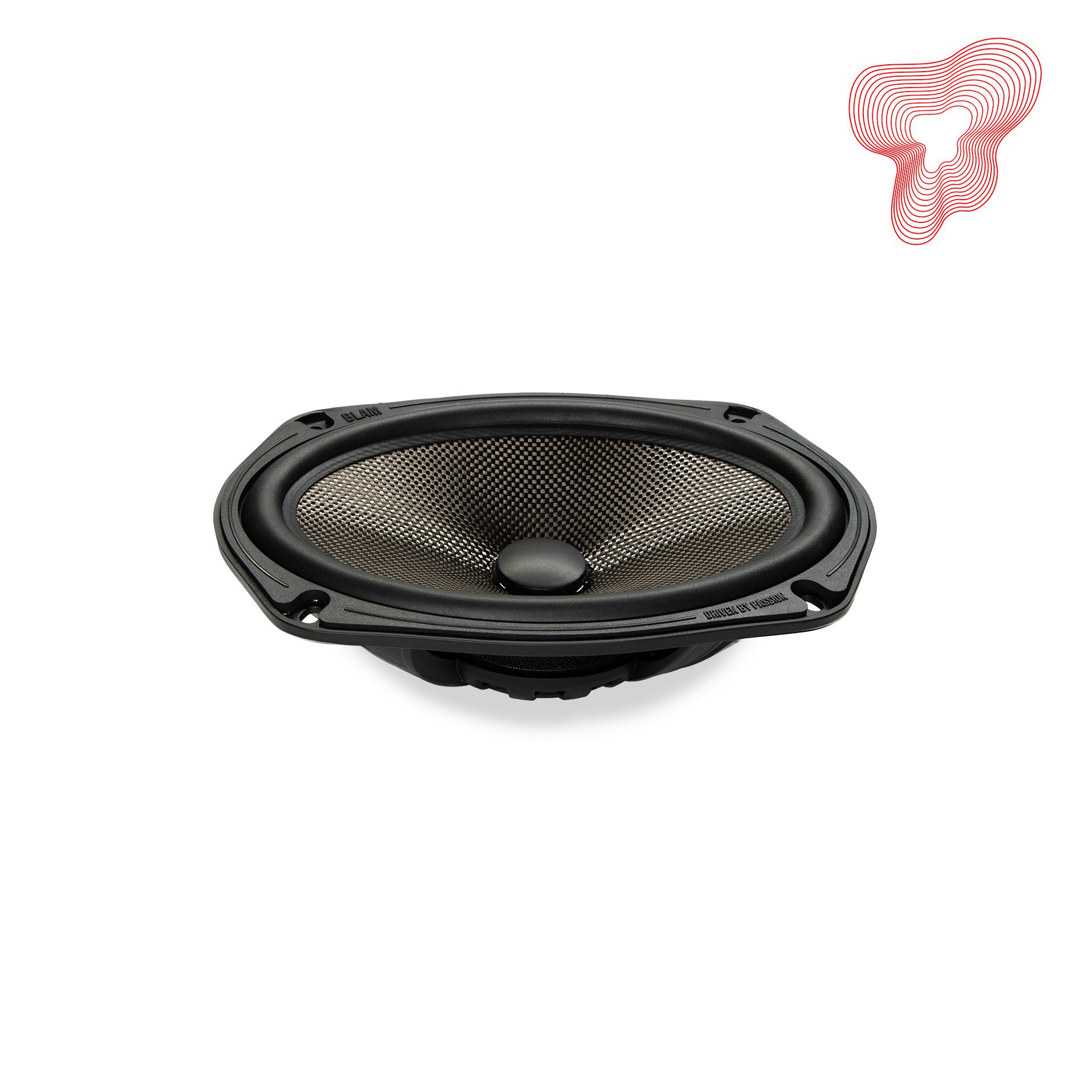

WOOFER S6.90S
The S6.90S woofer is a slim and shallow 6 x 9’’ (150 x 230 mm) speaker, ideal for installations with limited space without compromising on sound quality. Featuring a high sensitivity of 94.2 dB, it delivers powerful and dynamic sound with a maximum power of 150 W (75 W nominal). Designed with premium materials — ultra-rigid carbon fiber cone, die-cast aluminum basket, IIR surround and long-lasting “conex” spider — it guarantees high precision and excellent durability. Its 34 mm voice coil mounted on a fiberglass support and its high-performance magnetic motor ensure faithful reproduction of frequencies from 60 Hz to 8 kHz.
S6.90S THIN AND SHALLOW WOOFER HIGH SENSITIVITY
• Woofer 6 x 9‘‘ (150 x 230 mm)
• Max power 150 W / Nom. power 75 W
• Frequency response 60 Hz – 8 KHz
• Sensitivity 94.2 dB
• Impedance 3 Ohms

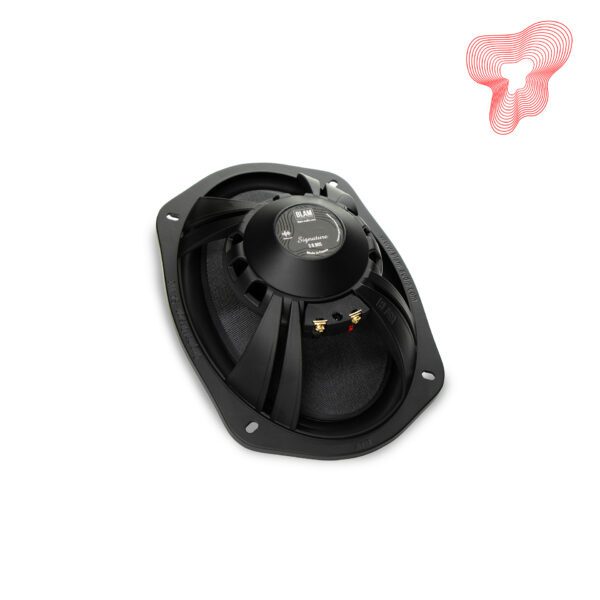

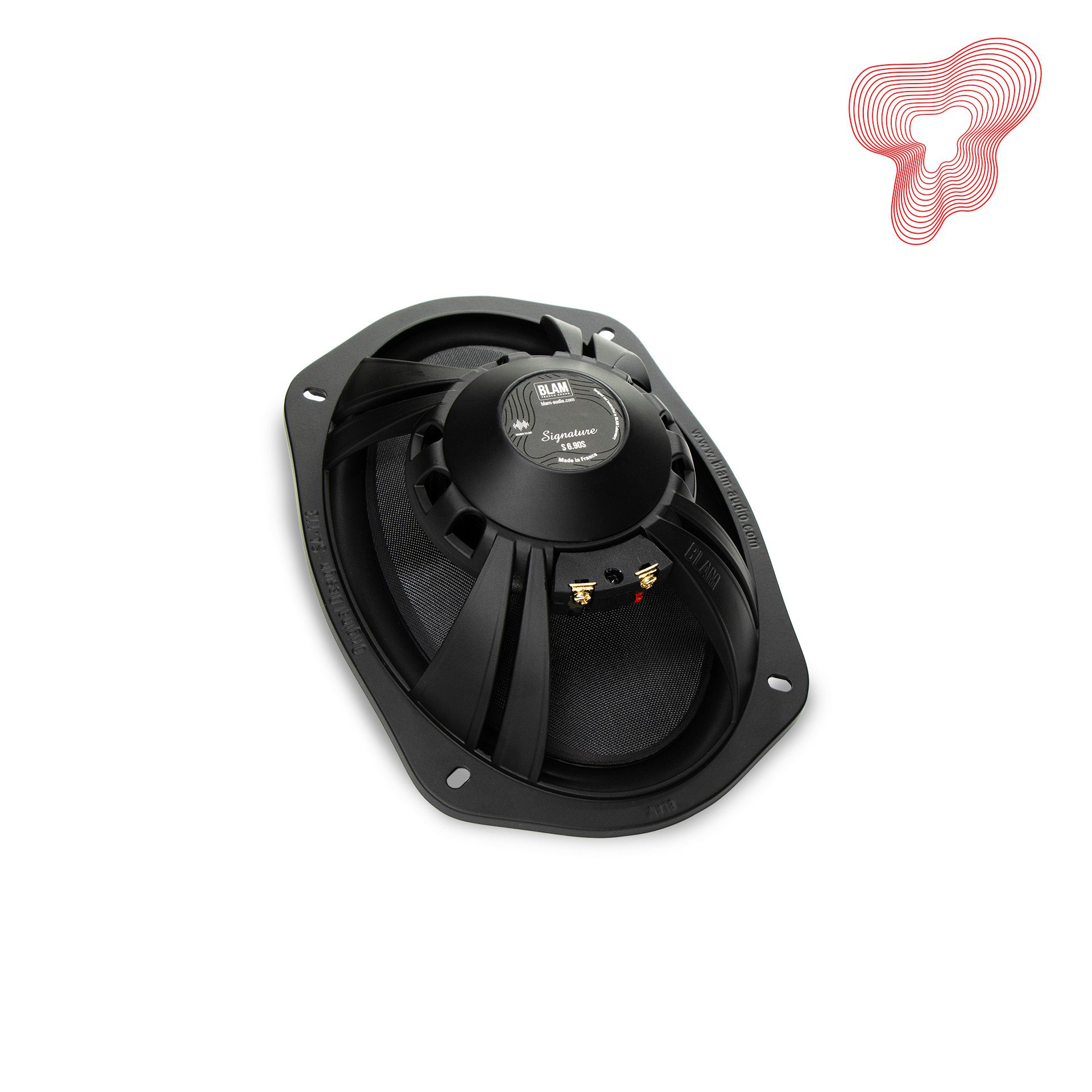

Die-cast aluminum basket – Ultra-rigid carbon fiber cone – IIR surround – Long-life “conex” spider – 34 mm voice coil, fiberglass support – 78 mm x 18 mm magnet motor – Machined pole pieces – Gold-plated terminal.
TECHNICAL DATA SHEET :
Looking for Blam audio products?
Find our resellers and distributors
around the world.
S6.90S THIN AND SHALLOW WOOFER HIGH SENSITIVITY
• Woofer 6 x 9‘‘ (150 x 230 mm)
• Max power 150 W / Nom. power 75 W
• Frequency response 60 Hz – 8 KHz
• Sensitivity 94.2 dB
• Impedance 3 Ohms
Die-cast aluminum basket – Ultra-rigid carbon fiber cone – IIR surround – Long-life “conex” spider – 34 mm voice coil, fiberglass support – 78 mm x 18 mm magnet motor – Machined pole pieces – Gold-plated terminal.
TECHNICAL DATA SHEET :
TYPE | 1 way |
---|---|
GAMME | Signature |
TAILLE | 152mm x 229mm (6" x 9") |
PRODUIT | Woofer |
