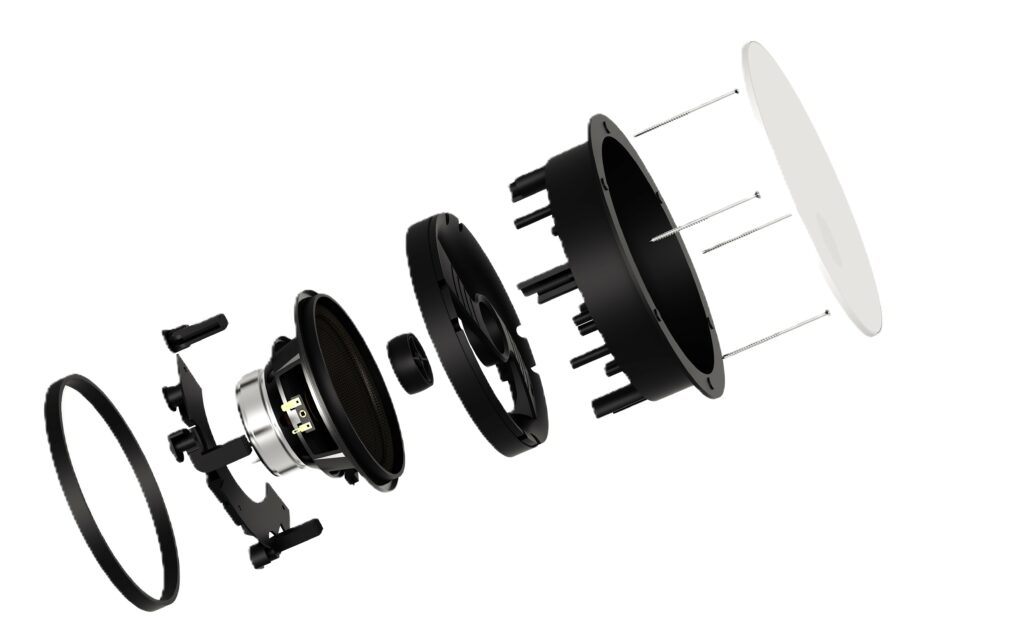

IN-CEILING RECESSED CEILING SPEAKER
165mm high-fidelity in-ceiling speaker with adjustable coaxial tweeter for immersive and precise sound diffusion
IN-CEILING RECESSED CEILING SPEAKER
165mm high-fidelity in-ceiling speaker with adjustable coaxial tweeter for immersive and precise sound diffusion
Composite basalt membrane
Adjustable tweeter level
Removable magnetic grid to paint
Adjustable tweeter
► Technical characteristics
| Crossover | Passive (Cutoff frequency: 3 kHz) |
| Transducer | 165 mm mid-woofer + 25 mm coaxial tweeter |
| nominal impedance | 4 Ohms |
| Sensibilité | 89 dB/1W/1m |
| Maxiaml power | 120 W |
| RMS power | 60 W |
| Frequency response | 45 Hz – 20 kHz |
| External dimensions (L x H x P) | 230 x 120 mm |
| Recess diameter (L x H) | ∅ 200 mm |
| Recessed depth | 117,2 mm |
| Maximum thickness of the fixing plate | 45 mm |
| Net weight (with grid) | 1,8 kg |
our BLAM speakers
Our speaker design is based on a philosophy of neutrality and power, particularly in the mid-range frequency band. The objective is to study the speakers in order to obtain the most linear frequency response possible, with the aim of reproducing the most natural sound possible, without coloration. This natural linearity allows the use of simple filters with gentle attenuation slopes promoting a perfect fusion between the speakers. Each speaker has been developed to operate ideally in the volume of the speakers it integrates. The combination of generous motors with large diameter voice coils results in a high power handling of our products.
3 PRESET SETTINGS
Hi-fi mode
This listening favors neutrality and respect for timbres. DSP digital processing is not used in favor of passive filtering. Thus, we maintain the tonal balance of the product for a demanding hi-fi approach.
Mode Home Theatre
This mode was developed to provide you with the ideal cinematic sound experience. The focus here is on the low-frequency range, while highlighting dialogue and spatial effects. In addition, the stereo image is expanded using high-performance digital processing to maximize immersion.
Mode Power
If you want to use your speakers to play at high volume, this mode is ideal! By applying a cutoff frequency in the bass at 70Hz, the amplification is less requested for the benefit of a higher general gain. This dynamic listening is ideally accompanied by the addition wireless subwoofers for powerful bass.
CONNECTORS
TECHNICAL SHEETS
Composite basalt membrane
Adjustable tweeter level
Removable magnetic grid to paint
Adjustable tweeter
► Technical characteristics
| Crossover | Passive (Cutoff frequency: 3 kHz) |
| Transducer | 165 mm mid-woofer + 25 mm coaxial tweeter |
| nominal impedance | 4 Ohms |
| Sensitivity | 89 dB/1W/1m |
| Maxiaml power | 120 W |
| RMS power | 60 W |
| Frequency response | 45 Hz – 20 kHz |
| External dimensions (L x H x P) | 230 x 120 mm |
| Recess diameter (L x H) | ∅ 200 mm |
| Recessed depth | 117,2 mm |
| Maximum thickness of the fixing plate | 45 mm |
| Net weight (with grid) | 1,8 kg |
our BLAM speakers
Our speaker design is based on a philosophy of neutrality and power, particularly in the mid-range frequency band. The objective is to study the speakers in order to obtain the most linear frequency response possible, with the aim of reproducing the most natural sound possible, without coloration. This natural linearity allows the use of simple filters with gentle attenuation slopes promoting a perfect fusion between the speakers. Each speaker has been developed to operate ideally in the volume of the speakers it integrates. The combination of generous motors with large diameter voice coils results in a high power handling of our products.
3 PRESET SETTINGS
Hi-fi mode
This listening favors neutrality and respect for timbres. DSP digital processing is not used in favor of passive filtering. Thus, we maintain the tonal balance of the product for a demanding hi-fi approach.
Mode Home Theatre
This mode was developed to provide you with the ideal cinematic sound experience. The focus here is on the low-frequency range, while highlighting dialogue and spatial effects. In addition, the stereo image is expanded using high-performance digital processing to maximize immersion.
Mode Power
If you want to use your speakers to play at high volume, this mode is ideal! By applying a cutoff frequency in the bass at 70Hz, the amplification is less requested for the benefit of a higher general gain. This dynamic listening is ideally accompanied by the addition wireless subwoofers for powerful bass.
CONNECTORS
TECHNICAL SHEETS
