Subwoofer Deep 812
The Deep 812 is a compact and powerful active subwoofer, equipped with an elliptical 20 x 30 cm (8 x 12″) driver. Its unique form factor allows for flexible installation (horizontal, vertical, or stacked), ideal for tight spaces while delivering high performance. It delivers up to 1000 W and reaches down to 30 Hz for deep, impactful bass.
● Elliptical subwoofer 20 × 30 cm (8 × 12″)
● Maximum power: 1000 W
● Bass response down to 30 Hz
● Flexible installation: horizontal, vertical or stacked
● Advanced neodymium technology for powerful and controlled bass
✔ Expertise developed since 2013
✔ Immersion thanks to the French Sound
SUBWOOFER DEEP 812

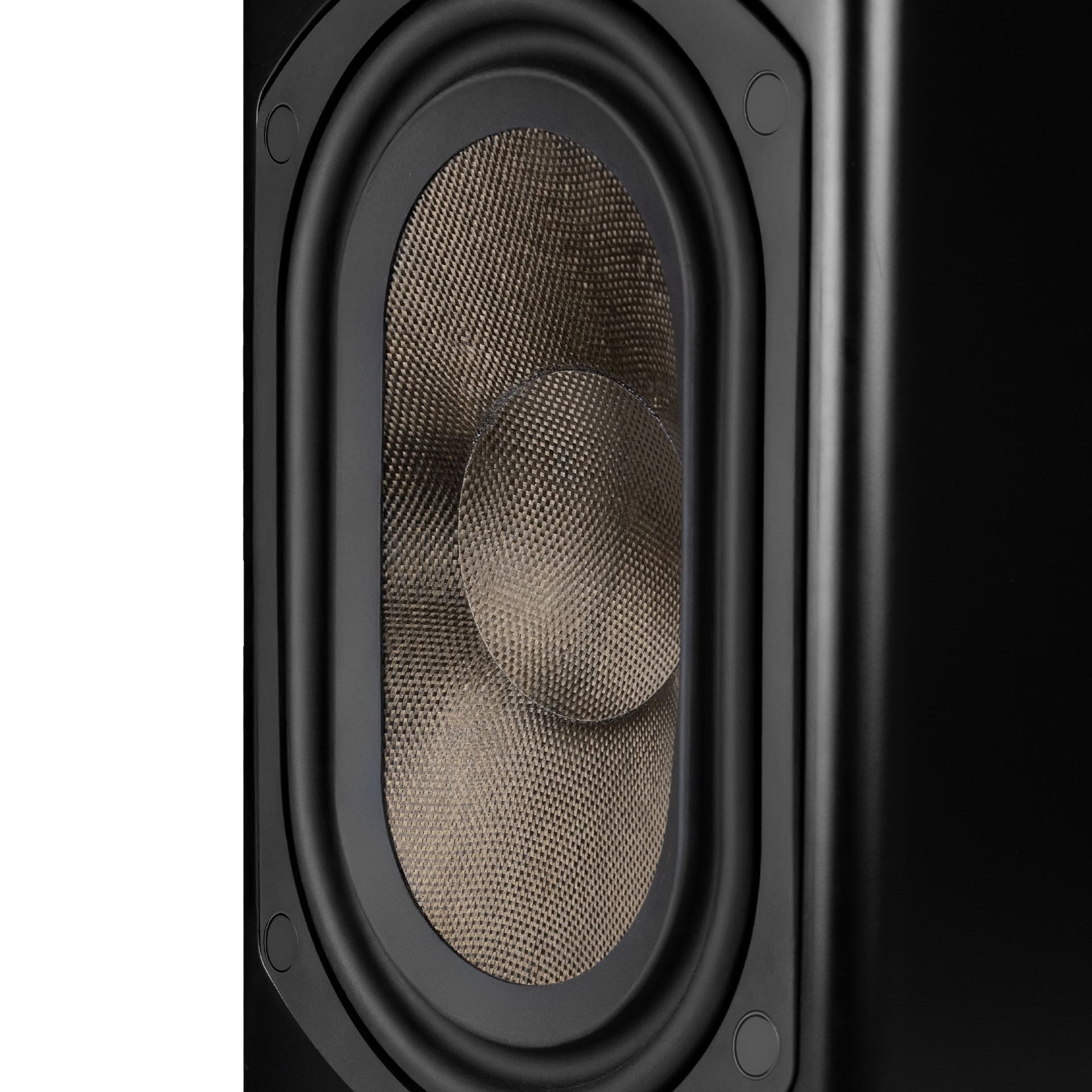

20 x 30 cm (8×12″) elliptical basalt composite subwoofer
Ultra-powerful Class D amplifier
Vertical or horizontal installation and stackable
Compatible with all Orchestra active speakers
► Technical characteristics
| Configuration | Subwoofer 200 x 300 mm (8×12’’) in basalt composite |
| Frequency response (+/- 3 dB) | 30 Hz – 200 Hz |
| Maximum power | 1000 W |
| RMS power | 500 W |
| Supply voltage | 220–240 V et 100–120 V |
| Inputs | RCA / BT |
| Automatic standby | After 30 minutes without reading, automatic standby wake-up |
| Type de charge | Bass reflex with front diffusion |
| Dimensions (L x H x P) et weight | 570 x 235 x 445 mm / 19,5 kg |
3 PRESET SETTINGS
Hi-fi mode
This listening favors neutrality and respect for timbres. DSP digital processing is not used in favor of passive filtering. Thus, we maintain the tonal balance of the product for a demanding hi-fi approach.
Mode Home Theatre
This mode was developed to provide you with the ideal cinematic sound experience. The focus here is on the low-frequency range, while highlighting dialogue and spatial effects. In addition, the stereo image is expanded using high-performance digital processing to maximize immersion.
Mode Power
If you want to use your speakers to play at high volume, this mode is ideal! By applying a cutoff frequency in the bass at 70Hz, the amplification is less requested for the benefit of a higher general gain. This dynamic listening is ideally accompanied by the addition wireless subwoofers for powerful bass.

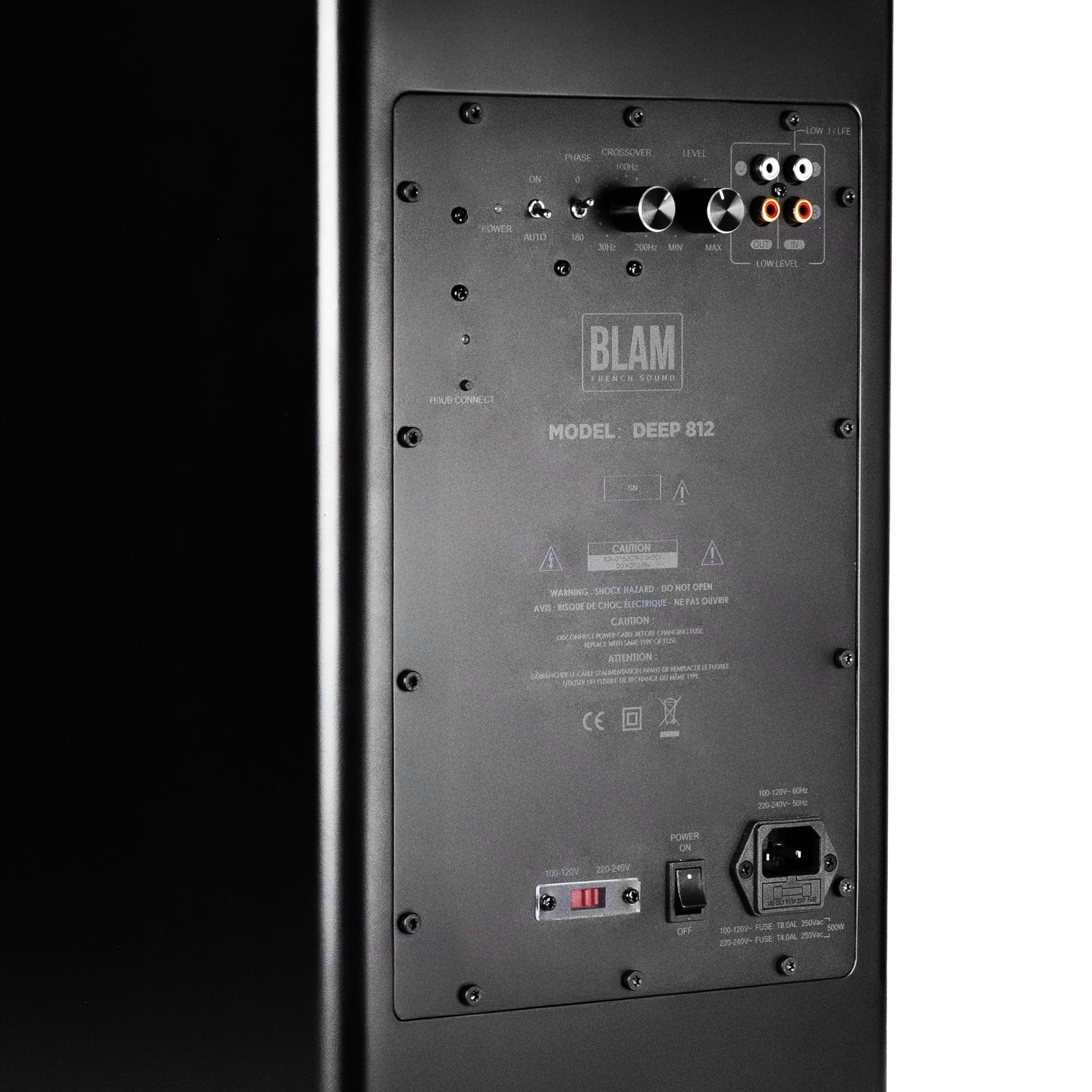

CONNECTORS
SUBWOOFER DEEP 812
20 x 30 cm (8×12″) elliptical basalt composite subwoofer
Ultra-powerful Class D amplifier
Vertical or horizontal installation and stackable
Compatible with all Orchestra active speakers
► Technical characteristics
| Configuration | Subwoofer 200 x 300 mm (8×12’’) in basalt composite |
| Frequency response (+/- 3 dB) | 30 Hz – 200 Hz |
| Maximum power | 1000 W |
| RMS power | 500 W |
| Supply voltage | 220–240 V et 100–120 V |
| Inputs | RCA / BT |
| Automatic standby | After 30 minutes without reading, automatic standby wake-up |
| Type de charge | Bass reflex with front diffusion |
| Dimensions (L x H x P) et weight | 570 x 235 x 445 mm / 19,5 kg |
3 PRESET SETTINGS
Hi-fi mode
This listening favors neutrality and respect for timbres. DSP digital processing is not used in favor of passive filtering. Thus, we maintain the tonal balance of the product for a demanding hi-fi approach.
Mode Home Theatre
This mode was developed to provide you with the ideal cinematic sound experience. The focus here is on the low-frequency range, while highlighting dialogue and spatial effects. In addition, the stereo image is expanded using high-performance digital processing to maximize immersion.
Mode Power
If you want to use your speakers to play at high volume, this mode is ideal! By applying a cutoff frequency in the bass at 70Hz, the amplification is less requested for the benefit of a higher general gain. This dynamic listening is ideally accompanied by the addition wireless subwoofers for powerful bass.
CONNECTORS
Downloads
our BLAM speakers
Our speaker design is based on a philosophy of neutrality and power, particularly in the mid-range frequency band. The objective is to study the speakers in order to obtain the most linear frequency response possible, with the aim of reproducing the most natural sound possible, without coloration. This natural linearity allows the use of simple filters with gentle attenuation slopes promoting a perfect fusion between the speakers. Each speaker has been developed to operate ideally in the volume of the speakers it integrates. The combination of generous motors with large diameter voice coils results in a high power handling of our products.
a simple connection
In their active version, these speakers integrate Class D amplification modules, designed around quality components. They connect directly to any source (TV, telephone, computer, etc.) and only require a simple mains power supply. Thanks to their complete connectivity (wireless, HDMI, optical or analog) you can manage all your sources on a single device. It is also possible to configure your system in wireless connection, with Sub Connect, whether to reinforce the impact of the bass or adapt your installation to the acoustics of your space.
a simple connection
In their active version, these speakers integrate Class D amplification modules, designed around quality components. They connect directly to any source (TV, telephone, computer, etc.) and only require a simple mains power supply. Thanks to their complete connectivity (wireless, HDMI, optical or analog) you can manage all your sources on a single device. It is also possible to configure your system in wireless connection, with Sub Connect, whether to reinforce the impact of the bass or adapt your installation to the acoustics of your space.
our BLAM speakers
Our speaker design is based on a philosophy of neutrality and power, particularly in the mid-range frequency band. The objective is to study the speakers in order to obtain the most linear frequency response possible, with the aim of reproducing the most natural sound possible, without coloration. This natural linearity allows the use of simple filters with gentle attenuation slopes promoting a perfect fusion between the speakers. Each speaker has been developed to operate ideally in the volume of the speakers it integrates. The combination of generous motors with large diameter voice coils results in a high power handling of our products.
| CATEGORIE | Home cinema, Subwoofer |
|---|---|
| COULEUR | |
| PLACEMENT | Floorstanding |
