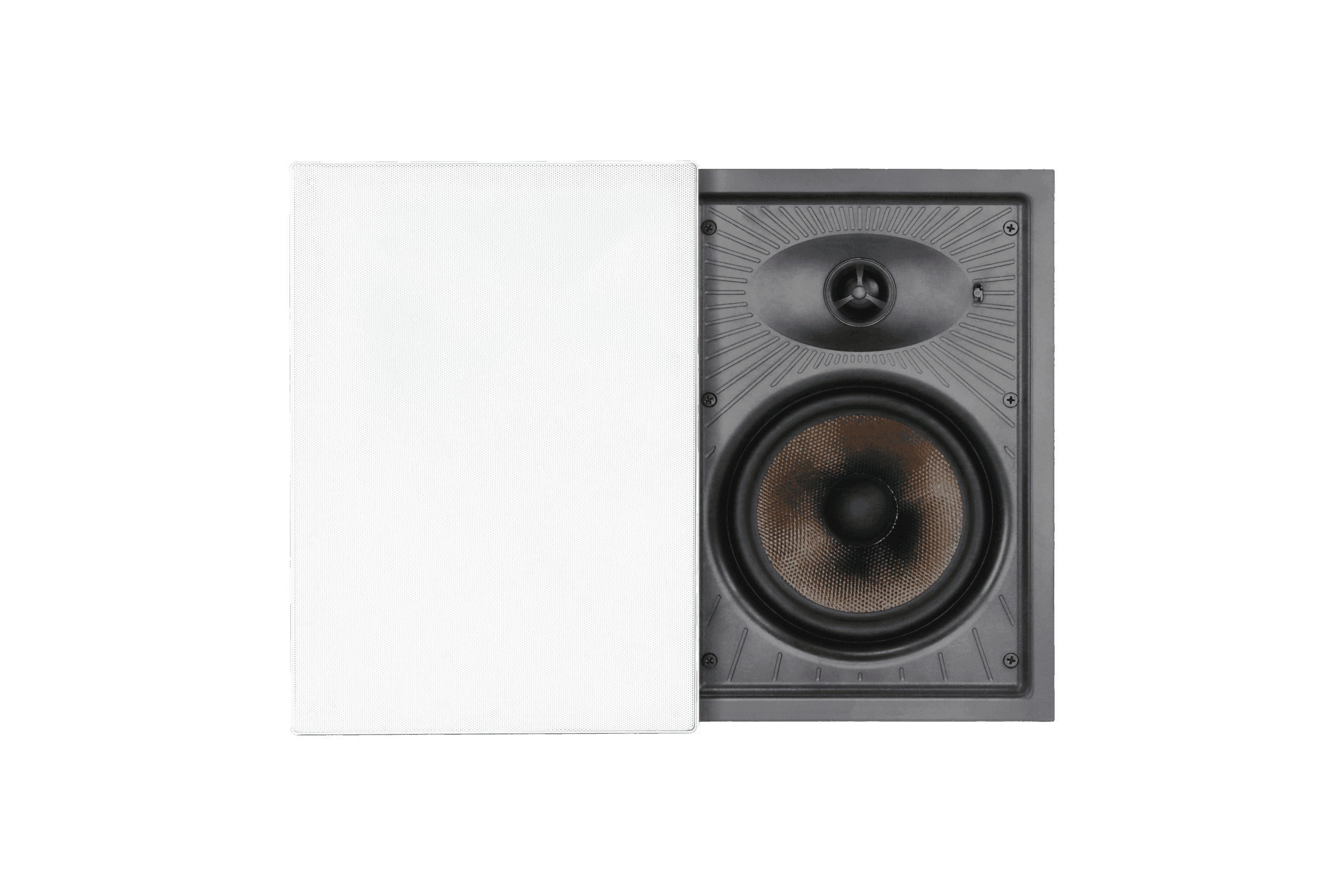

In-wall built-in speaker
The In-Wall speaker integrates discreetly into walls thanks to its paintable magnetic grille, offering a completely invisible installation. It features a basalt composite mid-bass driver and a flexible tweeter with adjustable gain (+3 / 0 / -3 dB), ensuring stable and precise sound reproduction even at high volumes. Suitable for residential and commercial environments (shops, hotels, offices, etc.), it delivers up to 120 W with an extended frequency response up to 20 kHz. Easy to install thanks to the included template, it combines discretion and high fidelity.
● Basalt mid-bass driver + adjustable flexible tweeter
● Maximum power: 120 W
● Frequency response up to 20 kHz
● Paintable magnetic grid and easy installation
● Discreet, powerful and high-fidelity sound
IN-WALL SPEAKER
165mm high-fidelity in-wall speaker with coaxial tweeter for rich and elegant sound reproduction
IN-WALL SPEAKER
165mm high-fidelity in-wall speaker with coaxial tweeter for rich and elegant sound reproduction
Composite basalt membrane
Adjustable tweeter level
Removable magnetic grid to paint
Ease of installation
► Technical characteristics
| Transducer | 165 mm mid-woofer + 25 mm tweeter |
| Crossover | Passive (Cutoff frequency: 3 kHz) |
| nominal impedance | 4 Ohms |
| Sensitivity | 89 dB/1W/1m |
| Maxiaml power | 120 W |
| RMS power | 60 W |
| Frequency response | 45 Hz – 20 kHz |
| External dimensions (L x H x P) | 210 x 310 x 100 mm |
| Recessed dimensions(L x H) | 185 x 285 mm |
| Recessed depth | 97,1 mm |
| Maximum thickness of the fixing plate | 29 mm |
| Net weight (with grid) | 2 kg |
Composite basalt membrane
Adjustable tweeter level
Removable magnetic grid to paint
Ease of installation
► Technical characteristics
| Transducer | 165 mm mid-woofer + 25 mm tweeter |
| Crossover | Passive (Cutoff frequency: 3 kHz) |
| nominal impedance | 4 Ohms |
| Sensitivity | 89 dB/1W/1m |
| Maxiaml power | 120 W |
| RMS power | 60 W |
| Frequency response | 45 Hz – 20 kHz |
| External dimensions (L x H x P) | 210 x 310 x 100 mm |
| Recessed dimensions(L x H) | 185 x 285 mm |
| Recessed depth | 97,1 mm |
| Maximum thickness of the fixing plate | 29 mm |
| Net weight (with grid) | 2 kg |
3 PRESET SETTINGS
Hi-fi mode
This listening favors neutrality and respect for timbres. DSP digital processing is not used in favor of passive filtering. Thus, we maintain the tonal balance of the product for a demanding hi-fi approach.
Mode Home Theatre
This mode was developed to provide you with the ideal cinematic sound experience. The focus here is on the low-frequency range, while highlighting dialogue and spatial effects. In addition, the stereo image is expanded using high-performance digital processing to maximize immersion.
Mode Power
If you want to use your speakers to play at high volume, this mode is ideal! By applying a cutoff frequency in the bass at 70Hz, the amplification is less requested for the benefit of a higher general gain. This dynamic listening is ideally accompanied by the addition wireless subwoofers for powerful bass.
CONNECTORS
3 PRESET SETTINGS
Hi-fi mode
This listening favors neutrality and respect for timbres. DSP digital processing is not used in favor of passive filtering. Thus, we maintain the tonal balance of the product for a demanding hi-fi approach.
Mode Home Theatre
This mode was developed to provide you with the ideal cinematic sound experience. The focus here is on the low-frequency range, while highlighting dialogue and spatial effects. In addition, the stereo image is expanded using high-performance digital processing to maximize immersion.
Mode Power
If you want to use your speakers to play at high volume, this mode is ideal! By applying a cutoff frequency in the bass at 70Hz, the amplification is less requested for the benefit of a higher general gain. This dynamic listening is ideally accompanied by the addition wireless subwoofers for powerful bass.
CONNECTORS
Downloads
our BLAM speakers
Our speaker design is based on a philosophy of neutrality and power, particularly in the mid-range frequency band. The objective is to study the speakers in order to obtain the most linear frequency response possible, with the aim of reproducing the most natural sound possible, without coloration. This natural linearity allows the use of simple filters with gentle attenuation slopes promoting a perfect fusion between the speakers. Each speaker has been developed to operate ideally in the volume of the speakers it integrates. The combination of generous motors with large diameter voice coils results in a high power handling of our products.
our BLAM speakers
Our speaker design is based on a philosophy of neutrality and power, particularly in the mid-range frequency band. The objective is to study the speakers in order to obtain the most linear frequency response possible, with the aim of reproducing the most natural sound possible, without coloration. This natural linearity allows the use of simple filters with gentle attenuation slopes promoting a perfect fusion between the speakers. Each speaker has been developed to operate ideally in the volume of the speakers it integrates. The combination of generous motors with large diameter voice coils results in a high power handling of our products.
| CATEGORIE | Home cinema |
|---|---|
| PLACEMENT | In wall |
| COULEUR |
