Double Side On Wall Speaker
The Double Side wall-mounted speaker is designed to efficiently fill large spaces with powerful and precise sound. Its configuration of two 165 mm (6.5″) woofers, with a central tweeter flanked by two midrange drivers, ensures excellent vocal clarity and balanced sound reproduction. Available in active (with integrated amplifier) or passive versions, it can also be used as a center speaker for accurate vocal reproduction.

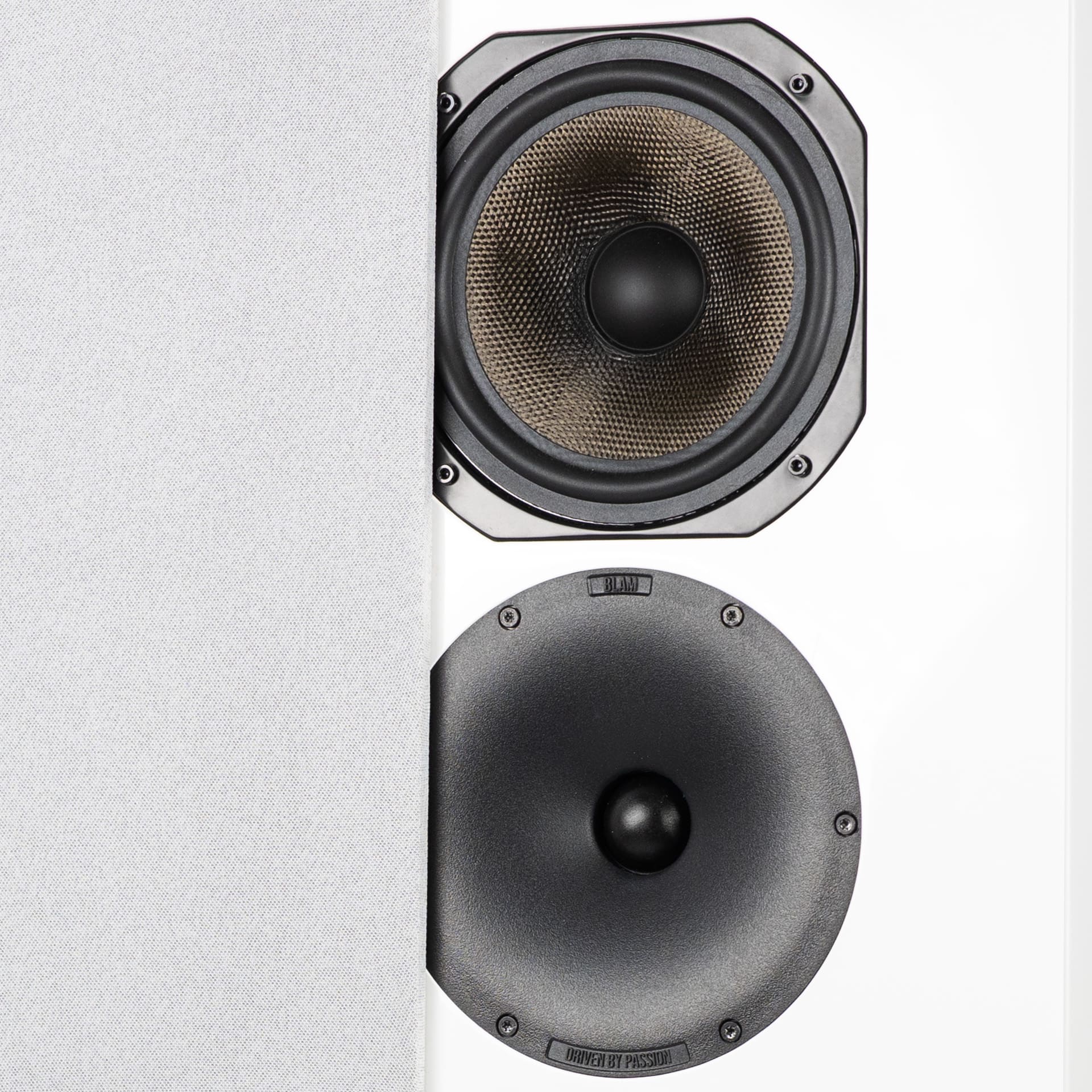

● 2 x 165 mm (6.5″) basalt composite woofers
● Central tweeter + dual midrange
● Bass frequencies down to 50 Hz
● Wide sound dispersion for large rooms
● Active or passive version
⌾ More than a sound, a sensation.
⌾ Natural and realistic voices.
♫ In-store listening
✔ Expertise developed since 2013
✔ Immersion thanks to the French Sound
Find a store
Audio Vidéo Saint Pierre
• Pontarlier 25300 – 10 rue de Besançon
• 09:00 – 12:00 | 14:00 – 19:00
• Tuesday to Saturday
• audiovideosaintpierre.fr
La Belle Écoute
• Essey-lès-Nancy 54270 – 4 Rue Catherine Sauvage
• 10:00 – 12:00 | 14:00 – 18:00
• Tuesday to Saturday
• labelleecoute.fr
Opus 51
• Champigny 51370 – 18 Rue du Vieux Four
• 09:30 – 18:30
• Tuesday to Saturday
• opus51.fr
Xtrem Screen DLF
• Ostwald 67540 – 3 Rue Pierre et Marie Curie
• 10:00 – 12:00
• Monday to Friday
• xtremscreen.com
La Belle Écoute
• Thionville 57100 – 4 Rue Abel Gance
• 10:00 – 12:00 | 14:00 – 18:00
• Tuesday to Saturday
• labelleecoute.fr
JL ACOUSTIQUE
• Bouzonville 57320 – 13C rue de France
• 10:00 – 18:00
• Tuesday to Saturday
• jlacoustique.fr
Caractéristiques
High performance basalt composite membrane
Sound immersion even in large interiors
Standalone speaker with integrated amplifier
Wirelessly compatible with all Orchestra subwoofers
► Technical characteristics
| Power (RMS) | 2 x 90 W |
| Power supply | 220–240 V and 100–120 V |
| modes | 3 preset settings : Hifi, Home Theater, Power |
| Speakers: | 1 x 30 mm (1″) horn tweeter 2 x 165 mm (6.5″) woofer |
| Frequency response (+/- 3 dB) | 50 Hz – 25 kHz |
| Load type | Closed enclosure |
| Sensitivity | 91 dB/W/m |
| nominal impedance | 4 Ohms |
| Entries | HDMI (ARC) / Optique / Bluetooth / Ligne (RCA) |
| Subwoofer Outputs | RCA or Wireless |
| Standby consumption | < 0,5 W |
| Automatic sleep | After 30 minutes of non-playback, automatic wake-up |
| Dimensions (with tissue holder) | 690 x 300 x 105 mm |
| Weight | 9 kg |
3 PRESET SETTINGS
Hi-fi mode
This listening prioritizes neutrality and respect for timbres. DSP digital processing is not used in favor of passive filtering. Thus, we maintain the tonal balance of the product for a demanding hi-fi approach.
Mode Home Theatre
This mode was developed to provide you with the ideal cinematic sound experience. The focus here is on the low-frequency range, while highlighting dialogue and spatial effects. In addition, the stereo image is expanded using high-performance digital processing to maximize immersion.
Mode Power
If you want to play louder with your speakers, this mode is ideal! By applying a 70Hz bass cutoff frequency, the amplification is less stressed in favor of a higher overall gain. This dynamic listening is ideally accompanied by the addition of wireless subwoofers for powerful bass.
CONNECTORS
High performance basalt composite membrane
Easy integration even in small interiors
Can be used as a main speaker or effects speaker
► Technical characteristics
| Speakers: | 1 x 30 mm (1″) horn tweeter 2 x 165 mm (6.5″) woofer |
| Maximum admissible power | 200W |
| Recommended amplifier output power | 50 – 200 W |
| Frequency response (+/- 3 dB) | 50 Hz – 25 kHz |
| Load type | Closed enclosure |
| Sensitivity | 91 dB/W/m |
| nominal impedance | 4 Ohms |

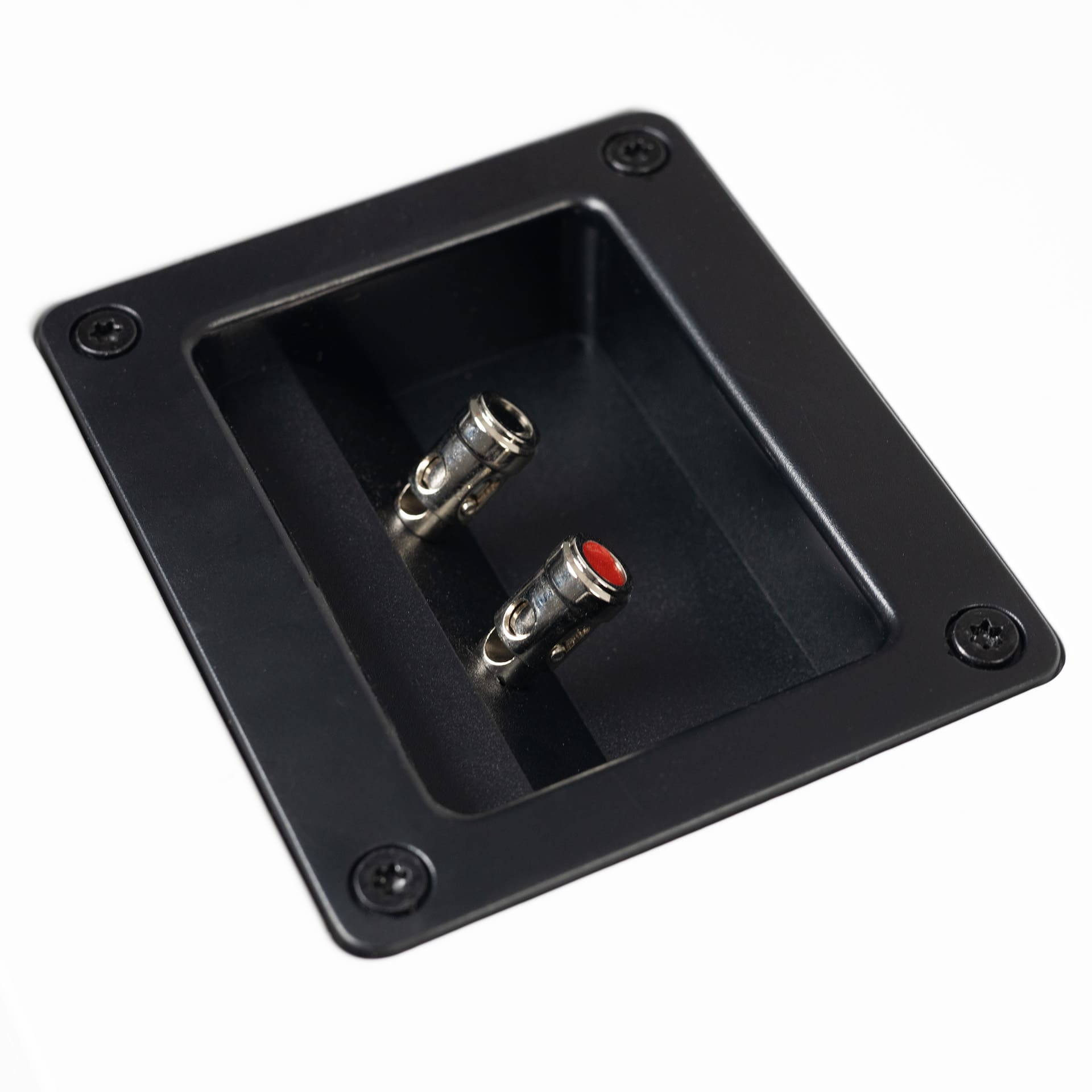

| Inputs | Push terminal block |
| Dimensions (with tissue holder) | 690 x 300 x 105 mm |
| Weights | 8 kg |
Downloads
a simple connection
In their active version, the speakers integrate Class D amplification modules, designed around quality components. They connect directly to any source (TV, telephone, computer, etc.) and only require a simple mains power supply. Thanks to their complete connectivity (wireless, HDMI, optical or analog) you can manage all your sources on a single device. It is also possible to configure your system in wireless connection, with Sub Connect, whether to reinforce the impact of the bass or adapt your installation to the acoustics of your space.
our BLAM speakers
Our speaker design is based on a philosophy of neutrality and power, particularly in the mid-range frequency band. The objective is to study the speakers in order to obtain the most linear frequency response possible, with the aim of reproducing the most natural sound possible, without coloration. This natural linearity allows the use of simple filters with gentle attenuation slopes promoting a perfect fusion between the speakers. Each speaker has been developed to operate ideally in the volume of the speakers it integrates. The combination of generous motors with large diameter voice coils results in a high power handling of our products.
Thanks to their multiple attachment points, you can install the speakers both vertically and horizontally
Downloads
Thanks to their multiple attachment points, you can install them both vertically and horizontally.
our BLAM speakers
Our speaker design is based on a philosophy of neutrality and power, particularly in the mid-range frequency band. The objective is to study the speakers in order to obtain the most linear frequency response possible, with the aim of reproducing the most natural sound possible, without coloration. This natural linearity allows the use of simple filters with gentle attenuation slopes promoting a perfect fusion between the speakers. Each speaker has been developed to operate ideally in the volume of the speakers it integrates. The combination of generous motors with large diameter voice coils results in a high power handling of our products.
a simple connection
In their active version, these speakers integrate Class D amplification modules, designed around quality components. They connect directly to any source (TV, telephone, computer, etc.) and only require a simple mains power supply. Thanks to their complete connectivity (wireless, HDMI, optical or analog) you can manage all your sources on a single device. It is also possible to configure your system in wireless connection, with Sub Connect, whether to reinforce the impact of the bass or adapt your installation to the acoustics of your space.
