KIT L 165 PRO C

KIT L 165 PRO C

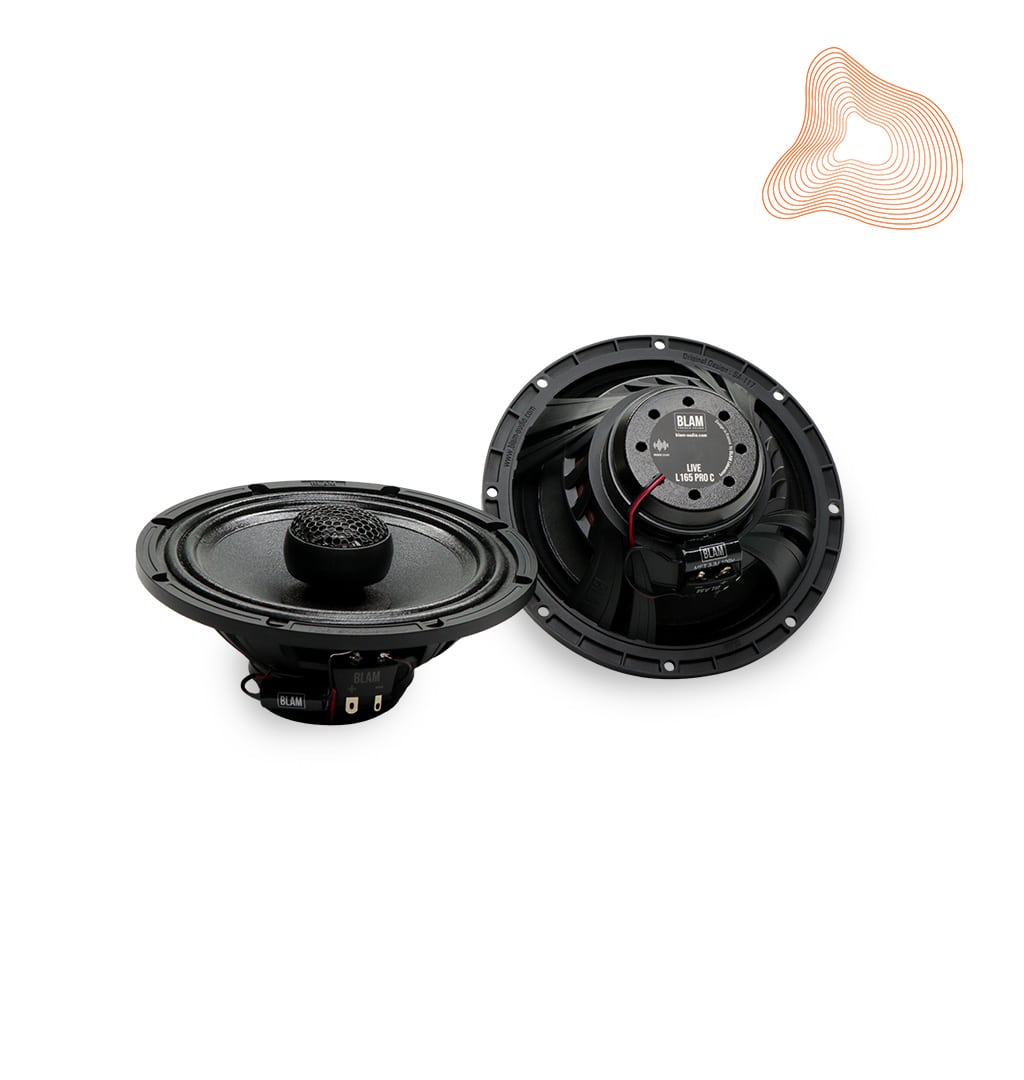

The L165 PRO C kit is a high-performance 165mm coaxial speaker capable of delivering up to 200W with a high sensitivity of 95 dB. It combines a woofer with a cellulose pulp cone and a 25mm titanium tweeter in a coaxial configuration, both equipped with powerful neodymium magnets, for accurate and dynamic sound reproduction. A 6 dB/octave high-pass filter is integrated for simple and efficient installation.

VIEW DISTRIBUTORS

KIT L 165 PRO C – high-performance coaxial kit

Max power 200 W – Nominal power 100 W

Frequency response 90 Hz – 25 Hz

Impedance 4 Ohms – Sensitivity 95 dB



TECHNICAL CHARACTERISTICS

  • Woofer 6.5‘‘ (165 mm)

Glass fiber reinforced composite salad bowl

High quality treated cellulose pulp membrane

Peripheral butyl surround

Spider long life “Conex

39 mm coil on Kapton support

Ultra-powerful 70 x 7 mm neodymium motor



  • Tweeter coaxial

25 mm coaxial titanium dome tweeter

N38 neodymium push-pull motor



  • Built-in 6 dB/octave high-pass filter



TECHNICAL DATA SHEET :

Icon

L165 PRO C

1 file(s) 939.23 KB
Download
