LIVE L165A – Acoustic

Description

Technical details

With its “French Sound” design, the L165A faithfully reproduces acoustic instruments and the emotions of voices for a particularly natural and captivating sound.

Its light and rigid composite diaphragm combined with a 28 mm diameter coil gives it dynamism and detail that brings the recording to life. The system is forgotten to make room for the music.

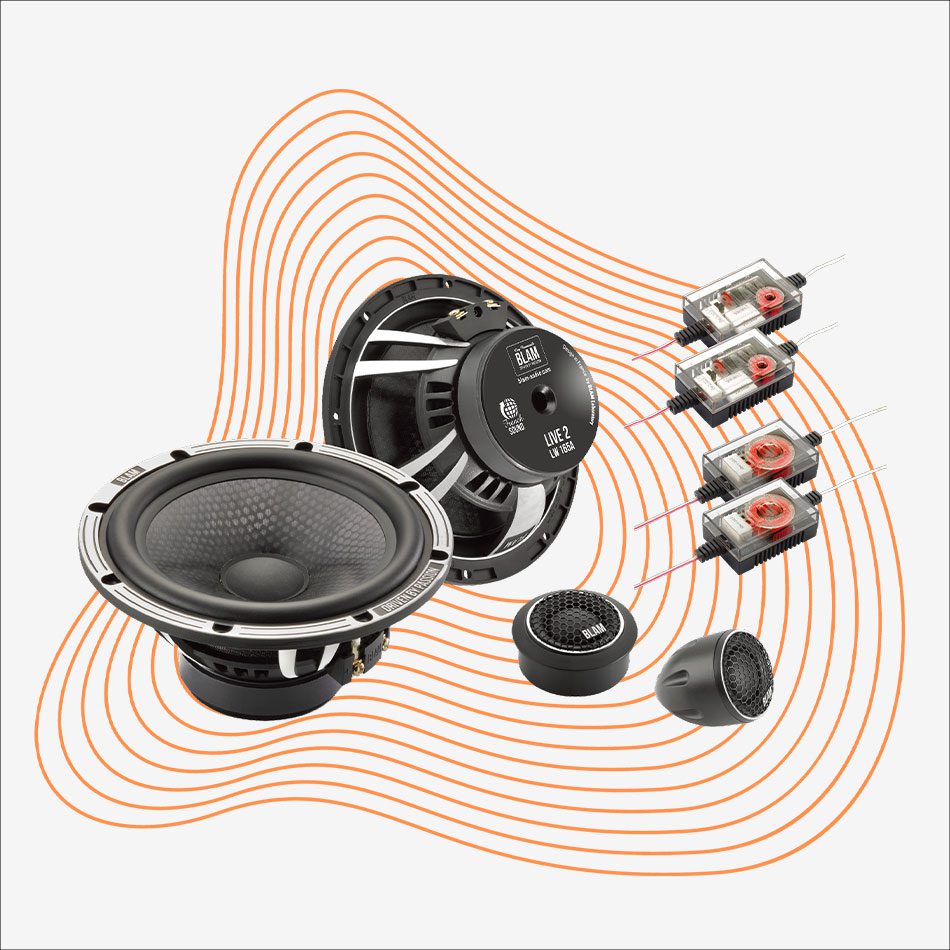

This kit is composed of two 165mm (6,5”) woofers, two 25mm (1”) soft dome tweeters, two 12db/octave low-pass audiophile filters and two 12dB/octave high-pass audiophile filters, adapted for bi-amplification.

2-channel high-fidelity system
165 mm woofer
Max Power 140 W – Nominal Power 70 W
Frequency response 55 Hz – 25 kHz
Sensitivity 92 dB – Impedance 2 Ω



Available in 2 versions:
L165A (complete kit with filters)
L165A Active (without filter)

Also available in BLACK Edition (black woofers and tweeters)



Composition

L165A HIGH FIDELITY WOOFER
165 mm (6.5″) woofer
Max power 140 W / Nominal power 70 W
Frequency response 55 Hz – 9 kHz
Sensitivity 92.8 dB – Impedance 2 Ω
Moulded and machined aluminium saladier – Epoxy resin and fiberglass diaphragm – Butyl peripheral suspension – “Conex” long life spider – 28 mm coil on Kapton support – 80 mm x 15 mm magnetic motor – 5 mm thick magnetic circuit



LT25 HIGH QUALITY TWEETER
High quality 25 mm soft dome tweeter
Maximum power 100 W – Nominal power 15 W
Frequency response 2.5 kHz – 25 kHz
Sensitivity 91.6 dB – Impedance 3 Ω
High efficiency neodymium motor N38



BFW02 HIGH QUALITY FILTER
Low pass 12 dB/octave



BFT02 HIGH QUALITY FILTER
High pass 12 dB/octave
Tweeter level adjustable to +3 dB, 0 dB or attenuated to -3 dB



Accessories included:
Fixing screws
Mounting accessories for tweeters
Instructions for use
