Kit 165R3

Description

3 (2+1) SEPARATE-CHANNEL LOUDSPEAKER SYSTEM

Technical details

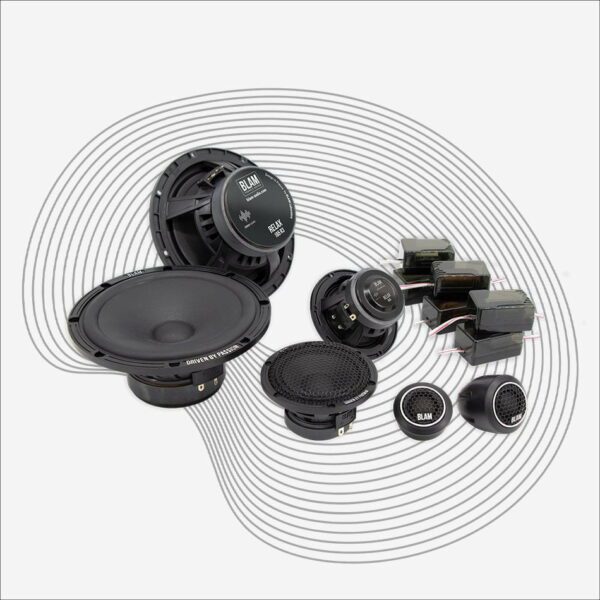

This kit includes two 165mm (6.5″) woofers, two 80mm (3″) midrange drivers, two 20mm (3/4″) soft-dome tweeters and six separate crossovers.

High performance 3-way split system 165 mm
Max Power 150 W – Nominal Power 75 W
Frequency response 60 Hz – 25 kHz
Sensitivity 95 dB – Impedance 2 Ω

Composition

• 165R3 WOOFER 165 MM
  165 mm (6.5”) woofer
  Maximum power 150 W / Rated power 75 W
  Frequency response 60 Hz – 8 kHz
  Sensitivity 95 dB – Impedance 2 Ω


Fiberglass-reinforced composite saladier – High-quality treated cellulose pulp diaphragm – Butyl peripheral suspension – “Conex” long-life spider – Magnetic motor Long-life “Conex” spider – 25 mm coil on Kapton support – 85 mm x 17 mm magnetic motor – Thick magnetic circuit (5 mm)

• R80 MEDIUM SPEAKER 80 MM
  Max Power 100 W – Nominal Power 25 W*.
  Frequency response 150 Hz – 23 kHz
  Sensitivity 86 dB – Impedance 3 Ω
  Mounting depth 45.5 mm (1.8″)

Glass fiber reinforced composite bowl – High quality cellulose pulp membrane – Peripheral butyl suspension – Long life spider “Conex” – 20 mm coil on fiberglass support – 55 mm x 10 mm ferrite motor

• R2T20 SOFT DOME TWEETER
  High quality 20 mm soft dome tweeter
  Maximum power 100 W / Rated power 10 W
  Frequency response 2.5 kHz – 25 kHz
  Sensitivity 90 dB – Impedance 3 Ω

N38 neodymium motor – Special high-quality soft dome – Ferrofluid for high power output

• FILTERS
  2 x 6 dB/octave woofer low-pass filters: BFR3-W
  2 medium high-pass filters 6 dB/octave : BFR3-M
  2 high-pass filters tweeter 6 dB/octave : BFR3-T
  Tweeter level adjustable to 0 dB or attenuated to -3 dB

Accessories included:
Fixing screws
Mounting accessories for tweeters – Including tilted bracket
Instructions for use
