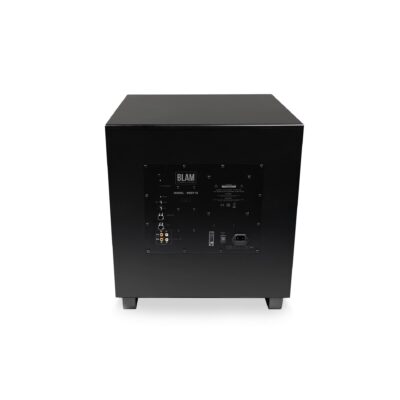

Subwoofer Deep 15
The Deep 15 is an active subwoofer designed for those looking for deep, sustained bass. Equipped with a 38 cm (15″) subwoofer, it delivers a maximum power of 2000 W and goes down to 22 Hz, for ultra-deep bass even at low volume. Its configuration is customizable since it can be stacked with other Deep 15s and adapts to any installation to multiply the sound impact, worthy of the best cinemas or concert halls. Thanks to its down-fi ring configuration, the Deep 15 diffuses sound waves towards the floor, ensuring a homogeneous and balanced diffusion throughout the space. This type of diffusion naturally limits distortion thanks to a low-pass filter, which promotes a more precise sound immersion. The waves quickly reach the ear, making the bass more enveloping.
ACTIVE SUBWOOFER

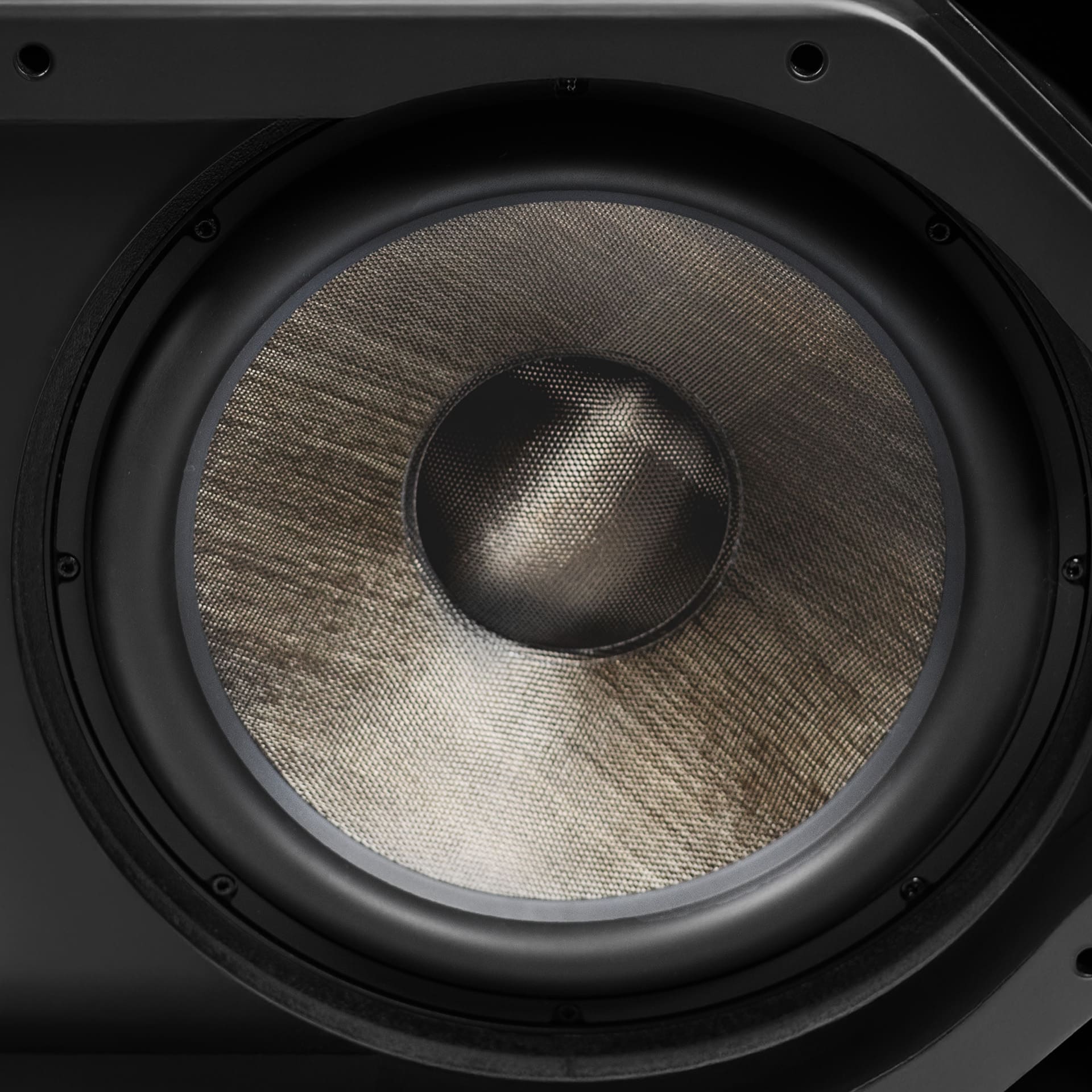

38 cm (15″) basalt composite subwoofer
Ultra-powerful Class D amplifier
► Technical characteristics
| Power (RMS) | 1000 W |
| Power supply | 220–240 V and 100–120 V |
| modes | 3 preset settings : Hifi, Home Theater, Power |
| Speakers | Subwoofer 380 mm (15″)|
| Frequency response (+/- 3 dB) | 22 Hz – 200 Hz |
| Type de charge | Bass reflex with downward diffusion |
| Sensitivity | 88 dB/W/m |
| Inputs | RCA or BT |
| Standby consumption | < 0,5 W |
| Automatic sleep | After 30 minutes of non-playback, automatic wake-up |
| Dimensions (avec porte-tissu) | 500 x 500 x 555 mm |
| Weight | 45,5 Kg |
Stackable system
Wirelessly compatible with all Orchestra subwoofers
a simple connection
In their active version, these speakers integrate Class D amplification modules, designed around quality components. They connect directly to any source (TV, telephone, computer, etc.) and only require a simple mains power supply. Thanks to their complete connectivity (wireless, HDMI, optical or analog) you can manage all your sources on a single device. It is also possible to configure your system in wireless connection, with Sub Connect, whether to reinforce the impact of the bass or adapt your installation to the acoustics of your space.
our BLAM speakers
Our speaker design is based on a philosophy of neutrality and power, particularly in the mid-range frequency band. The objective is to study the speakers in order to obtain the most linear frequency response possible, with the aim of reproducing the most natural sound possible, without coloration. This natural linearity allows the use of simple filters with gentle attenuation slopes promoting a perfect fusion between the speakers. Each speaker has been developed to operate ideally in the volume of the speakers it integrates. The combination of generous motors with large diameter voice coils results in a high power handling of our products.
3 PRESET SETTINGS
Hi-fi mode
This listening favors neutrality and respect for timbres. DSP digital processing is not used in favor of passive filtering. Thus, we maintain the tonal balance of the product for a demanding hi-fi approach.
Mode Home Theatre
This mode was developed to provide you with the ideal cinematic sound experience. The focus here is on the low-frequency range, while highlighting dialogue and spatial effects. In addition, the stereo image is expanded using high-performance digital processing to maximize immersion.
Mode Power
If you want to use your speakers to play at high volume, this mode is ideal! By applying a cutoff frequency in the bass at 70Hz, the amplification is less requested for the benefit of a higher general gain. This dynamic listening is ideally accompanied by the addition wireless subwoofers for powerful bass.

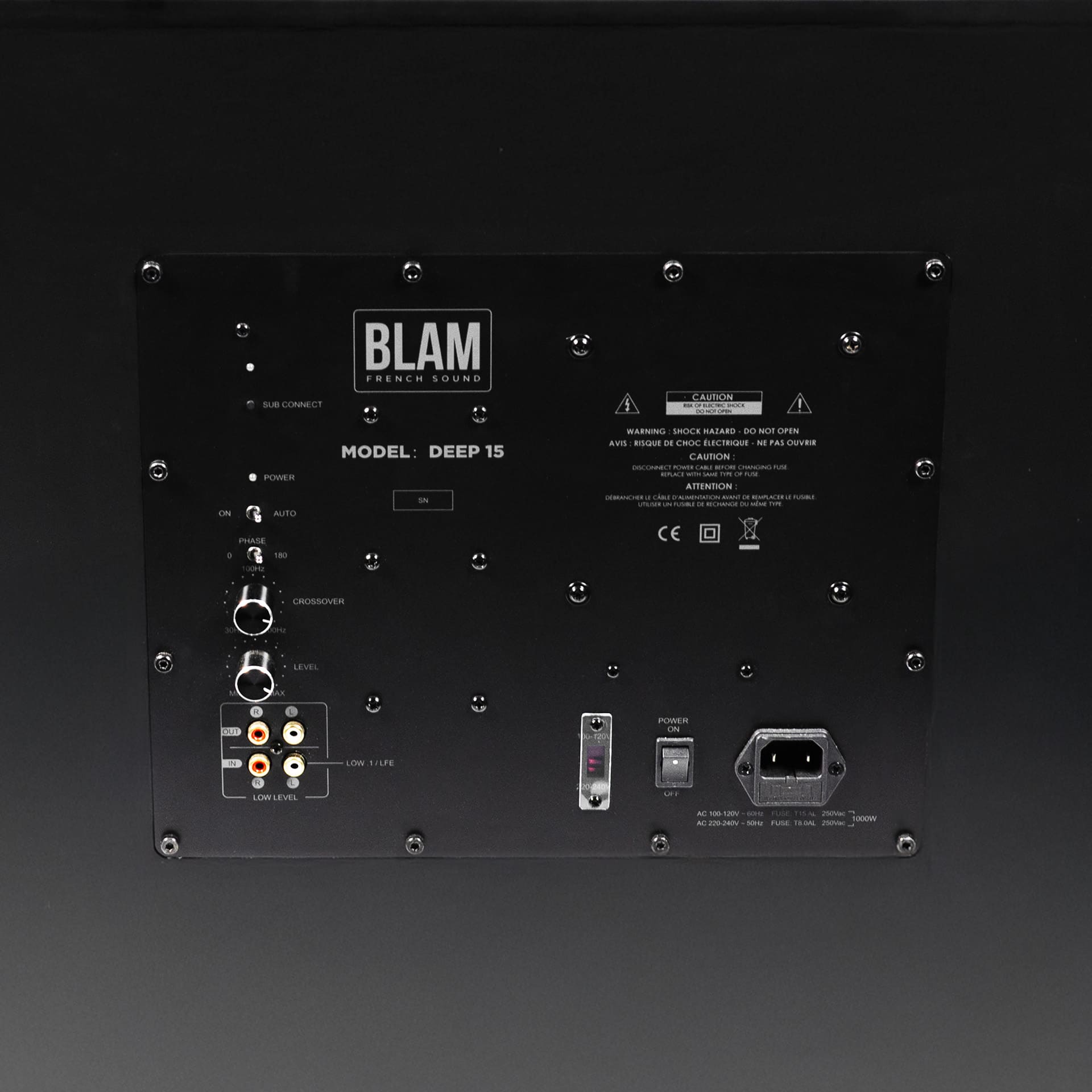

CONNECTORS
TECHNICAL SHEETS
ACTIVE SUBWOOFER
38 cm (15″) basalt composite subwoofer
Ultra-powerful Class D amplifier
Stackable system
Wirelessly compatible with all Orchestra subwoofers
► Technical characteristics
| Power (RMS) | 1000 W |
| Power supply | 220–240 V and 100–120 V |
| modes | 3 preset settings : Hifi, Home Theater, Power |
| Speakers | Subwoofer 380 mm (15″)|
| Frequency response (+/- 3 dB) | 22 Hz – 200 Hz |
| Type de charge | Bass reflex with downward diffusion |
| Sensitivity | 88 dB/W/m |
| Inputs | RCA or BT |
| Standby consumption | < 0,5 W |
| Automatic sleep | After 30 minutes of non-playback, automatic wake-up |
| Dimensions (avec porte-tissu) | 500 x 500 x 555 mm |
| Weight | 45,5 Kg |
our BLAM speakers
Our speaker design is based on a philosophy of neutrality and power, particularly in the mid-range frequency band. The objective is to study the speakers in order to obtain the most linear frequency response possible, with the aim of reproducing the most natural sound possible, without coloration. This natural linearity allows the use of simple filters with gentle attenuation slopes promoting a perfect fusion between the speakers. Each speaker has been developed to operate ideally in the volume of the speakers it integrates. The combination of generous motors with large diameter voice coils results in a high power handling of our products.
a simple connection
In their active version, these speakers integrate Class D amplification modules, designed around quality components. They connect directly to any source (TV, telephone, computer, etc.) and only require a simple mains power supply. Thanks to their complete connectivity (wireless, HDMI, optical or analog) you can manage all your sources on a single device. It is also possible to configure your system in wireless connection, with Sub Connect, whether to reinforce the impact of the bass or adapt your installation to the acoustics of your space.
3 PRESET SETTINGS
Hi-fi mode
This listening favors neutrality and respect for timbres. DSP digital processing is not used in favor of passive filtering. Thus, we maintain the tonal balance of the product for a demanding hi-fi approach.
Mode Home Theatre
This mode was developed to provide you with the ideal cinematic sound experience. The focus here is on the low-frequency range, while highlighting dialogue and spatial effects. In addition, the stereo image is expanded using high-performance digital processing to maximize immersion.
Mode Power
If you want to use your speakers to play at high volume, this mode is ideal! By applying a cutoff frequency in the bass at 70Hz, the amplification is less requested for the benefit of a higher general gain. This dynamic listening is ideally accompanied by the addition wireless subwoofers for powerful bass.
CONNECTORS
TECHNICAL SHEETS
| CATEGORIE | Passive, Subwoofer |
|---|---|
| COULEUR | |
| PLACEMENT | Floorstanding |
